Description

Price

10

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

415130261

$3.00

10n

RH Engine Support

518325559

$19.49

10q

LH Stirup

518326820

$37.99

10x

Panel Nut M5 X 0.8

250000958

$4.23

10t

Support

518326960

$12.99

10v

Tork Screw M6 X 18

250000536

$2.11

10w

Flat Washer

250200039

$0.74

10aa

Attach | Includes 10n to 10p

518326986

$12.99

10ab

Clinch Stud M6 X 20

250300027

$2.09

10ac

Elastic Stop Nut M6

232561414

$0.55

10ad

Torx Screw M8 X 55

250000535

$3.17

10ba

RH Reinforcement

518324874

$27.99

10ba

LH Reinforcement

518324875

$27.99

10bb

RH Slide Bracket

518325955

$45.99

10bc

LH Slide Bracket

518325956

$49.99

10bd

RH Rear Base

518325973

$21.99

10be

LH Rear Base | Includes 10v to 10x

518325974

$21.99

10bf

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

10bg

LH Roller | Includes 10bd to 10be

518325160

$78.99

10bh

Clinch Stud

250300038

$4.29

10bj

Clinch Stud M6 X 20

250300027

$2.09

10bk

Seal

518326656

$9.19

10bm

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

10bn

Stavex Rivet

293150144

$0.82

10br

Rear Cap

518327105

$22.49

10bs

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

10bt

Avex Rivet

390909200

$0.30

10bu

Full Moon Dart 5 mm

293730042

$2.21

10bv

Rivet Avibulb 3/16

293150203

$2.09

10bw

Avex Rivet

390909100

$0.30

10bx

Stavex Rivet

293150144

$0.82

10by

Henrob Rivet

293150146

$2.09

10bz

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10ca

Hemlock Rivet, 6.4 mm

293150174

$7.86

10cb

U-Attach

518326961

$10.99

10cc

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10cd

Tork Screw M6 X 16

250000534

$2.11

10ce

Hex. Flange Nut M6

233061414

$1.68

30

Pop Rivet 3/16"

390402400

$0.35

100

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

110

Collar Huck Magna-Grip 6.4

293150149

$0.48

120

RH Deflector, Black Polypropylene

518325782

$13.99

130

LH Deflector, Black Polypropylene

518325783

$13.99

140

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

150

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

170

Hemlock Rivet, 6.4 mm

293150174

$7.86

1300a

Black Rear Bumper, 154"

518326611

$111.99

1300b

Black RH Cap

520000965

$11.49

1300c

Black LH Cap

520000964

$11.49

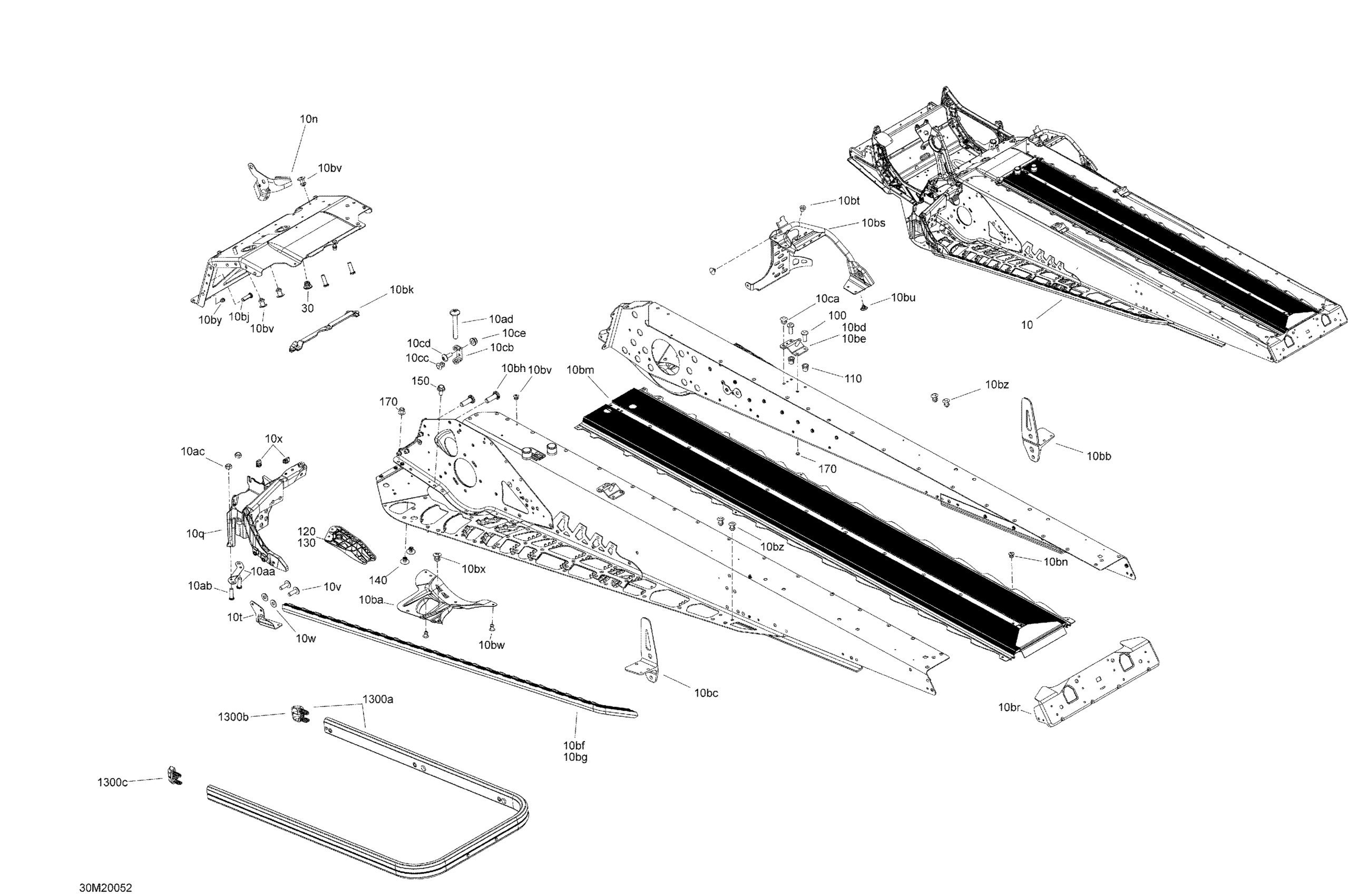

Ski-Doo 002 - TUNDRA 600HO E-TEC - North America, 2020 09- Frame - Rear Section Diagram

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

RH Engine Support

LH Stirup

Panel Nut M5 X 0.8

Support

Tork Screw M6 X 18

Flat Washer

Attach | Includes 10n to 10p

Clinch Stud M6 X 20

Elastic Stop Nut M6

Torx Screw M8 X 55

RH Reinforcement

LH Reinforcement

RH Slide Bracket

LH Slide Bracket

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH ROLLER - Call your local BRP dealership

LH Roller | Includes 10bd to 10be

Clinch Stud

Clinch Stud M6 X 20

Seal

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

Stavex Rivet

Rear Cap

RH Stirup | Includes 10aa to 10ab

Avex Rivet

Full Moon Dart 5 mm

Rivet Avibulb 3/16

Avex Rivet

Stavex Rivet

Henrob Rivet

Ornit Rivet 6,5 X 14.5

Hemlock Rivet, 6.4 mm

U-Attach

Ornit Rivet 6,5 X 14.5

Tork Screw M6 X 16

Hex. Flange Nut M6

Pop Rivet 3/16"

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

Hex. Flange Screw M6 X 12, Scotch Grip

Hemlock Rivet, 6.4 mm

Black Rear Bumper, 154"

Black RH Cap

Black LH Cap
