Description

Price

10

Hood

517306313

$309.99

20

Foam Hood

517304877

$28.99

30

Tuflok Plastic Rivet

293150230

$1.47

40

RH Hood Grille

517303805

$31.99

50

LH Hood Grille

517303804

$31.99

60

RH Lateral Hood Grille

517304279

$35.99

65

Foam Hood

517304878

$14.99

80

Foam Hood

517304879

$14.49

190

Deep Black, Cap Console

517304027

$15.49

200

Console

517305015

$219.99

210

Console Nut

517306602

$13.49

400

Black, RH Console

517304701

$19.49

420

Screw M4 X 16

250000725

$3.49

600

Indicator Support

517306222

$92.99

800a

Low Windshield (250)

517303888

$180.99

800b

LOW WINDSHIELD SUPPORT - Call your local BRP dealership

860200228

Unavailable

800c

Push Nut

732610072

$2.19

810

Grommet

517303756

$4.09

1000

RH Panel

517305016

$214.99

1010

RH Insert

517304090

$28.99

1020

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1030

Washer

517124300

$0.19

1050

Foam

517304870

$28.99

1055

Foam

517304871

$16.49

1060

Foam

517304872

$14.49

1065

Foam

517304873

$14.49

1070

Foam

517304876

$16.49

1200

LH Panel

517305711

$214.99

1210

LH Panel Insert

517304092

$28.99

1220

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1230

Washer

517124300

$0.19

1250

Foam

517304874

$28.99

1255

Foam

517304875

$16.49

1400

Rear Panel Latch

517304999

$19.99

1410

Pop Rivet 3/16”

293150108

$1.19

1600

Center Panel Latch

517304093

$17.99

1800

Front Latch Panel

517305186

$24.49

1810

Anchor Link

517304320

$14.99

1820

Pop Rivet 3/16"

293150014

$1.09

1830

Washer

517124300

$0.19

2400

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

2400a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2400b

Cap

515176498

$12.99

2400c

Rubber Cap Protector

219800280

$19.49

2410

Torx Truss Screw M6 X 20

250000705

$2.11

2420

Panel Nut M6 X 1.0

250100198

$2.11

2600

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

2600a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2600b

Cap

515176498

$12.99

2600c

Rubber Cap Protector

219800280

$19.49

2610

Torx Truss Screw M6 X 20

250000705

$2.11

2620

Panel Nut M6 X 1.0

250100198

$2.11

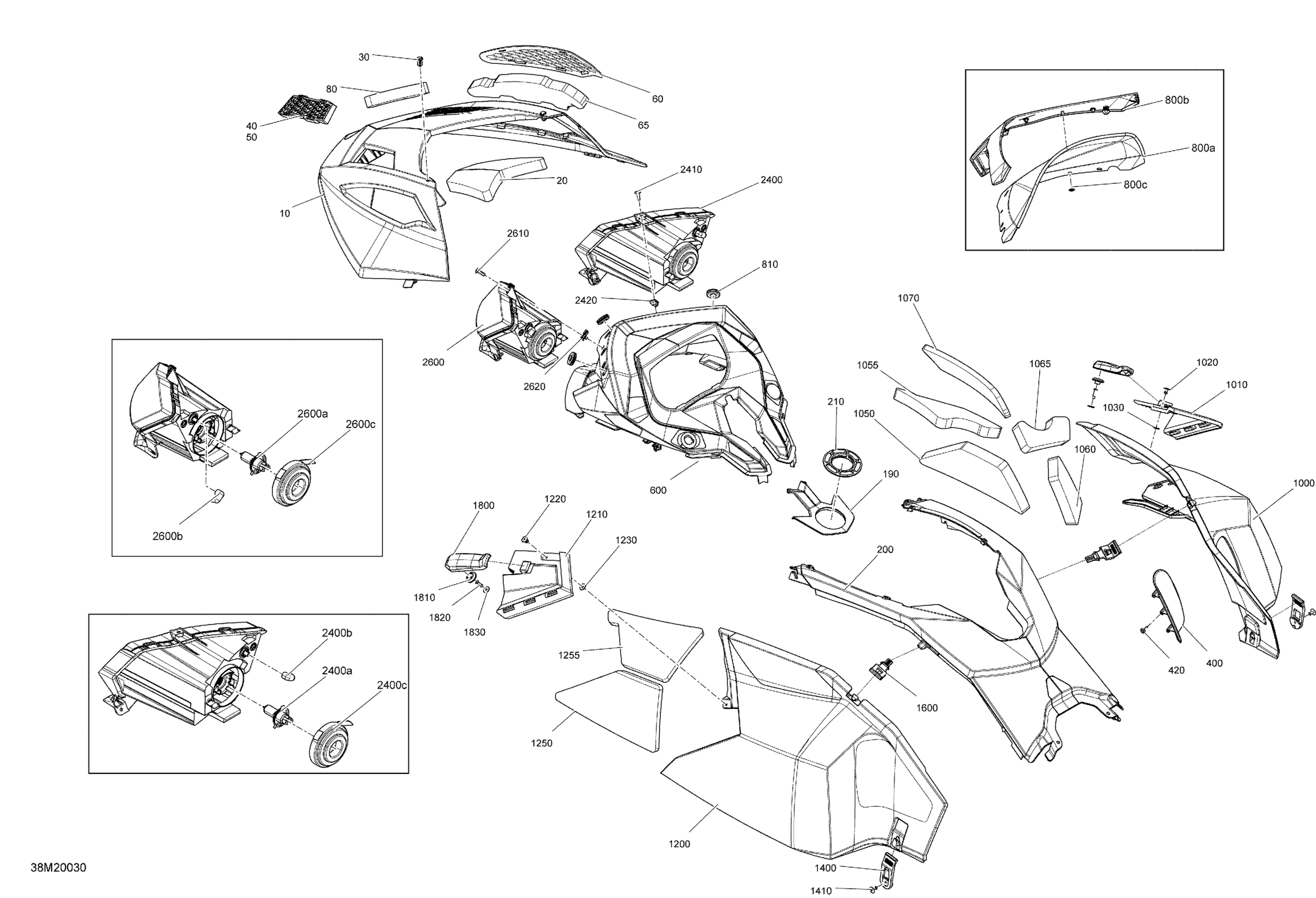

Ski-Doo 002 - TUNDRA 600HO E-TEC - North America, 2020 09- Body - Hood Section Diagram

Hood

Foam Hood

Tuflok Plastic Rivet

RH Hood Grille

LH Hood Grille

RH Lateral Hood Grille

Foam Hood

Foam Hood

Deep Black, Cap Console

Console

Console Nut

Black, RH Console

Screw M4 X 16

Indicator Support

Low Windshield (250)

LOW WINDSHIELD SUPPORT - Call your local BRP dealership

Push Nut

Grommet

RH Panel

RH Insert

Pop Rivet 3/16" | DS 650 X

Washer

Foam

Foam

Foam

Foam

Foam

LH Panel

LH Panel Insert

Pop Rivet 3/16" | DS 650 X

Washer

Foam

Foam

Rear Panel Latch

Pop Rivet 3/16”

Center Panel Latch

Front Latch Panel

Anchor Link

Pop Rivet 3/16"

Washer

RH Headlamp Ass'y | Includes 2400 to 2400c

Halogen Bulb, 60/55 W, 12 V ( H4 )

Cap

Rubber Cap Protector

Torx Truss Screw M6 X 20

Panel Nut M6 X 1.0

LH Headlamp Ass'y | Includes 2600 to 2600c

Halogen Bulb, 60/55 W, 12 V ( H4 )

Cap

Rubber Cap Protector

Torx Truss Screw M6 X 20

Panel Nut M6 X 1.0
