- TUNDRA 600HO E-TEC - 2020
Suspension, Rear - Upper Section

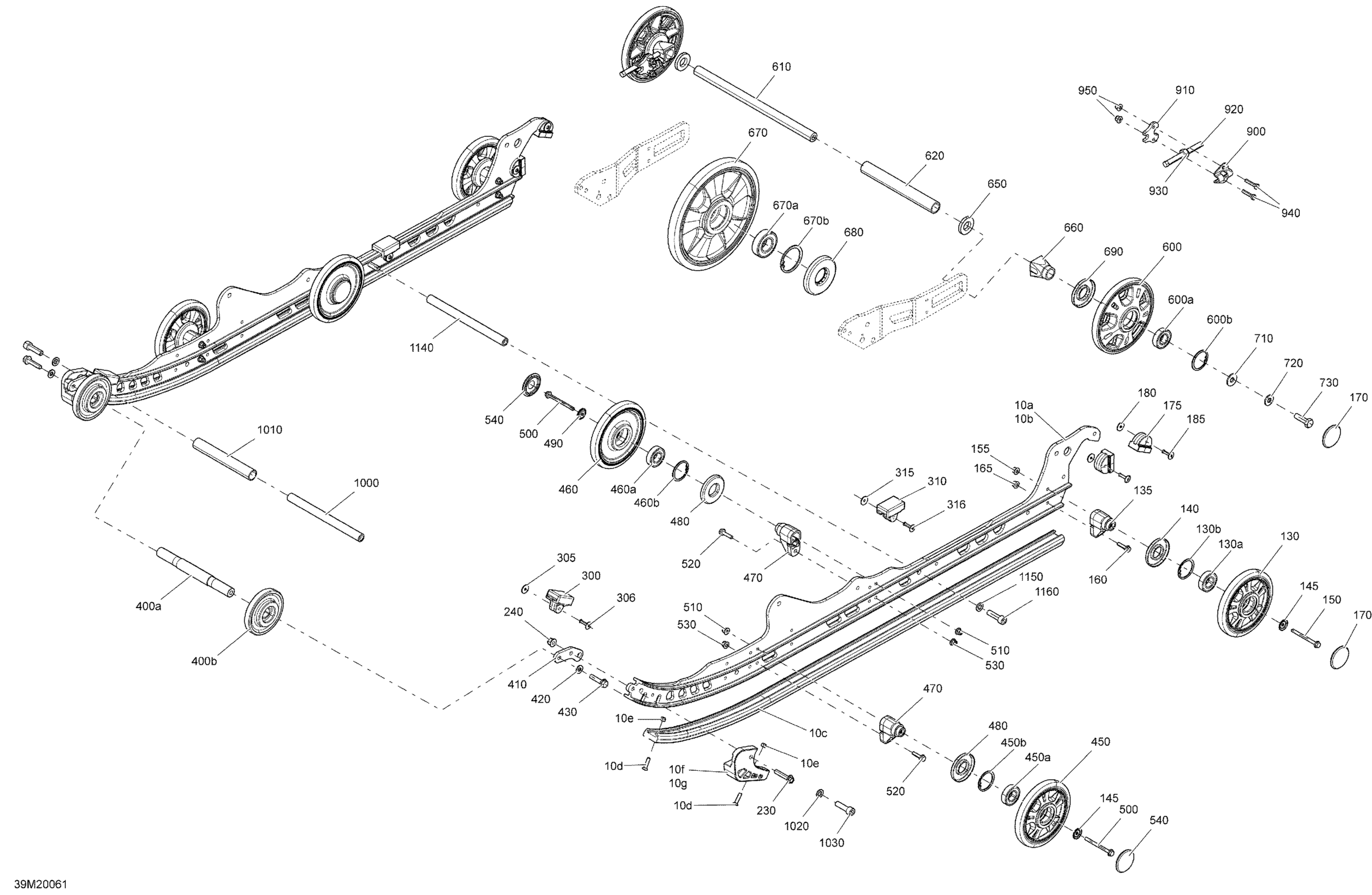

Ski-Doo TUNDRA 600HO E-TEC - 2020 Suspension, Rear - Upper Section Diagram
#
10a
Green Machined Rail 154 | Includes 10a to 10b
503194599
Unavailable
10b
Runner
503193723
Unavailable
10c
Black Slider, 154"
503192618
Unavailable
10d
Phillips Screw M6 X 25
208562531
Unavailable
10e
Elastic Stop Nut M6
232561414
Unavailable
10f
LH Protector
503192609
Unavailable
10g
RH Protector
503192610
Unavailable
130
Black, Wheel Ass'y 147 mm | Includes 440 to 440b
503191152
Unavailable
130a
Ball Bearing | Package-STD
503190396
Unavailable
130b
Retaining Ring
415129371
Unavailable
135
Casted Support
503193894
Unavailable
140
Labyrinth Seal
503190434
Unavailable
145
Wheel Cup M6
503191820
Unavailable
150
Hex. Flange Screw M6 X 70
250000944
Unavailable
155
Hex. Flange Elastic Nut M6
233261466
Unavailable
160
Hex. Flange Screw M6 X 25
250000945
Unavailable
165
Hex. Flange Elastic Nut M6
233261466
Unavailable
170
Black, Wheel Cap
503192771
Unavailable
175
Rubber Stopper
503191291
Unavailable
180
Washer
503191273
Unavailable
185
Pop Rivet 3/16
293150224
Unavailable
230
Hex. Flange Screw M8 X 40
207684044
Unavailable
240
Elastic Flange Nut M8
233281466
Unavailable
300
Rubber Stopper
503190576
Unavailable
305
Washer
503191273
Unavailable
306
Pop Rivet 3/16
293150224
Unavailable
310
Rubber Stopper
503190576
Unavailable
315
Washer
503191273
Unavailable
316
Pop Rivet 3/16
293150224
Unavailable
400a
Front Wheel Axle
503192644
Unavailable
400b
Black, Wheel Ass'y, 100 mm
503192611
Unavailable
410
Plate
503192612
Unavailable
420
Washer
503192494
Unavailable
430
Hex. Flange Screw M8 X 35
250000986
Unavailable
450
Black, Wheel Ass'y 147 mm | Includes 440 to 440b
503191152
Unavailable
450a
Ball Bearing | Package-STD
503190396
Unavailable
450b
Retaining Ring
415129371
Unavailable
460
Black, Wheel Ass'y 147 mm | Includes 460 to 460b
503191311
Unavailable
460a
Ball Bearing | Package-STD
503190396
Unavailable
460b
Retaining Ring
415129371
Unavailable
470
Casted Support
503193894
Unavailable
480
Labyrinth Seal
503190434
Unavailable
490
Wheel Cup M6
503191820
Unavailable
500
Hex. Flange Screw M6 X 70
250000944
Unavailable
510
Hex. Flange Elastic Nut M6
233261466
Unavailable
520
Hex. Flange Screw M6 X 25
250000945
Unavailable
530
Hex. Flange Elastic Nut M6
233261466
Unavailable
540
Black, Wheel Cap
503192771
Unavailable
600
Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b
503192128
Unavailable
600a
Ball Bearing | Package-STD
503190396
Unavailable
600b
Retaining Ring
415129371
Unavailable
610
Rear Axle
503190429
Unavailable
620
Spacer
503193052
Unavailable
650
Washer
503190432
Unavailable
660
Rear Wheel Spacer
503190428
Unavailable
670
Black, Wheel Ass'y, 165 mm | Includes 670 to 670b
503192140
Unavailable
670a
Ball Bearing | Package-STD
503190396
Unavailable
670b
Retaining Ring
415129371
Unavailable
680
Labyrinth Seal
503190682
Unavailable
690
Labyrinth Seal
503190434
Unavailable
710
Washer
503191910
Unavailable
720
Conical Spring Washer 10 mm
234201474
Unavailable
730
Hex Screw With Nilon Patch, M10 X 35
250000817
Unavailable
900
Tensioner
503192583
Unavailable
910
Spacer
503193250
Unavailable
920
Hex Screw M10 x 100
230100054
Unavailable
930
Elastic Locking Nut M10
233601466
Unavailable
940
Hex. Cap Screw M6 X 30
207063054
Unavailable
950
Hex. Flange Elastic Nut M6
233261466
Unavailable
1000
Axle Strap
503192613
Unavailable
1010
Spacer
503196943
Unavailable
1020
Washer
503192496
Unavailable
1030
Socket Head Screw M10 X 35
205503554
Unavailable
1140
Axle Strap
503191260
Unavailable
1150
Washer
503192496
Unavailable
1160
Socket Head Screw M10 X 35
205503554
Unavailable
