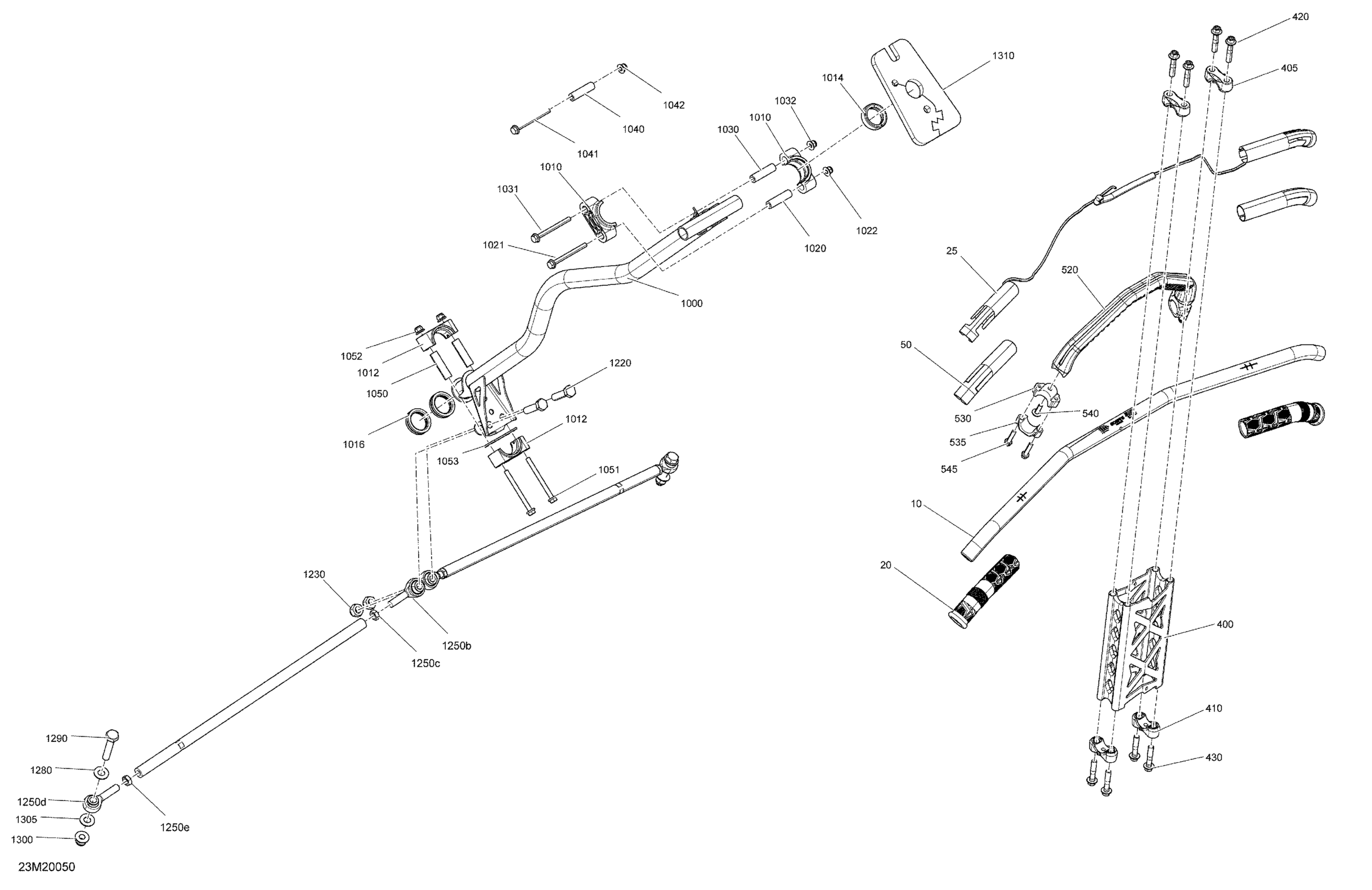

Ski-Doo TUNDRA 600HO E-TEC - 2020 Steering - System Diagram

#

Description
Price

10

Handle Bar, Non Dyed Clear Anodizing

506152709

Unavailable

20

Grip 148mm

506152560

Unavailable

25

Heating Element 32 Watt 2 Wires

506152758

Unavailable

50

Thermal Insulation

506153176

Unavailable

400

Steering Extension

506152569

Unavailable

405

Steering Support

506152894

Unavailable

410

Steering Support

506152894

Unavailable

420

Hex. Flange Screw M8 X 1.25 x 40

250000852

Unavailable

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

Unavailable

500

Deep Black, Steering Pad

506152541

Unavailable

520

Moulding Strap

506152460

Unavailable

530

Black Support Plate

506152703

Unavailable

535

Clamps | Includes 75a to 75b

719000049

Unavailable

540

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

545

Hex. Flange Screw M6 X 25

250000447

Unavailable

1000

Steering Column

506152962

Unavailable

1010

Upper Half-Housing

506152508

Unavailable

1012

Lower Half-Housing

506152217

Unavailable

1014

Upper Anti-Vibration Gasket

506152509

Unavailable

1016

Lower Vibration Ring

506152518

Unavailable

1020

Housing Bushing

506152297

Unavailable

1021

Hex. Flange Screw M6 X 70

250001027

Unavailable

1022

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1030

Housing Bushing

506152297

Unavailable

1031

Hex. Flange Screw M6 X 70

250001027

Unavailable

1032

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1040

Housing Bushing

506152297

Unavailable

1041

Hex. Flange Screw M6 X 70

250001027

Unavailable

1042

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1050

Lower Housing Bushing

506152388

Unavailable

1051

Hex. Flange Screw M8 x 65

207686534

Unavailable

1052

Hex. Flange Elastic Nut M8

233281414

Unavailable

1053

Stopper Plate

506152389

Unavailable

1220

Hex. Screw M10 X 1.5 X 40

207004034

Unavailable

1230

Elastic Locking Nut M10

233601466

Unavailable

1250>1250e

Tie Rod Ass'y

506153105

Unavailable

1250b

LH Thread Ball Joint

506152081

Unavailable

1250c

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

1250d

RH Threaded Ball Joint

506152019

Unavailable

1250e

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

1280

Washer

506152582

Unavailable

1290

Hex. Screw M10 X 45

207004544

Unavailable

1300

Elastic Locking Nut M10

233601466

Unavailable

1305

Washer

506152582

Unavailable

1310

Bushing

506152476

Unavailable
