Brakes - System

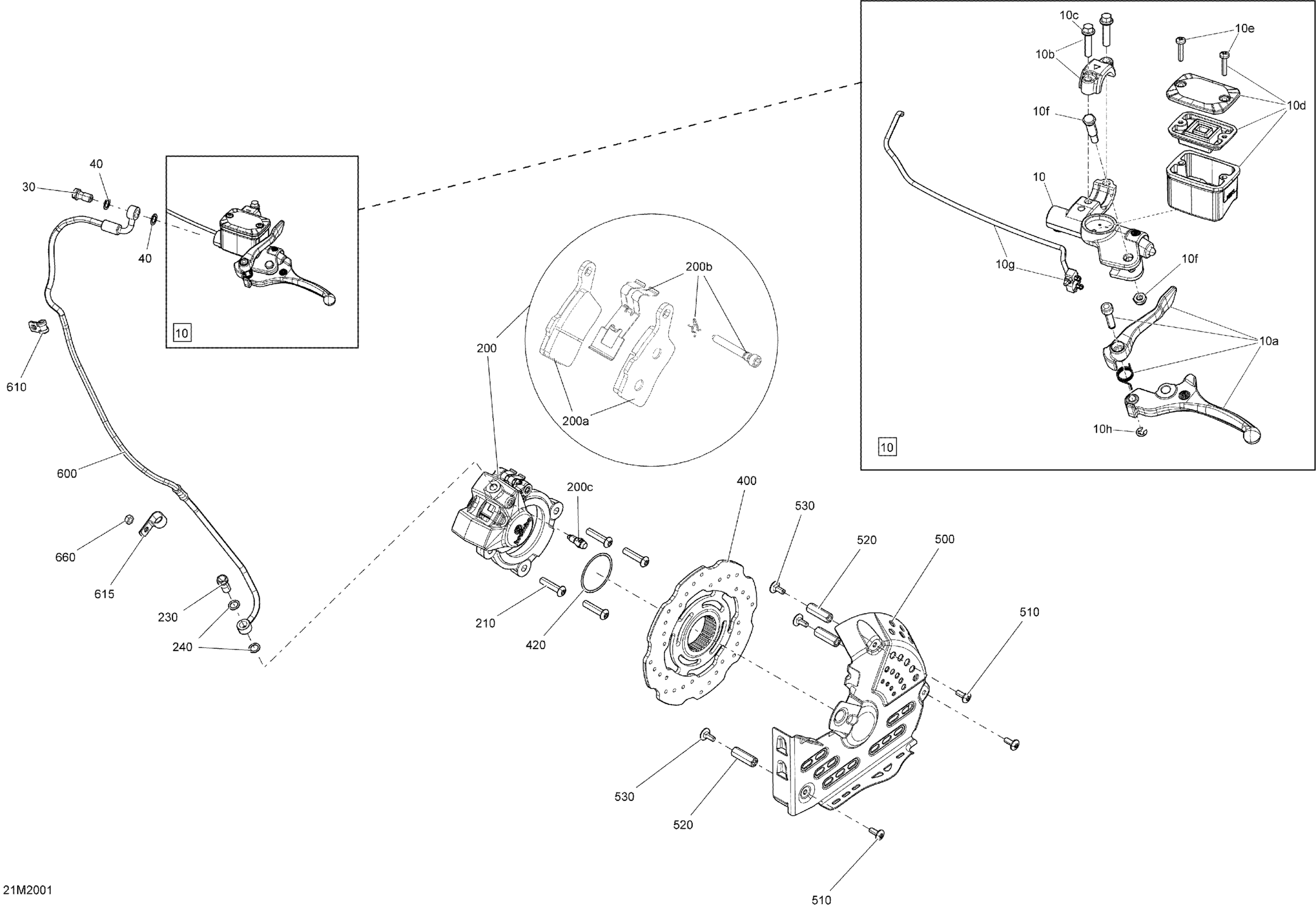

Ski-Doo TUNDRA 600HO E-TEC - 2020 Brakes - System Diagram
#
Description
Price
10
Master Cylinder Ass. | Includes 10 to 10g
507032596
Unavailable
10a
Lever With Parking Lock
507032476
Unavailable
10b
Clamp And Screw Kit
507032477
Unavailable
10c
Hex. Flange Screw M6 X 25
250000447
Unavailable
10d
Master Cylinder Reservoir Ass'y | Includes 10c to 10c1
507032478
Unavailable
10e
Screw M4 X 20
415129356
Unavailable
10f
Pin Ass'y
415030000
Unavailable
10g
Microswitch This part replaces 507032592.
507032597
Unavailable
10h
Circlip | Model-RS
414439000
Unavailable
30
Banjo Bolt
507032551
Unavailable
40
Copper Washer
705601628
Unavailable
200
Brake Caliper | Includes 200 to 200c
507032720
Unavailable
200a
Brake Pads Kit
507032473
Unavailable
200b
Brake Spring Kit
507032722
Unavailable
200c
Bleeder
507032475
Unavailable
210
Hex. Button Head Screw M8 X 1.25 X 35
250000764
Unavailable
230
Banjo Bolt
507032551
Unavailable
240
Copper Washer
705601628
Unavailable
400
Disc
507032487
Unavailable
420
O-Ring
293300134
Unavailable
500
Black Disk Protector
507032492
Unavailable
510
Torx Head Screw M6 X 16
250000717
Unavailable
520
Threaded Tube
507032497
Unavailable
530
Carriage Bolt M6 X 1.0 X 16
207761644
Unavailable
600
Hose
507032535
Unavailable
610
Open Clamp
414108400
Unavailable
615
Open Clamp
414108400
Unavailable
660
Elastic Stop Nut M6
232561414
Unavailable
