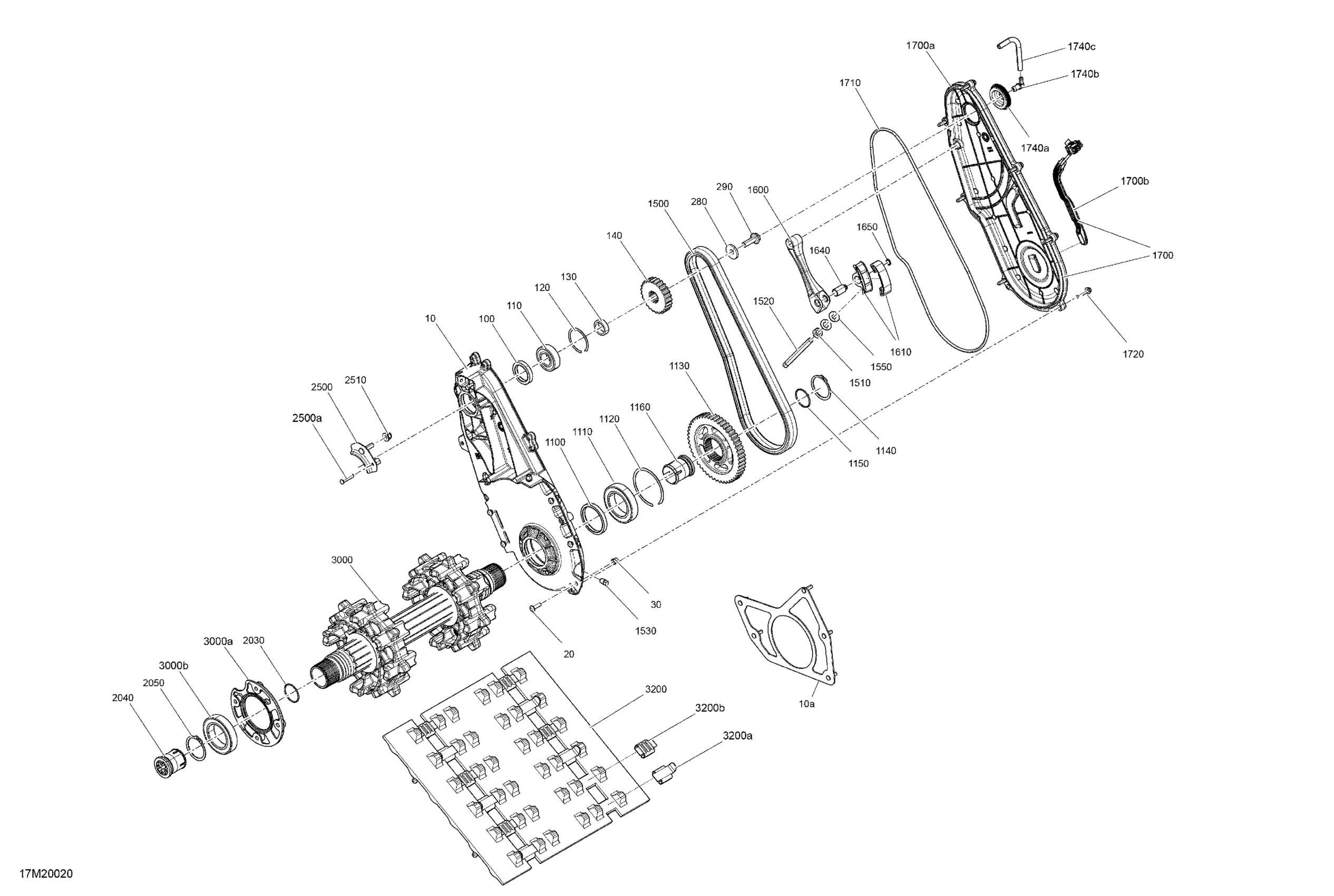

Ski-Doo TUNDRA 600HO E-TEC - 2020 Drive - System Diagram

#

Description
Price

10

Chaincase | Includes 10 to 10a

504153405

Unavailable

10a

Plate | Not Shown

518325816

Unavailable

20

Rivet Magna-Grip 6,4 X 50,8

293150148

Unavailable

30

Collar Huck Magna-Grip 6.4

293150149

Unavailable

100

Oil Seal

293200158

Unavailable

110

Ball Bearing

293350115

Unavailable

120

Circlip

504152576

Unavailable

130

Shim

504152628

Unavailable

140

Sprocket, 19 Teeth

504153783

Unavailable

280

Spring Washer M10

504152784

Unavailable

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

Unavailable

1100

Oil Seal

293200159

Unavailable

1110

Ball Bearing

293350059

Unavailable

1120

Circlip

504152582

Unavailable

1130

Kit Sprocket This part replaces 504152581.

861805539

Unavailable

1140

Circlip

504152572

Unavailable

1150

O-Ring

293300122

Unavailable

1160

Magnetic Cap

504152619

Unavailable

1500

Drive Chain, 104 Links

504152629

Unavailable

1510

Hex. Nut M10 X 1.5

232006414

Unavailable

1520

Adjustment Screw

504152602

Unavailable

1530

Magnetic Plug 1/8 - 27 NPTF

504152854

Unavailable

1550

Bonded Washer

250200100

Unavailable

1600

Tensioner chain

504153429

Unavailable

1610

Slider Chain

504152739

Unavailable

1640

Tensioner Axle

504152841

Unavailable

1650

Circlip

504152282

Unavailable

1700

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

Unavailable

1700a

Casting Cover

504153151

Unavailable

1700b

Gearbox Cover Ass'y | Includes 1700 to 1700f

504154651

Unavailable

1710

Tight Seal

293300130

Unavailable

1720

Screw-Forming Hex.HD.FL.BZN

250000935

Unavailable

1740a

Cap

504152860

Unavailable

1740b

Male Connector

414580700

Unavailable

1740c

HOSE, POLYURETHANE - Call your local BRP dealership

415080200

Unavailable

2030

O-Ring

293300122

Unavailable

2040

Magnetic Cap

504152619

Unavailable

2050

Circlip

504152572

Unavailable

2500

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

Unavailable

2500a

Clinch Stud M6 X 30

250300031

Unavailable

2510

Hex. Flange Elastic Nut M8

233281414

Unavailable

3000

Drive Axle Ass'y

504154054

Unavailable

3000a

Retaining Ring

504153886

Unavailable

3000b

Ball Bearing

293350059

Unavailable

3200

Track Ass'y 16" X 154" X 2.50" | Includes 3200 to 3200b

504153396

Unavailable

3200a

Track Guide | Track Width 16''

415129528

Unavailable

3200b

Cleat

504152651

Unavailable
