- TUNDRA 600HO E-TEC - 2020
Engine - System

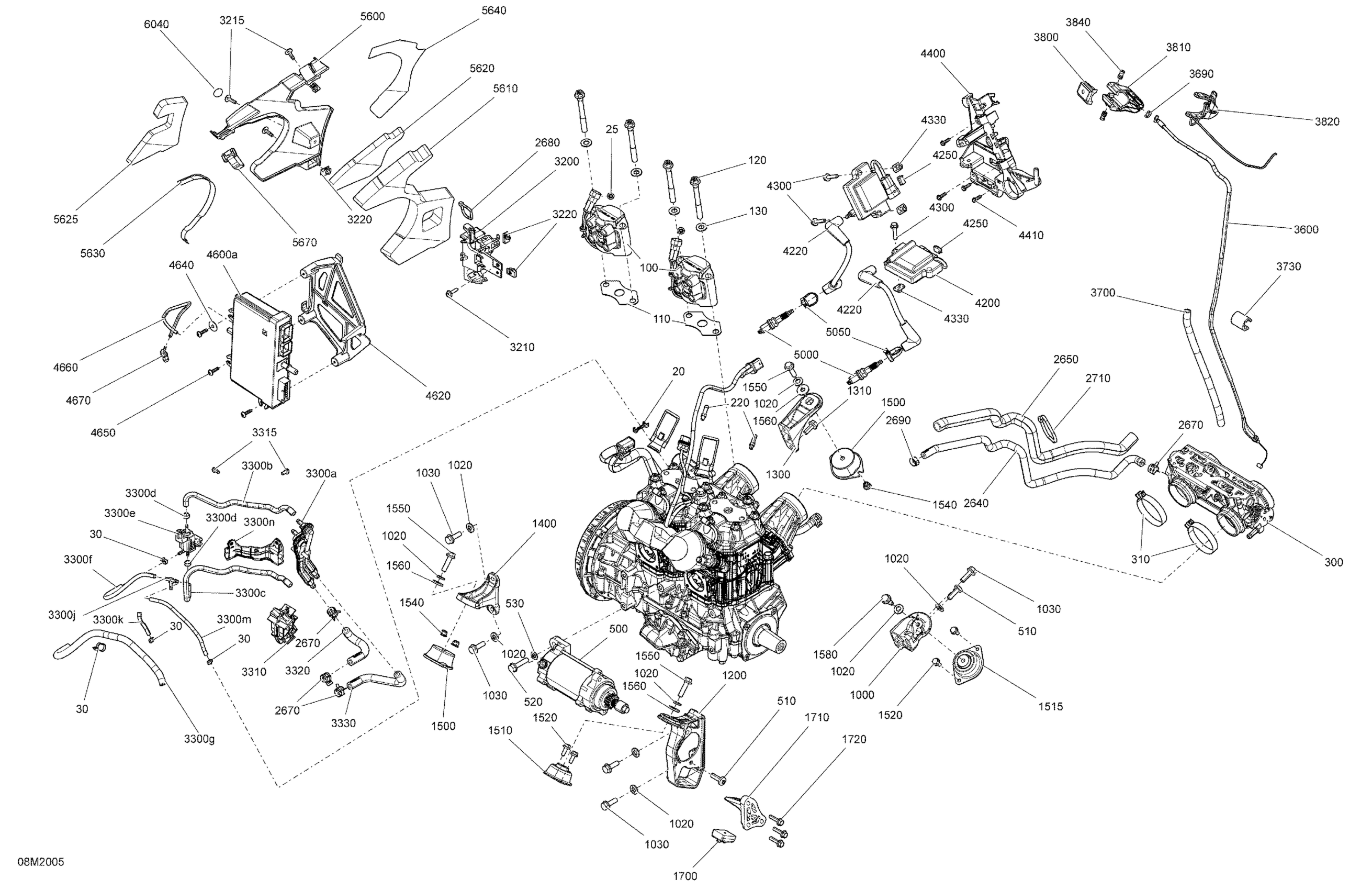

Ski-Doo TUNDRA 600HO E-TEC - 2020 Engine - System Diagram
#
20
Locker
515177770
Unavailable
25
Push Nut
732610072
Unavailable
100
Fuel Injector | Includes 13 to 16b This part replaces 512060727.
512061233
Unavailable
110
Gasket
420430930
Unavailable
120
Torx Flange Screw M10 X 90 -SW 13/T50
420441187
Unavailable
130
Flat Washer 10 mm
234001410
Unavailable
220
Hose Nipple
420924724
Unavailable
300
Throttle Body
420889201
Unavailable
310
Gemi Clamp
293650158
Unavailable
500
Starter
515178473
Unavailable
510
Torx Screw M8 X 1.25 X 25, Scotch Grip
250000752
Unavailable
520
Hex Flange Screw M8 X 35, Scotch Grip
207583544
Unavailable
530
Flat Washer With Teflon 8 mm
250200008
Unavailable
1000
Rear Support, PTO
512060478
Unavailable
1010
Torx Screw M8 X 1.25 X 25, Scotch Grip
250000752
Unavailable
1020
Conical Spring Washer M8
250200146
Unavailable
1030
Hex. Flange Screw M8 X 25, Scotch Grip
207582586
Unavailable
1200
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.
512060712
Unavailable
1210
Hex Flange Screw M8 X 25 S.Grip
250001016
Unavailable
1220
Conical Spring Washer M8
250200146
Unavailable
1300
Rear Support, MAG
512060559
Unavailable
1310
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
1320
Conical Spring Washer M8
250200146
Unavailable
1400
Front Support, MAG
512060469
Unavailable
1410
Hex Flange Screw M8 X 25 S.Grip
250001016
Unavailable
1420
Conical Spring Washer M8
250200146
Unavailable
1500
Rubber Mount
512060729
Unavailable
1510
Rubber Mount
512060387
Unavailable
1515
Rubber Mount
512060448
Unavailable
1520
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
1540
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
1550
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
1560
Yellow, Washer
503183200
Unavailable
1570
Conical Spring Washer M8
250200146
Unavailable
1580
Hex. Flange Screw M8 X 1.25 X 25
250000796
Unavailable
1700
Stopper
512060627
Unavailable
1710
Stopper Support
512060576
Unavailable
1720
Hex. Flange Screw M6 X 25
207562544
Unavailable
2640
Formed Hose, Output
512060740
Unavailable
2650
Tubing
513033412
Unavailable
2670
Norma Spring Clamp
293650214
Unavailable
2690
Oetiker Clamp
293650046
Unavailable
3200
Solenoid Support
512060298
Unavailable
3210
Hex.Flange Screw M5 X 20
207652044
Unavailable
3215
Torx Screw M5 X 20
250000528
Unavailable
3220
Panel Nut M5 X 0.8
250000958
Unavailable
3300a
Manifold
512060692
Unavailable
3300b
Polyurethane Hose 10000Mm Long
219704410
Unavailable
3300c
Polyurethane Hose 10000Mm Long
219704410
Unavailable
3300d
Crimp Clamp
293650234
Unavailable
3300e
Solenoid Valve
270600005
Unavailable
3300f
Was 420660574 Pressure Hose 280 mm
219704352
Unavailable
3300g
Was 409901700 Tubing (9 mm)
219704399
Unavailable
3300j
T-Fitting
293710068
Unavailable
3300k
Was 420660574 Pressure Hose 280 mm
219704352
Unavailable
3300m
Was 420660574 Pressure Hose 280 mm
219704352
Unavailable
3300n
Hose Support
512060827
Unavailable
3300p
Spring | Not Shown
512060934
Unavailable
3310
Manifold Support
512060769
Unavailable
3315
Screw-Forming HEX.HD.FL.BZN
250000937
Unavailable
3320
LH Formed Hose
512060695
Unavailable
3330
RH Formed Hose
512060694
Unavailable
3350
Norma Spring Clamp
293650214
Unavailable
3600
Throttle Cable
512060851
Unavailable
3690
Circlip
414274500
Unavailable
3700
Was 409901700 Tubing (9 mm)
219704399
Unavailable
3730
Protector
512060313
Unavailable
3800
Upper Housing
512060859
Unavailable
3810
Lower Housing
512060860
Unavailable
3820
Handle Ass'y
512061250
Unavailable
3840
Flange Screw
732601143
Unavailable
4200
Ignition Coil
512060953
Unavailable
4220
Ignition Cable, 177mm long
512061126
Unavailable
4250
Clip
710000992
Unavailable
4300
Hex. Flange Screw M6 X 1.0 X 30 | Not Shown
250000253
Unavailable
4330
Nut Welded, M6
293100003
Unavailable
4400
Ignition Coils Support
512060888
Unavailable
4410
Hex. Flange Screw K50 X 2.24 X 16
241151640
Unavailable
4600a
Calibrated Module
512060780
Unavailable
4620
Calibrated Module Support
512060858
Unavailable
4640
Flat Washer
250200040
Unavailable
4650
Torx Screw Truss Head K50X20 T20
250000760
Unavailable
4660
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
4670
Male Connector
414814100
Unavailable
5000
Spark Plug NGK PZFR6F This part replaces 415129375.
415130430
Unavailable
5050
Clamp
512060993
Unavailable
5600
Noise Shield
512060634
Unavailable
5610
Interior Noise Foam
512060343
Unavailable
5620
Upper Exterior Noise Foam
512060344
Unavailable
5625
Lower Exterior Noise Foam
512060665
Unavailable
5630
Heat Shield
512060574
Unavailable
5640
Heat Shield
512060666
Unavailable
5650
Torx Screw M5 X 20
250000528
Unavailable
5660
Panel Nut M5 X 0.8
250000958
Unavailable
5670
Velcro Strip
508000599
Unavailable
6040
Adhesive Patch
518325560
Unavailable
