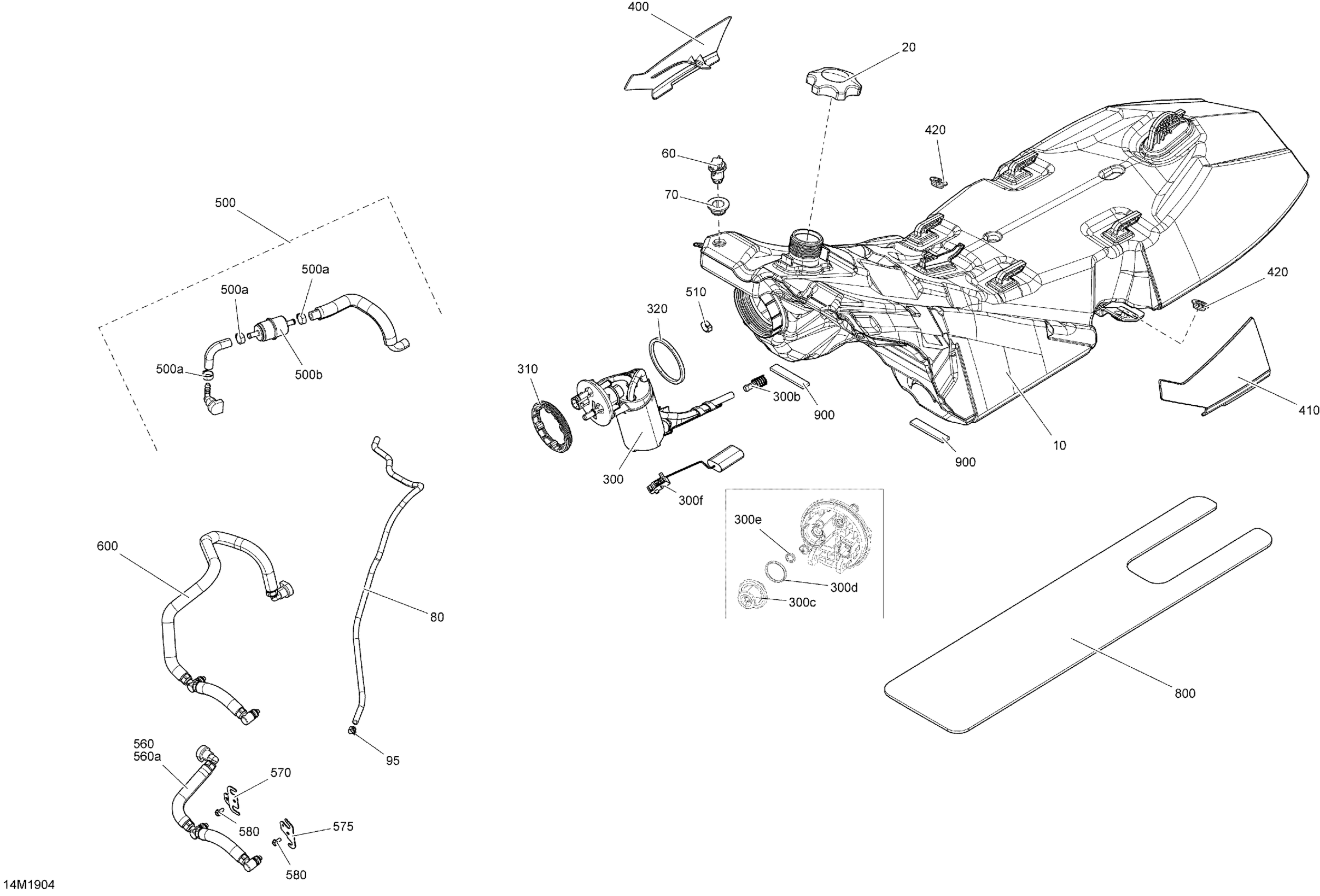

Ski-Doo TUNDRA 600HO E-TEC - 2020 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513033667

$304.45

20

Fuel Tank Cap

513033860

$22.36

60

Check Valve

513033842

$32.81

70

Grommet

513033596

$17.88

80

Polyurethane Hose 10000Mm Long

219704410

$46.12

95

Clip

414227300

$1.40

300

PUMP FUEL | Includes 300 to 300f This part replaces 513033837.

513034258

Unavailable

300a

Fuel Filter

415129451

$23.10

300b

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

300c

Regulator

415129821

$73.85

300d

O-Ring

415129822

$17.88

300e

O-Ring

415129823

$17.88

300f

Fuel Level Sensor

415130108

$136.54

310

Ring

513033180

$17.13

320

Gasket

513033334

$22.36

400

RH Cap

513033418

$12.24

410

LH Cap

513033419

$12.24

420

Shoulder Bushing

513033326

$12.24

500

Hose Ass'y | Includes 500 to 500b This part replaces 513033846.

513034137

$77.58

500a

Oetiker Clamp

293650125

$2.69

500b

Fuel Filter

513034047

$35.99

510

Crimp Clamp

293650053

$2.42

560

Hose Ass'y | Includes 22 to 23

513033594

$79.07

560

Hose Ass'y | Includes 22 to 23

513033594

$79.07

560a

Locking Clip

513033135

$4.96

570

Bracket

513033542

$12.24

575

Bracket

513033593

$15.64

580

Hex. Flange Screw M5 X 10

207551044

$3.38

600

Fuel Hose Ass'y

513033648

$117.88

800

Insulating Foam

513033588

$12.24

900

Gasket

513033813

$3.19
