- TUNDRA 600HO E-TEC - 2020
Engine - Exhaust

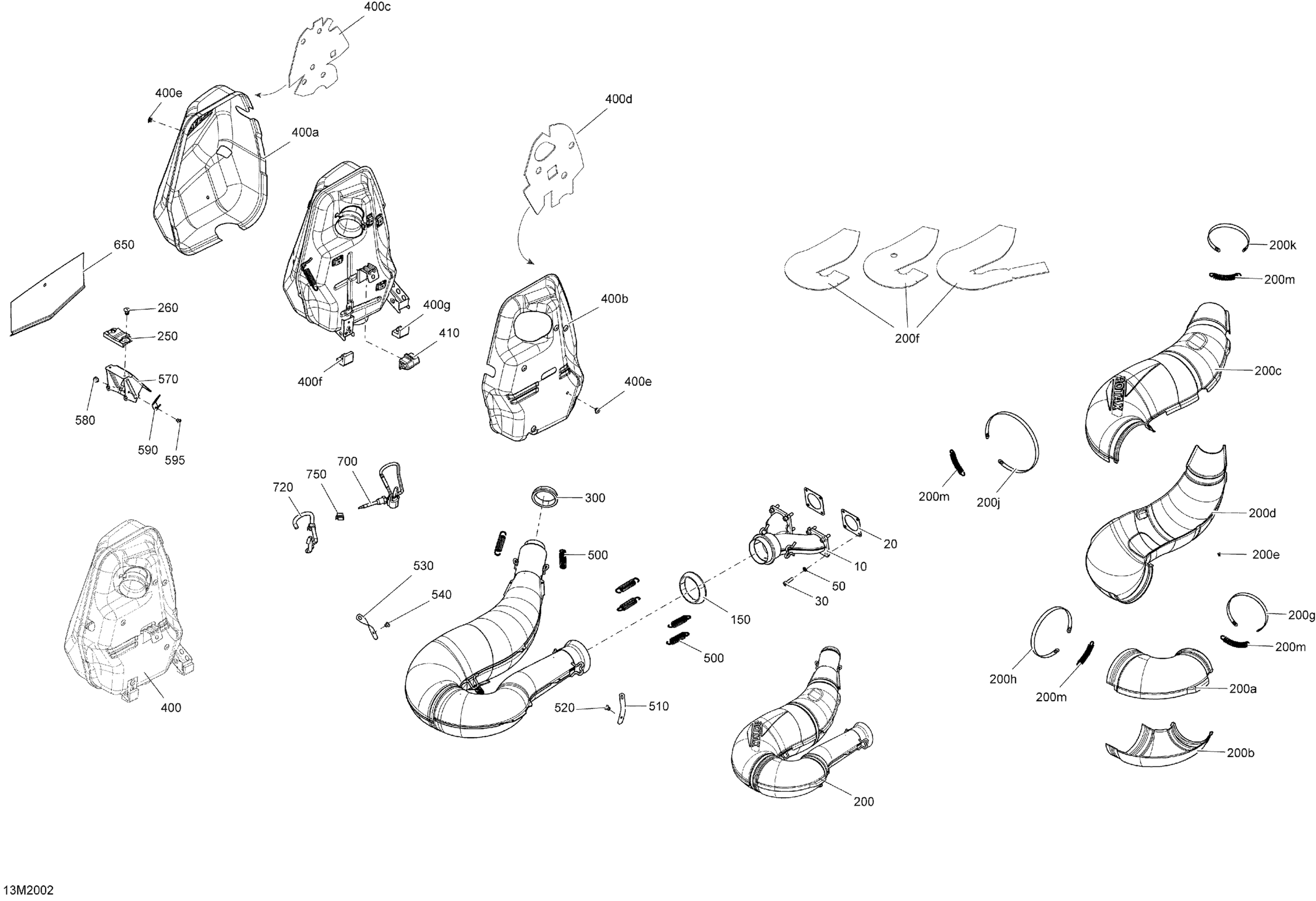

Ski-Doo TUNDRA 600HO E-TEC - 2020 Engine - Exhaust Diagram
#
10
Exhaust Manifold This part replaces 420673420.
420673421
Unavailable
20
Gasket
420850552
Unavailable
30
Socket Head Screw Scotch Grip M6 X 20
250001077
Unavailable
50
Washer
605620001
Unavailable
150
Exhaust Gasket
514053487
Unavailable
200
Exhaust Tuned Pipe | Includes 200 to 200m
514055066
Unavailable
200a
Front Upper Half Enveloppe
514054992
Unavailable
200b
Front Lower Half Enveloppe
514054993
Unavailable
200c
Rear Upper Half Enveloppe
514055039
Unavailable
200d
Rear Lower Half Enveloppe | Includes 200d to 200e
514054990
Unavailable
200e
Henrob Rivet
293150091
Unavailable
200f
Insulating Wool
514054487
Unavailable
200g
Retaining Strap
514054408
Unavailable
200h
Retaining Strap
514054409
Unavailable
200j
Retaining Strap
514054410
Unavailable
200k
Retaining Strap
514053499
Unavailable
200m
Spring
514053643
Unavailable
250
Bumper
514054275
Unavailable
260
Pop Rivet 3/16"
293150103
Unavailable
300
Exhaust Gasket
514054174
Unavailable
400
Muffler Ass'y | Includes 400 to 400g
514054970
Unavailable
400a
RH Deflector
514054985
Unavailable
400b
LH Deflector
514054967
Unavailable
400c
RH Insulating Wool
514054711
Unavailable
400d
LH Insulating Wool
514054299
Unavailable
400e
Pop Rivet 3/16”
390910000
Unavailable
400f
Lower Stopper
514054274
Unavailable
400g
Lower Stopper
514054496
Unavailable
410
Upper Stopper
514054606
Unavailable
500
Spring
415107100
Unavailable
510
Spring Bracket, 5mm hole
514054974
Unavailable
520
Stavex Rivet
293150144
Unavailable
530
Spring Bracket, 5mm hole
514054974
Unavailable
540
Avex Rivet
390909200
Unavailable
570
Exhaust Muffler Support
514054767
Unavailable
580
Hemlock Rivet, 6.5 mm
293150096
Unavailable
590
Spring Bracket
514053393
Unavailable
595
Pop Rivet 3/16"
390402200
Unavailable
650
Reflective Sheet
514054745
Unavailable
700
Temperature Sensor
514054870
Unavailable
720
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
750
Clip
414227300
Unavailable
