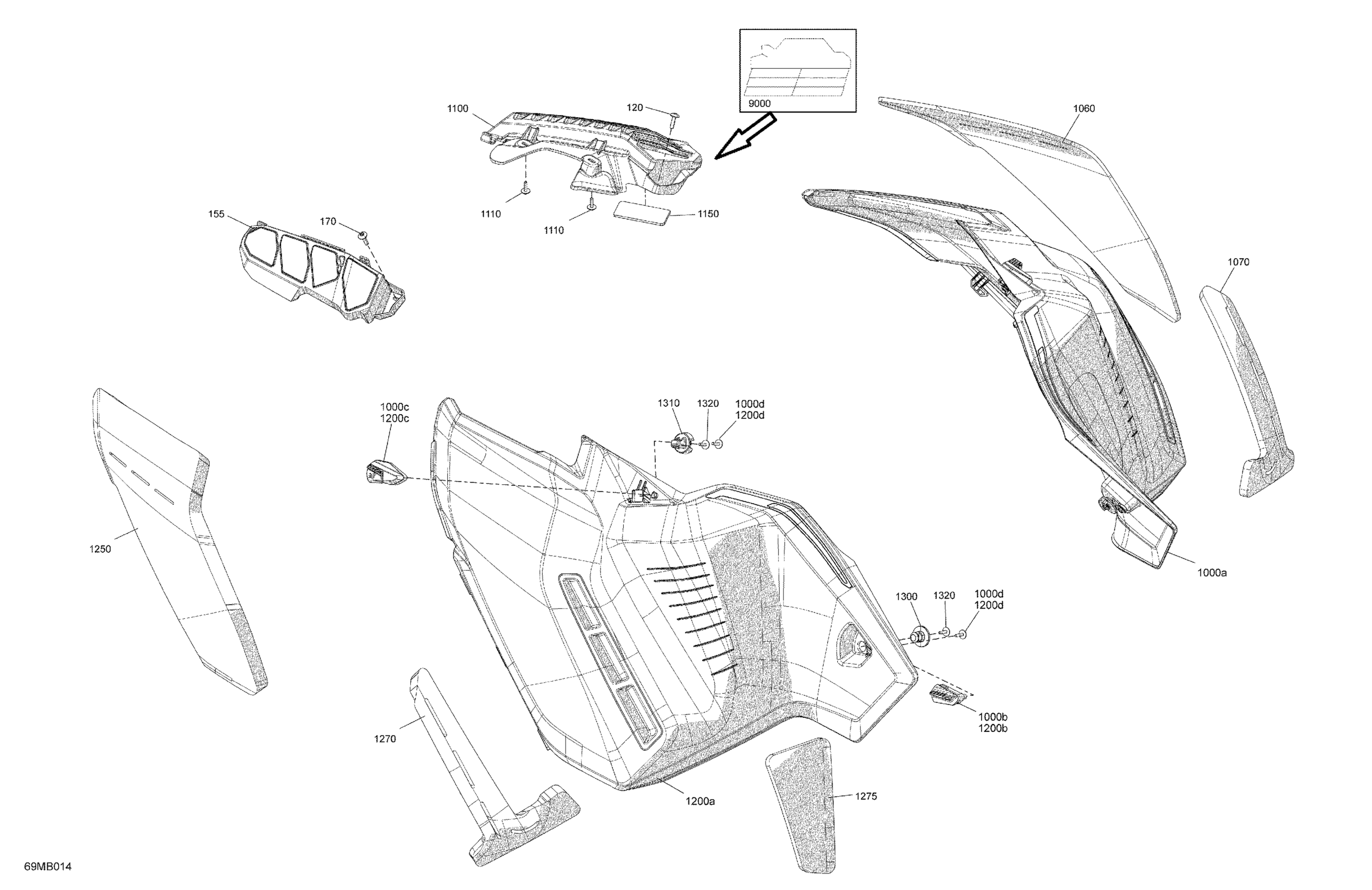

Ski-Doo TUNDRA 600 EFI - LT - 2022 Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$2.11

155

LH Hood Trim

517306690

$31.99

170

Torx Screw M5 X 20

250000528

$2.11

1000a

Deep Black, RH Panel

517306748

$184.99

1000b

RH Rear Latch

517305773

$18.49

1000c

RH Front Latch

517305979

$16.79

1000d

Screw M4 X 16

250000725

$3.49

1060

RH Front Panel Foam

517306843

$14.49

1070

RH Rear Panel Foam

517306845

$14.49

1100

RH Hood Grille Ass'y

517308292

$81.99

1110

Screw M4 X 16

250000725

$3.49

1150

Rubber Sheet

517307700

$19.49

1200a

Deep Black, LH Body Panel

517306750

$184.99

1200b

LH Rear Latch

517305774

$18.49

1200c

LH Front Latch

517305980

$18.49

1200d

Screw M4 X 16

250000725

$3.49

1250

LH Front Panel Foam

517306863

$14.49

1270

LH Rear Panel Foam

517306865

$14.49

1275

LH Rear Panel Foam

517306496

$6.99

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49

9000

Foil Kit | Not Shown

517308274

$4.39
