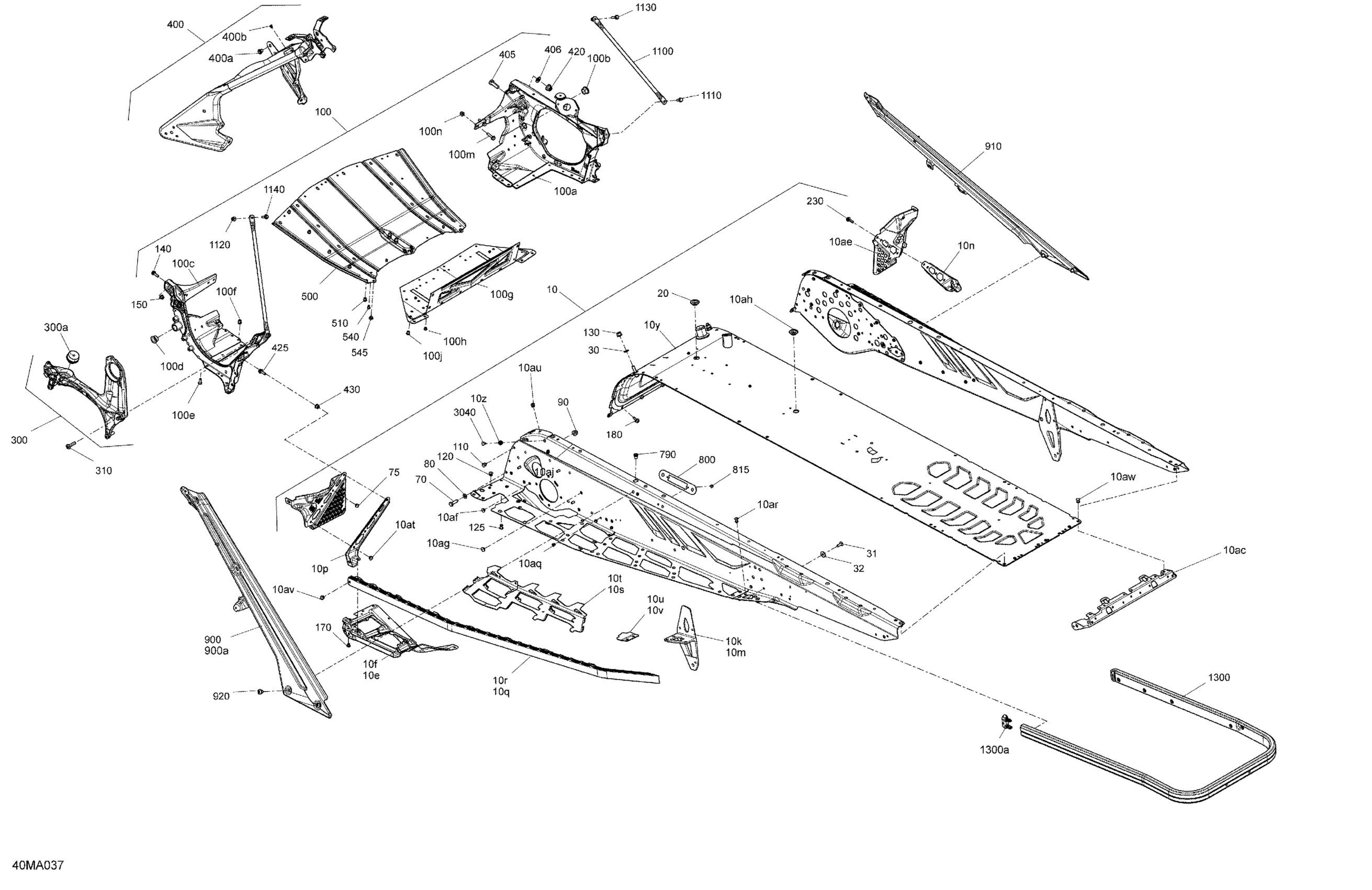

Ski-Doo 002 - TUNDRA 600 EFI - LT - North America, 2021 06- Frame - System - LT Diagram

Chassis Tunnel Module 154" | Includes 10 to 10aw

415130490

$3.00

Deep Black, RH Footrest Reinforcement

518332803

$86.99

Deep Black, LH Footrest Reinforcement

518332802

$18.49

LH Bracket

518329632

$45.99

RH Rear Suspension Support

518334407

$69.99

Stirrup Reinforcement

518331253

$21.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

RH Central Tunnel Reinforcement

518331564

$35.99

LH Central Tunnel Reinforcement

518331565

$35.99

LH Reinforcement Plate

518329088

$3.39

RH Reinforcement Plate

518329089

$4.59

Radiator Tunnel 154 Ass'y

518334491

$709.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap

518328990

$22.49

RH Footrest

518330691

$24.99

Full Moon Dart 8 mm

293730041

$2.21

Full Moon Dart 10 mm

293730059

$4.55

Black, Plug

293730052

$9.19

LH Foot Protector

518331559

$23.99

Rivet Avibulb 3/16

293150203

$2.09

Rivet

293150183

$2.11

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Flat Washer 8 mm

234081410

$0.83

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Hex Screw M8 X 30

250000942

$1.15

Hemlock Rivet, 6.5 mm

293150096

$3.27

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100n

518332722

$589.99

RH Member Ass'y | Includes 100a to 100a3

518332687

$219.99

Leg Bushing

505072690

$12.49

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Bushing

505072690

$12.49

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Bottom Plate

518332716

$36.99

Rivet Avibulb 3/16

293150203

$2.09

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 25

250000945

$4.44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hemlock Rivet, 6.4 mm

293150174

$7.86

Hemlock Rivet 6.5 mm

293150120

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 16

207661646

$1.36

Hex. Flange Screw M6 X 20

207662046

$2.11

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

Chassis Suspension Module | Includes 400 to 400b

518331592

$379.99

Insert

293450275

$12.99

Rivet Avibulb 3/16

293150203

$2.09

Screw Hex M10 X 30

250001148

$1.69

Flat Washer 10 mm

234001410

$1.26

Hex. Flange Elastic Nut M10

250100165

$0.85

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Front Bottom Plate

518331615

$31.99

Insert M5 X 0.8

293450268

$2.09

Avex Rivet

390909100

$0.30

Rivet 6,4 mm

293150173

$4.29

Insert

293450278

$4.49

Member Fixation Plate

518329480

$12.99

Rivet Avibulb 3/16

293150203

$2.09

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

RH Rear Diagonal Cross Member

518330885

Unavailable

Black, RH Member Ass'y | Black

518330880

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Upper Colomn Support

518329974

$22.49

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 20

207662046

$2.11

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$148.99

Bumper Cap

520001629

$0.98

Dart

293730079

$2.09
