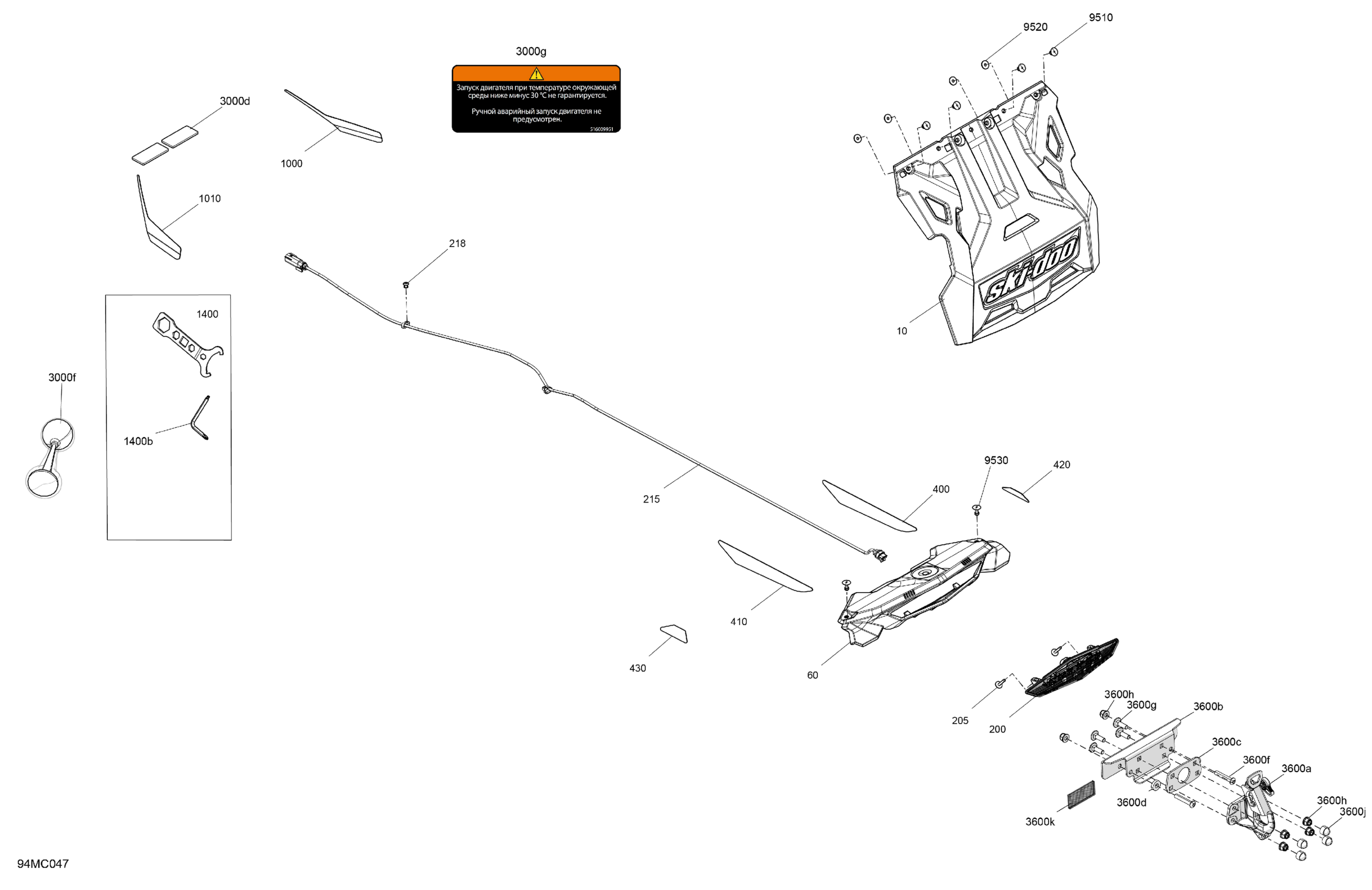

Ski-Doo TUNDRA 600 ACE - LT - Europe, 2023 Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520002106

$128.33

Light Fairing

520001487

$18.63

200

Tail Light

520002710

$74.60

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

215

Rear Light Harness

515178267

$24.60

218

Pop Rivet 3/16"

390402200

$0.30

400

Yellow, LH/RH Rear Reflector Kit

861805523

$24.60

410

Yellow, LH/RH Rear Reflector Kit

861805523

$24.60

420

Amber, LH Rear Reflector

520001862

$4.51

430

Amber, LH Rear Reflector

520001861

$4.51

1000

RH Front Reflector

520002444

$7.64

1010

LH Front Reflector

520002443

$7.64

1400

Tool Kit | Includes 1400 to 1400b

520001767

$51.99

1400b

Key

520001815

$11.99

3000c

Red, Reflector

705015551

$8.01

3000d

Amber, Reflector

520002680

$18.63

3000f

Horn

549011291

$34.30

3000g

Warning Decal, Security

516009951

Unavailable

3600a

Hitch Ass'y

520001826

$61.16

3600b

Hitch Support

520001632

Unavailable

3600c

Hitch Fastening Plate

520001243

Unavailable

3600d

Sleeve

520001288

Unavailable

3600f

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.01

3600g

Carriage Bolt, M8 X 25 | XXC

207782544

$1.51

3600h

Hex. Flange Elastic Nut M8

233281414

$1.31

3600j

Cover | Model-T3

28056

$5.36

3600k

Red Reflector

520001820

$17.13

9510

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

9520

Washer

517124300

$0.18

9530

Pop Rivet 3/16"

293150100

$1.04
