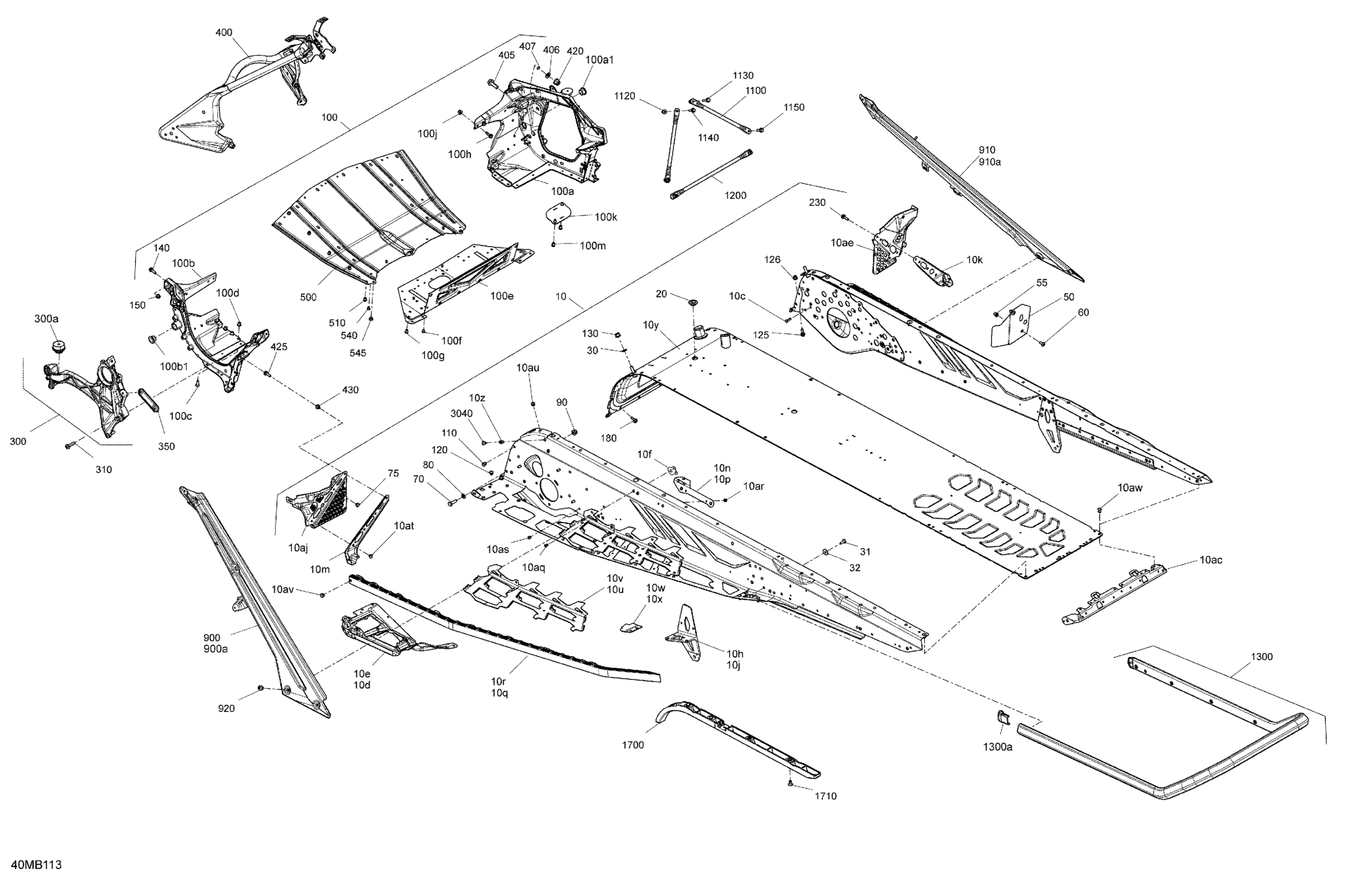

Ski-Doo 002 - TUNDRA 600 ACE - LT - Europe, 2022 06- Frame - System Diagram

#

Description
Price

10

Full Moon,Tunnel Chassis Module 154 | Includes 10 to 10aw

518333191

Unavailable

10c

Clinch Stud M6 X 20

250300027

$2.09

10d

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10e

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10f

Front Suspension Arm Reinforcement

518335959

$4.19

10h

LH Bracket

518329632

$45.99

10j

RH Rear Suspension Support

518334407

$69.99

10k

Stirrup Reinforcement

518331253

$21.99

10m

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10n

LH Under Chassis Reinforcement

518331744

$18.99

10p

RH Under Chassis Reinforcement

518331745

$19.99

10q

RH Roller

518328451

$194.99

10r

LH Roller

518328452

$194.99

10u

RH Tunnel Liner

518329646

$35.99

10v

LH Tunnel Liner

518329647

$35.99

10w

LH Reinforcement Plate

518329088

$3.39

10x

RH Reinforcement Plate

518329089

$4.59

10y

Radiator Tunnel 154

518335129

$709.99

10z

Clinch Nut M6 Hexsert

605636003

$4.23

10ac

Rear Cap

518328990

$22.49

10ae

RH Footrest

518330691

$24.99

10aj

LH Foot Protector

518331559

$23.99

10aq

Avex Rivet

390909100

$0.30

10ar

Rivet

293150183

$2.11

10as

Avex Rivet

390909200

$0.30

10at

Hemlock Rivet, 6.5 mm

293150096

$3.27

10au

Hemlock Rivet, 6.5 mm

293150119

$4.29

10av

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

30

Conical Spring Washer M8

250200146

$1.01

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

32

Flat Washer

224061201

$1.37

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

70

Hex Screw M8 X 30

250000942

$1.15

75

Hemlock Rivet, 6.5 mm

293150096

$3.27

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518333199

Unavailable

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$204.99

100a1

Leg Bushing

505072690

$12.49

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b1

Leg Bushing

505072690

$12.49

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100e

Bottom Plate

518332715

$36.99

100f

Avex Rivet

390909100

$0.30

100g

Insert M5 X 0.8

293450268

$2.09

100h

Hex. Flange Screw M6 X 20

207662046

$2.11

100j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100k

Oil Plate

518332276

$19.99

100m

Torx Truss Screw M6 X 12

250000767

$2.00

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Hemlock Rivet, 6.4 mm

293150174

$7.86

125

Hex. Flange Screw M6 X 20

207662044

$2.00

126

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

180

Hex. Flange Screw M6 X 16

207661646

$1.36

230

Hex. Flange Screw M6 X 20

207562056

$2.11

300

LH Side Member Ass'y | Includes 300 to 300b

518333691

$199.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

350

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$11.49

400

Chassis Suspension Module

518335308

$379.99

405

Screw Hex M10 X 30

250001148

$1.69

406

Flat Washer 10 mm

234001410

$1.26

407

O-Ring

505072448

$2.32

420

Hex. Flange Elastic Nut M10

250100165

$0.85

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

500

Front Bottom Plate

518331615

$31.99

510

Insert M5 X 0.8

293450268

$2.09

540

Avex Rivet

390909100

$0.30

545

Rivet 6,4 mm

293150173

$4.29

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

900a

LH Rear Diagonal Cross Member

518333356

$119.99

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$119.99

910a

RH Rear Diagonal Cross Member

518332559

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329370

$22.49

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1150

Hex. Flange Screw M6 X 20

207562056

$2.11

1200

Center Column Support

518329755

$3.69

1300

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$148.99

1300a

Bumper Cap

520001629

$0.98

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
