Description

Price

10

Chain Case Ass'y | Includes 10 to 10b

504154233

$96.99

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

30

Collar Huck Magna-Grip 6.4

293150149

$0.48

60

Washer

504082900

$2.64

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

80

Flange Elastic Nut M6

233261434

$4.44

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

140

Sprocket 21 Teeth Ass'y

504154082

$104.99

200

Connecting Shaft Ass'y

504153500

$132.49

210

External Retaining Ring

293370183

$3.79

220

Spring Release

504153179

$11.49

230

Sliding Gear 27 Teeth Machined

504153502

$109.99

260

Washer

504152689

$7.65

270

Circlip

293370055

$8.11

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

500

Axle Reverse Ass'y | Includes 500 to 500b

504153519

$35.99

500a

Rolled Pin M3 X 10

250400010

$1.90

510

Ring

504078700

$20.99

520

Sprocket 19 Teeth Ass'y

504154086

$88.99

530

Alignement Rod

570048600

$15.99

550

Gear Straight 29 Teeth Ass'y

504154087

$105.99

560

Spacer

504077300

$6.95

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Sprocket 53 Teeth

504153998

$49.99

1140

Circlip

504152572

$6.95

1150

O-Ring

293300201

$1.01

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

1160a

Cap

504154043

$2.11

1500

Drive Chain 116 Links

504153397

$227.99

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Magnetic Plug

504153704

$5.19

1550

O-Ring

293300202

$1.01

1600

Tensioner

504153559

$18.99

1610

Slider Chain

504153312

$65.99

1640

Copper Washer

250200185

$1.46

1650

Circlip

293370105

$2.11

1660

Slide Chain

504153531

$17.49

1670

Torx Head Screw M6 X 16

250000717

$2.11

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

1700

Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504154076

$189.99

1700b

Clip Connector

515178223

$2.09

1700c

Braided Sleeve

415130141

$55.99

1710

O-Ring

293300200

$13.16

1740a

Cap

504152930

$28.99

1740b

Straight Fitting

293710035

$8.89

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1740d

Protector Tube | Not shown

503195447

$13.49

1770

Hex. Countersunk Drain Plug

250500013

$7.89

1790

Hex. Flange Screw M6 X 35

250001015

$1.46

1800

Fork Ass'y

504154097

$33.99

1810

O-Ring

293300202

$1.01

1820

Reverse Axle

504154096

$19.49

1830

Spring Pin M5 X 16

250400045

$4.55

1860

Machined Lever

504153532

$29.99

1880

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

1890

Rod Actuating Adjustable Ass'y

504153657

$40.99

1900

Rod Actuating Ass'y

504153944

$15.99

1920

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

1930

Hex. Flange Screw M6 X 25

207562544

$1.69

1940

Reverse Lever

504153524

$29.99

1960

Socket Head Screw M6 X 40, S.GRIP

205564044

$2.11

1970

Hex. Flange Screw M6 X 25

207562544

$1.69

1980

Washer

504082900

$2.64

1990

Hex. Screw M8 X 90

207089044

$3.48

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2070

Hex. Flange Screw M6 X 25

207562544

$1.69

2090

Handle Support

504153683

$21.99

2110

Spacer

504153648

$3.49

2120

Bushing

504153735

$0.55

2130

Hex. Flange Screw M6 X 25

207562544

$1.69

2180

Bushing

504153735

$0.55

2190

Spacer

504153648

$3.49

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500a

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000e

504154024

$412.99

3000b

Sprocket, 8 Teeth

504153880

Unavailable

3000c

Sprocket, 8 Teeth

504153881

Unavailable

3000d

Retaining Ring

504153886

$21.99

3000e

Ball Bearing

293350059

$30.99

3200

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

504154391

$1.00

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64

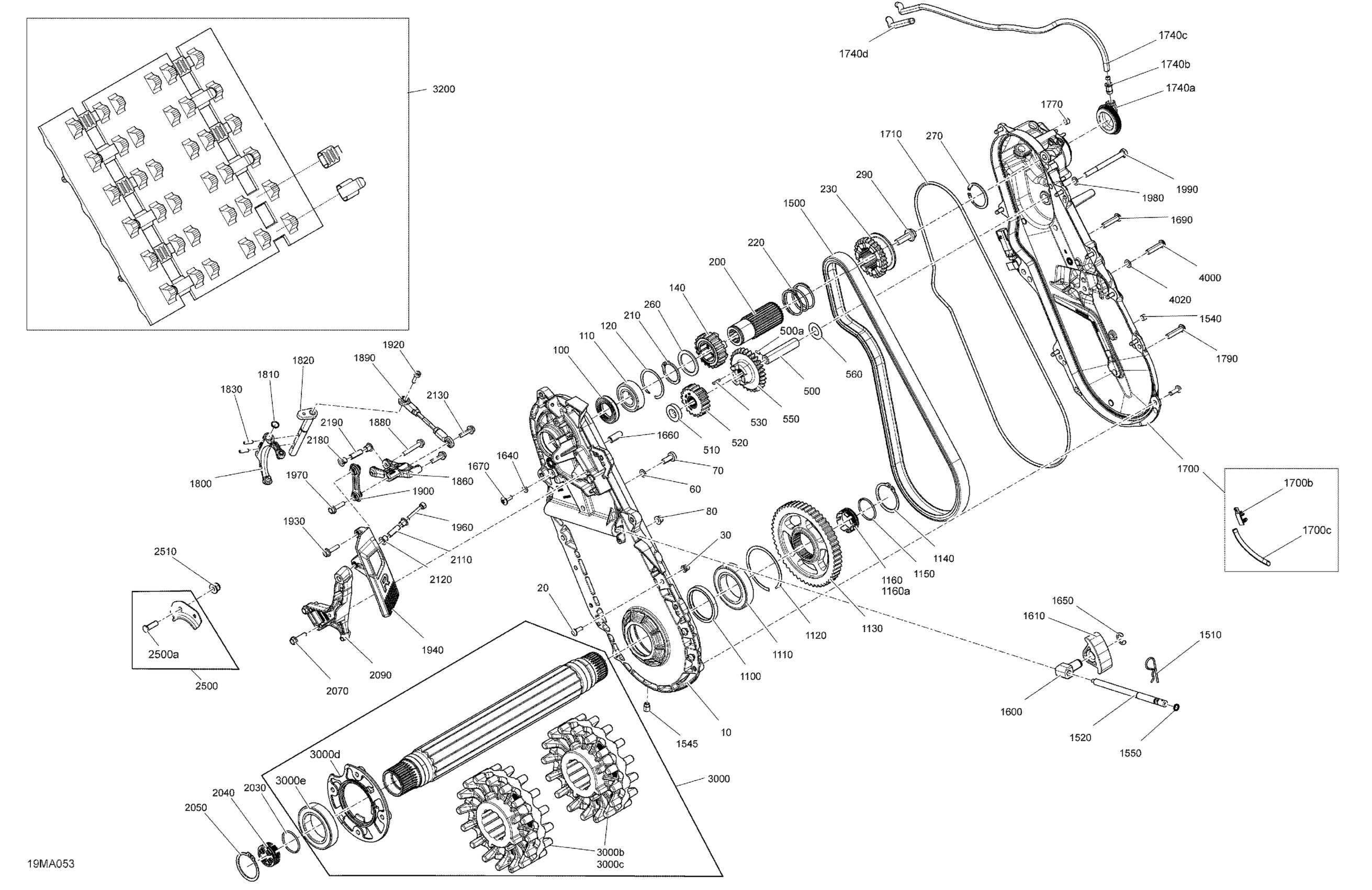

Ski-Doo 002 - TUNDRA 600 ACE - LT - Europe, 2021 04- Drive - System Diagram

Chain Case Ass'y | Includes 10 to 10b

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Washer

Torx Screw M8 X 20, Scotch Grip

Flange Elastic Nut M6

Oil Seal

Ball Bearing

Circlip

Sprocket 21 Teeth Ass'y

Connecting Shaft Ass'y

External Retaining Ring

Spring Release

Sliding Gear 27 Teeth Machined

Washer

Circlip

Hex. Flange Screw M10 X 30, Scotch Grip

Axle Reverse Ass'y | Includes 500 to 500b

Rolled Pin M3 X 10

Ring

Sprocket 19 Teeth Ass'y

Alignement Rod

Gear Straight 29 Teeth Ass'y

Spacer

Oil Seal

Ball Bearing

Circlip

Sprocket 53 Teeth

Circlip

O-Ring

Magnetic Cap | Includes 150c to 150c2

Cap

Drive Chain 116 Links

Hair Pin

Adjustment Screw

Hex. Countersunk Drain Plug

Magnetic Plug

O-Ring

Tensioner

Slider Chain

Copper Washer

Circlip

Slide Chain

Torx Head Screw M6 X 16

Hex. Button Head Screw M8 X 1.25 X 35

Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

Clip Connector

Braided Sleeve

O-Ring

Cap

Straight Fitting

Polyurethane Hose 10000Mm Long

Protector Tube | Not shown

Hex. Countersunk Drain Plug

Hex. Flange Screw M6 X 35

Fork Ass'y

O-Ring

Reverse Axle

Spring Pin M5 X 16

Machined Lever

Hex. Flange Screw M6 X 40, Scotch Grip

Rod Actuating Adjustable Ass'y

Rod Actuating Ass'y

Socket Head Screw M6 X 20, Scotch Grip

Hex. Flange Screw M6 X 25

Reverse Lever

Socket Head Screw M6 X 40, S.GRIP

Hex. Flange Screw M6 X 25

Washer

Hex. Screw M8 X 90

O-Ring

Cap

Circlip

Hex. Flange Screw M6 X 25

Handle Support

Spacer

Bushing

Hex. Flange Screw M6 X 25

Bushing
