Partiron

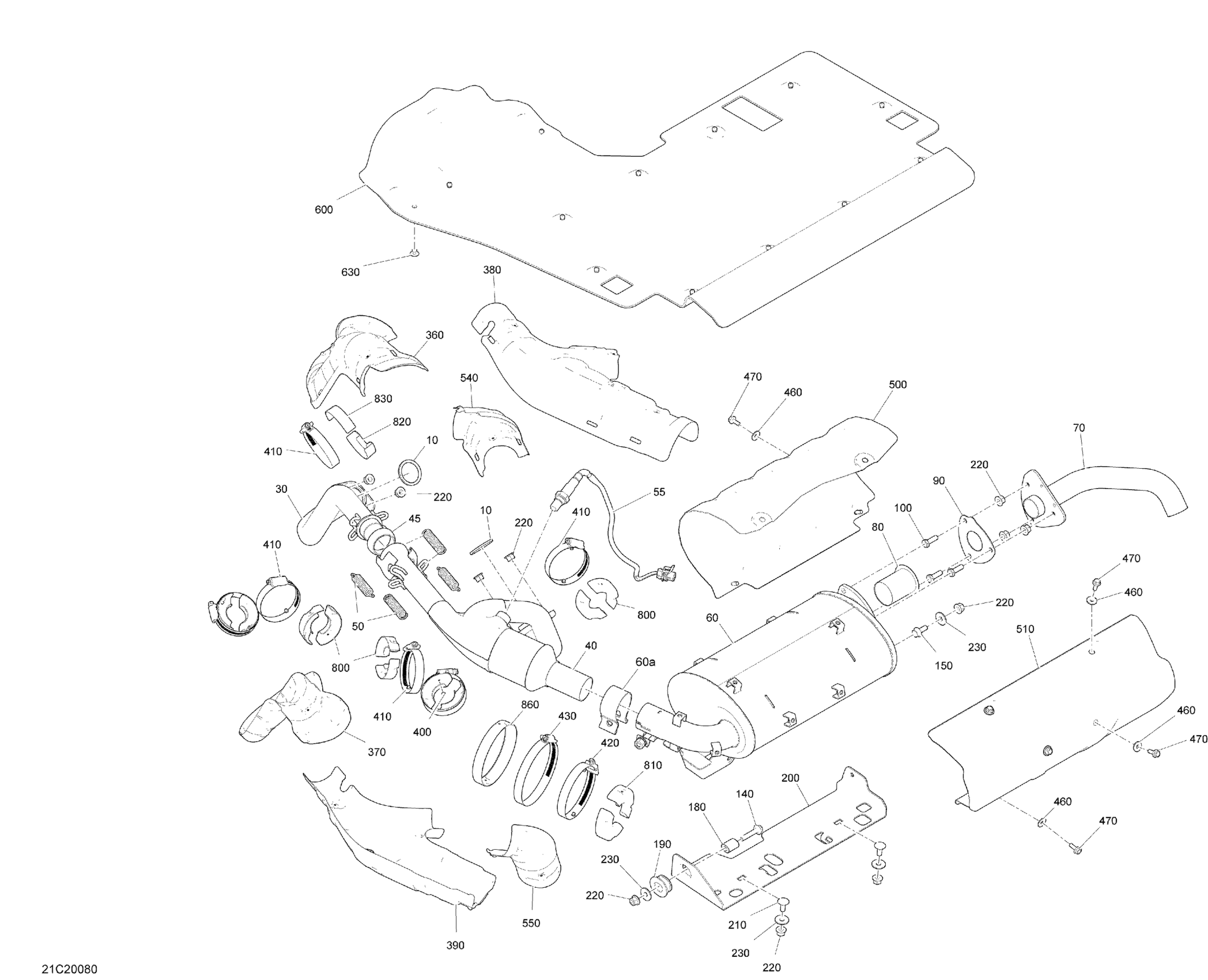

Can-Am Defender HD8 - 2020 Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$10.52

30

Front Exhaust Pipe | Engine HD8

707601913

$166.12

40

Rear Exhaust Pipe | Engine HD8

707601916

$318.43

45

Exhaust Gasket

707601814

$11.83

50

Spring

707601834

$6.20

55

Oxygen Sensor

707600872

$115.67

60

Exhaust Muffler | Include 60a

703501046

$830.74

60a

Exhaust Pipe Clamp

293650228

$11.98

70

Tail Pipe

707602209

$92.28

80

Spark Arrestor

707601803

$50.74

90

Gasket

707602205

$10.98

100

Hex. Screw Cap DIN.933

207182546

$0.83

140

Hex. Flange Screw M8 X 40

207684044

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

180

Spacer

707601969

$15.35

190

Rubber Mount

707602102

$7.60

200

Muffler Support

707601588

$32.28

210

Carriage Bolt, M8 X 20

207782044

$1.56

220

Hex. Flange Nut M8

233081416

$1.63

230

Flat Washer 8 mm

234082410

$1.11

360

Heat Shield, Front

707601923

$27.66

370

Front Heat Shield

707602403

$27.66

380

Heat Shield

707601925

$32.28

390

Heat Shield

707601926

$32.28

400

Pop Rivet 1/8 X

293150071

$0.78

410

Tridon Gear Clamp

293650258

$13.83

420

Tridon Gear Clamp

293650250

$13.83

430

Tridon Gear Clamp

293650261

$6.45

460

Flat Washer 6 mm

234062410

$0.64

470

Hex Flange Screw M6 X 16

250000906

$4.39

500

Heat Shield

707601521

$27.66

510

Heat Shield

707602170

$27.66

540

Heat Shield, Rear

707601927

$16.12

550

Heat Shield, Rear

707601928

$16.12

600

Upper Heatshield

707602927

$272.28

630

Pop Rivet 3/16”

293150108

$1.23

800

Exhaust Pipe Spacer

707602026

$3.98

810

Exhaust Pipe Spacer

707602027

$6.75

820

Exhaust Pipe Spacer

707601948

$6.75

830

Exhaust Pipe Spacer

707602016

$6.75

860

Exhaust Pipe Spacer

707602013

$11.98
