Description

Price

1

Variator Cover

420212730

$184.99

2

Torx Screw M6X13

420240051

$0.90

3

CVT Air Guide | Includes no. 3-7

420212725

$219.99

4

Cap

420441820

$11.63

4a

O-Ring

420250052

$10.43

5

O-Ring

420250050

$10.43

6

Bayonet Cap

420441825

$31.99

7

O-Ring

420250061

$0.95

8

Gasket

420630255

$31.99

9

Hex Screw M6 X 30

420440568

$8.58

10

Governor Cup Ass'y | Includes no. 10-16

420280761

$289.99

11

Stopper Spring

417224910

$10.16

12

Spring Support

420427801

$11.99

13

Thrust Roller Set

420629231

$132.49

14

Thrust Washer

420626235

$2.59

15

Axle - 10mm

417224204

$10.49

16

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

17

Outer Half Ass'y | no. 17. 21-24 included

420280816

$359.99

18

Roller Lever Ass'y

420248728

$29.49

19

Pin Ramp

417224694

$10.49

20

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

21

Roller Set | Includes no. 21-24

420629224

$169.49

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Pin

417224510

$9.95

24

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

25

Compression Spring, Drive Pulley

420638133

$30.49

26

Spring Support

420427809

$11.99

27

Seat Spring

420427354

$10.49

28

Circlip

293370116

$3.28

29

Governor Cup Torque Flange

420280275

$58.99

30

Hex Screw M8 X 2

420841085

$1.90

31

Flasque Fixe Ass.

420280811

$209.99

32

Needle Roller Bearing With Sleeves

420832351

$49.99

33

Washer

420427220

$4.86

34

Stop Sleeve

420660284

$18.49

35

Retaining Ring 35 x 1.5

420845741

$7.99

36

Washer

420245690

$4.86

37

Hexagonal Screw M14X 165

420841161

$29.49

38

Driven Pulley Ass'y | Includes no.38-41

420686774

$889.99

38

OUTER HALF PULLEY ASS'Y - Call your local BRP dealership | Includes no.38-40

420280798

$359.99

39

Slider Shoe

420260344

$13.94

40

Torx Flange Screw M6 X 20

420441835

$3.17

41

Sliding Pulley Ass'y

420280788

$349.99

42

Compression Spring

420238176

$35.99

43

Spring Support

420427321

$12.49

44

Holding Strip

420427331

$7.20

45

Retaining Ring 32.8

420245945

$1.09

46

V-Belt

422280225

$154.99

47

Thrust Washer

420627695

$9.64

48

Hex. Screw M10 X 110

420441485

$12.18

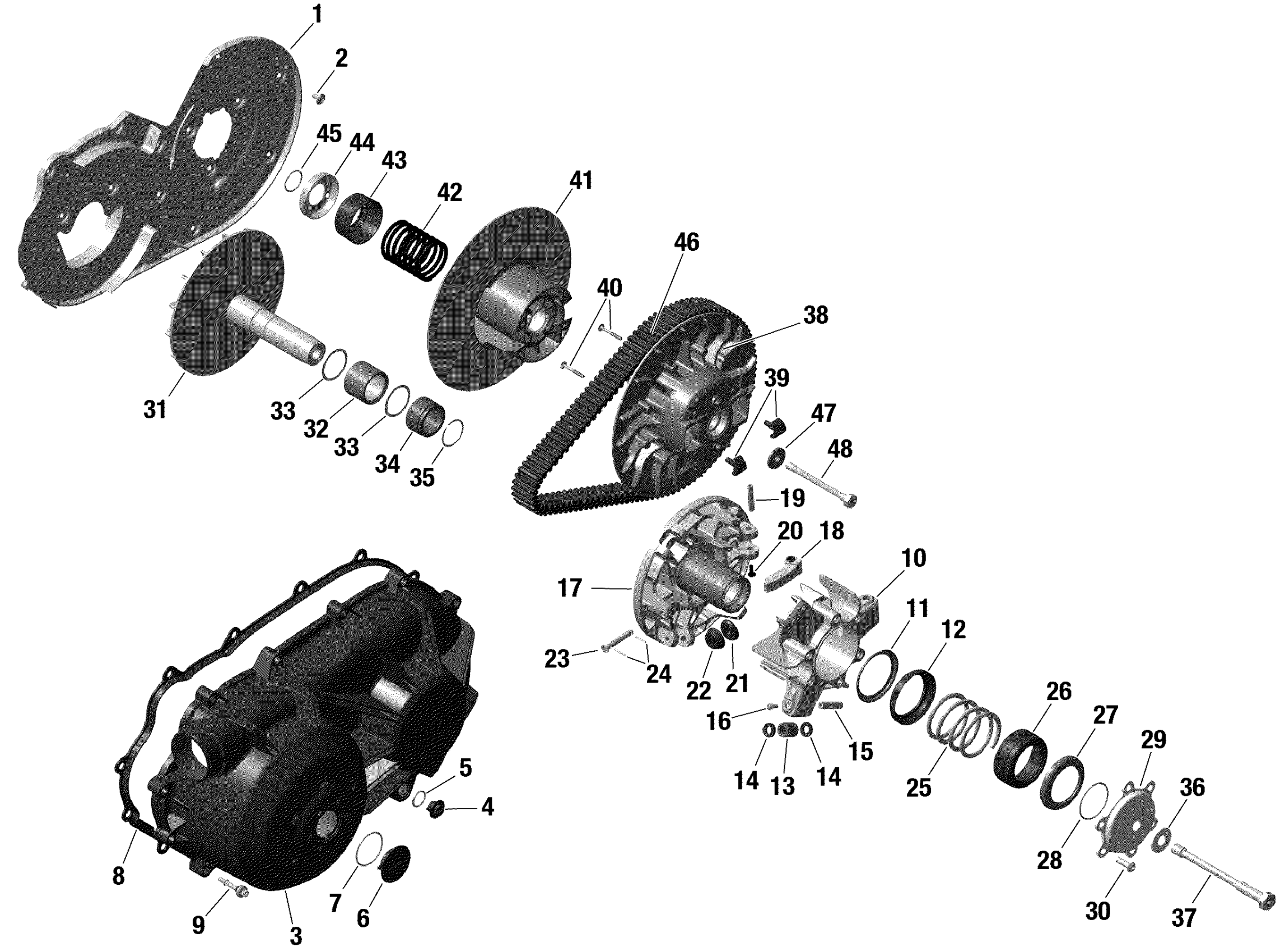

Can-Am 002 - Traxter T HD7 - XU - T Regulation, 2022 01- ROTAX - CVT - 1 Diagram

Variator Cover

Torx Screw M6X13

CVT Air Guide | Includes no. 3-7

Cap

O-Ring

O-Ring

Bayonet Cap

O-Ring

Gasket

Hex Screw M6 X 30

Governor Cup Ass'y | Includes no. 10-16

Stopper Spring

Spring Support

Thrust Roller Set

Thrust Washer

Axle - 10mm

Torx-Truss M/S M5 X 14 S.Grip

Outer Half Ass'y | no. 17. 21-24 included

Roller Lever Ass'y

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

Roller Set | Includes no. 21-24

Not Available As Spare Part - Friction Washer

Pin

Spring Pin 2.6MM X 20.5MM

Compression Spring, Drive Pulley

Spring Support

Seat Spring

Circlip

Governor Cup Torque Flange

Hex Screw M8 X 2

Flasque Fixe Ass.

Needle Roller Bearing With Sleeves

Washer

Stop Sleeve

Retaining Ring 35 x 1.5

Washer

Hexagonal Screw M14X 165

Driven Pulley Ass'y | Includes no.38-41

OUTER HALF PULLEY ASS'Y - Call your local BRP dealership | Includes no.38-40

Slider Shoe

Torx Flange Screw M6 X 20

Sliding Pulley Ass'y

Compression Spring

Spring Support

Holding Strip

Retaining Ring 32.8

V-Belt

Thrust Washer

Hex. Screw M10 X 110
