Description

Price

10

Fuel Tank

709000591

$309.99

10a

Fuel Pump Module Nut

709000328

$13.75

20

Seal

709000208

$14.99

30

Fuel Pump | Includes 30 to 30a

709001189

$340.99

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

40

Hose Filler Neck

709000595

$31.99

50

Norma Clamp

293650081

$12.18

60

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Filler Neck Nut, Fuel

211100012

$14.22

90

Fuel Cap

709000868

$32.99

120

Fuel Tank Strap

709000521

$41.49

140

Fuel Tank Strap

709000648

$41.49

150

Flat Washer 8 mm

234081410

$0.83

160

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

Was 709000163 Fuel Line

219704440

$28.99

205

Tubing 16 Mm 1000Mm Long

219704408

$7.49

210

Y-Fitting, 5/16''

293710136

$6.49

220a

Was 709000163 Fuel Line

219704440

$28.99

230a

Was 709000163 Fuel Line

219704440

$28.99

235a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

250a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

260

Tie-Rap 180 mm

414115200

$0.11

300

Crimp Clamp, 15.3-706R

293650047

$3.29

310

Crimp Clamp, 15.3-706R

293650047

$3.29

320

Crimp Clamp, 15.3-706R

293650047

$3.29

330

Crimp Clamp, 15.3-706R

293650047

$3.29

340

Crimp Clamp, 15.3-706R

293650047

$3.29

350

Crimp Clamp, 15.3-706R

293650047

$3.29

400

Quick Attach 90°

275500700

$16.49

410

Quick Attach 90°

275500700

$16.49

500

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

520

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

530

Check Valve

513033469

$31.99

540

Check Valve

275500398

$10.99

545

Y-Fitting

293710059

$9.69

560

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

570

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

575

Filter

709000330

$7.79

988

Tie Wrap 142 mm

293750002

$1.25

988

Tie Wrap 368 mm

293750008

$1.04

988

Tie-Rap 180 mm

414115200

$0.11

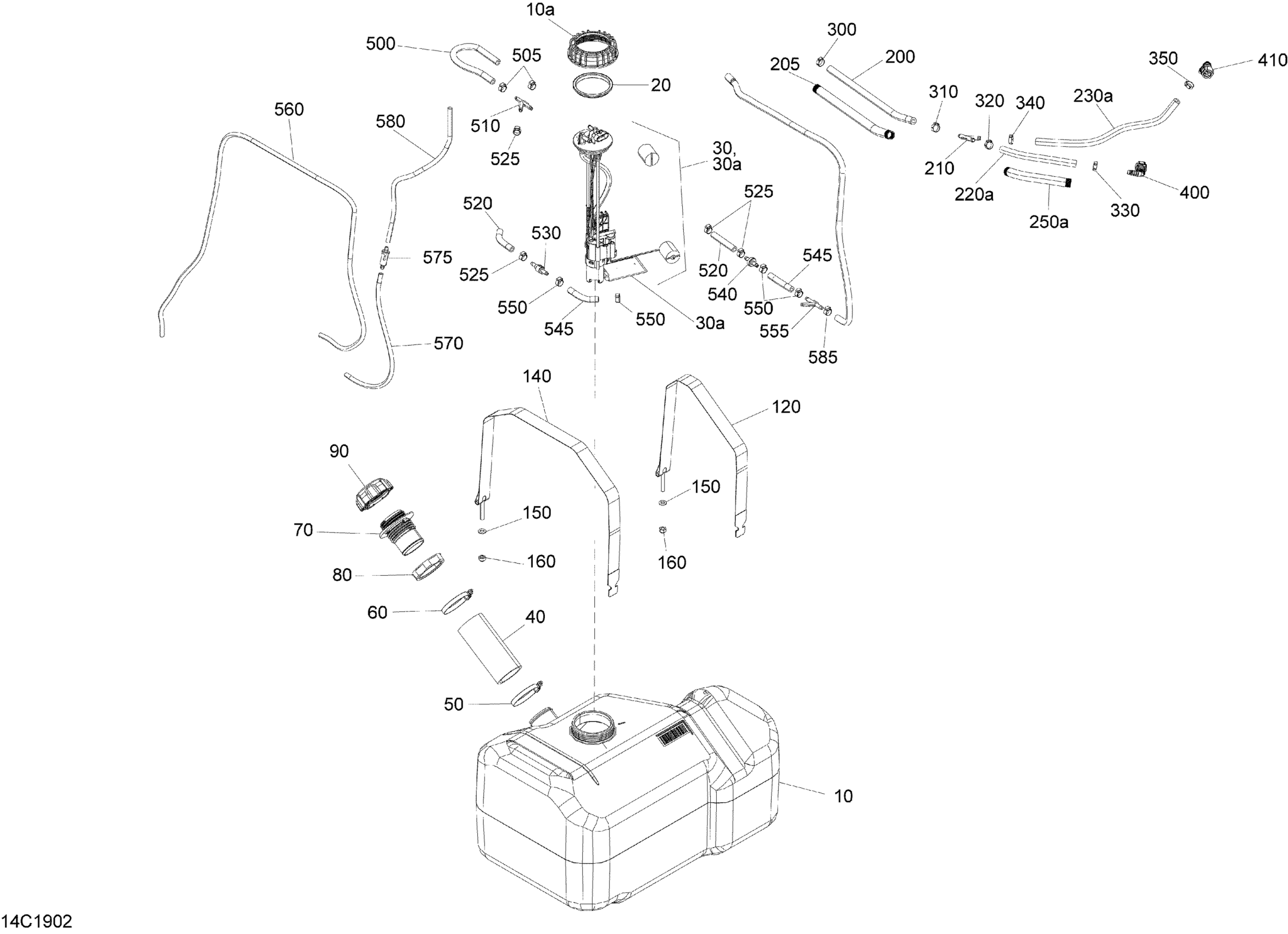

Can-Am 002 - Traxter HD8 - T1B Series, 2019 02- Fuel - No EVAP Diagram

Fuel Tank

Fuel Pump Module Nut

Seal

Fuel Pump | Includes 30 to 30a

Prefilter Fuel Pump Kit 86mm Long

Hose Filler Neck

Norma Clamp

Norma Clamp

Filler Neck

Filler Neck Nut, Fuel

Fuel Cap

Fuel Tank Strap

Fuel Tank Strap

Flat Washer 8 mm

Hex. Elastic Nut M8 Brass

Was 709000163 Fuel Line

Tubing 16 Mm 1000Mm Long

Y-Fitting, 5/16''

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Tubing 16 Mm 1000Mm Long

Tubing 16 Mm 1000Mm Long

Tie-Rap 180 mm

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Quick Attach 90°

Quick Attach 90°

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Check Valve

Check Valve

Y-Fitting

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Filter

Tie Wrap 142 mm

Tie Wrap 368 mm

Tie-Rap 180 mm
