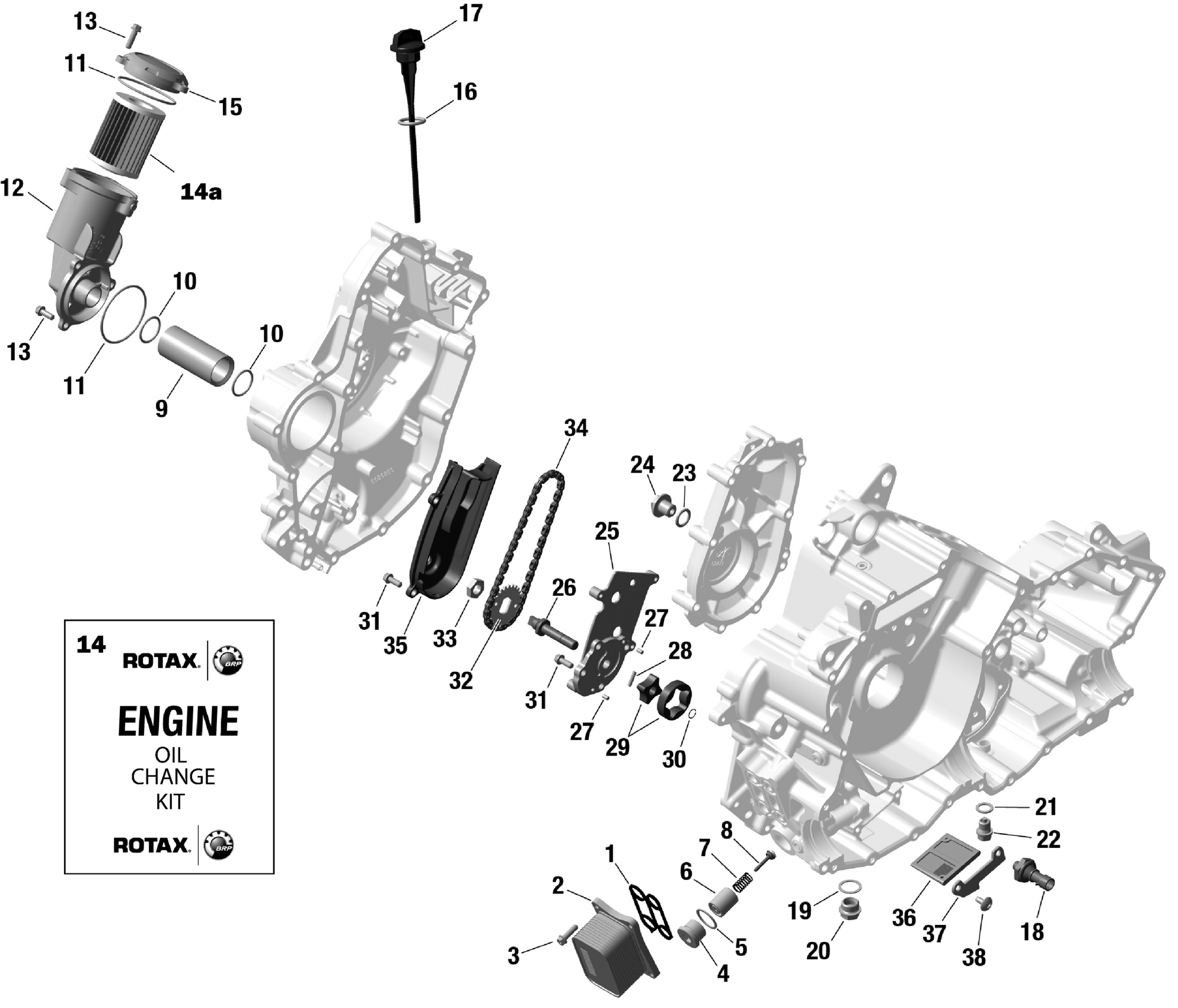

Can-Am Defender HD7 - BASE - 2023 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Gasket | Included in gasket kit

420431876

$27.49

2

Radiator

420890181

$95.49

3

Torx Flange Screw M6 X 16

420440164

$2.19

4

Plug Screw

420640271

$13.77

5

Gasket Ring

420650465

$13.16

6

Housing

420256487

$7.41

7

Compression Spring

420939485

$12.99

8

Pressure Relief Valve

420656370

$19.19

9

Oil Pipe

420856880

$23.99

10

O-Ring | Included in gasket kit

420631618

$0.92

11

O-Ring | Included in gasket kit

420230922

$0.92

12

Oil Filter Housing

420611210

$22.99

13

Torx Flange Screw M6 X 16

420440164

$2.19

14

CAN-AM Oil Change Kit 5W40 ACE 650C

9779480

$64.99

14

CAN-AM Oil CHange Kit 0W40 ACE 650CC Single Cylinder

9779481

$68.99

14a

Oil Filter

420256188

$13.77

15

Oil Filter cover

420612135

$11.63

16

O-Ring

420631641

$1.01

17

Oil Lever Tube

420256821

$17.68

18

Oil Pressure Switch

420256915

$40.99

19

Crush Washer

420552280

$3.70

20

Drain Plug M18 X 1.5

420840278

$23.99

21

Copper Washer

420250640

$0.98

22

Magnetic Drain Plug M12

420241787

$17.99

23

O-Ring

420650352

$0.90

24

Plug Screw M14 X 1.5

420241662

$15.81

25

Oil Pump Cover

420210655

$47.49

26

Oil Pump Shaft

420220862

$45.49

27

Needle Pin

420929075

$2.11

28

Needle Pin

420232731

$4.01

29

Oil Pump Rotor Set

420256355

$38.99

30

Retaining Ring | Included in gasket kit

420245100

$1.47

31

Torx Flange Screw M6 X 16

420440164

$2.19

32

Drive Gear 25 Teeth

420254441

$7.30

33

Hexagonal Nut M12 X 1

420642059

$9.48

34

Silent Chain

420297055

$51.99

35

Chain Guide

420251341

$15.81

36

Oil Sieve

420256585

$30.49

37

Cover Sieve

420612072

$4.14

38

Torx Screw M6X13

420240051

$0.90
