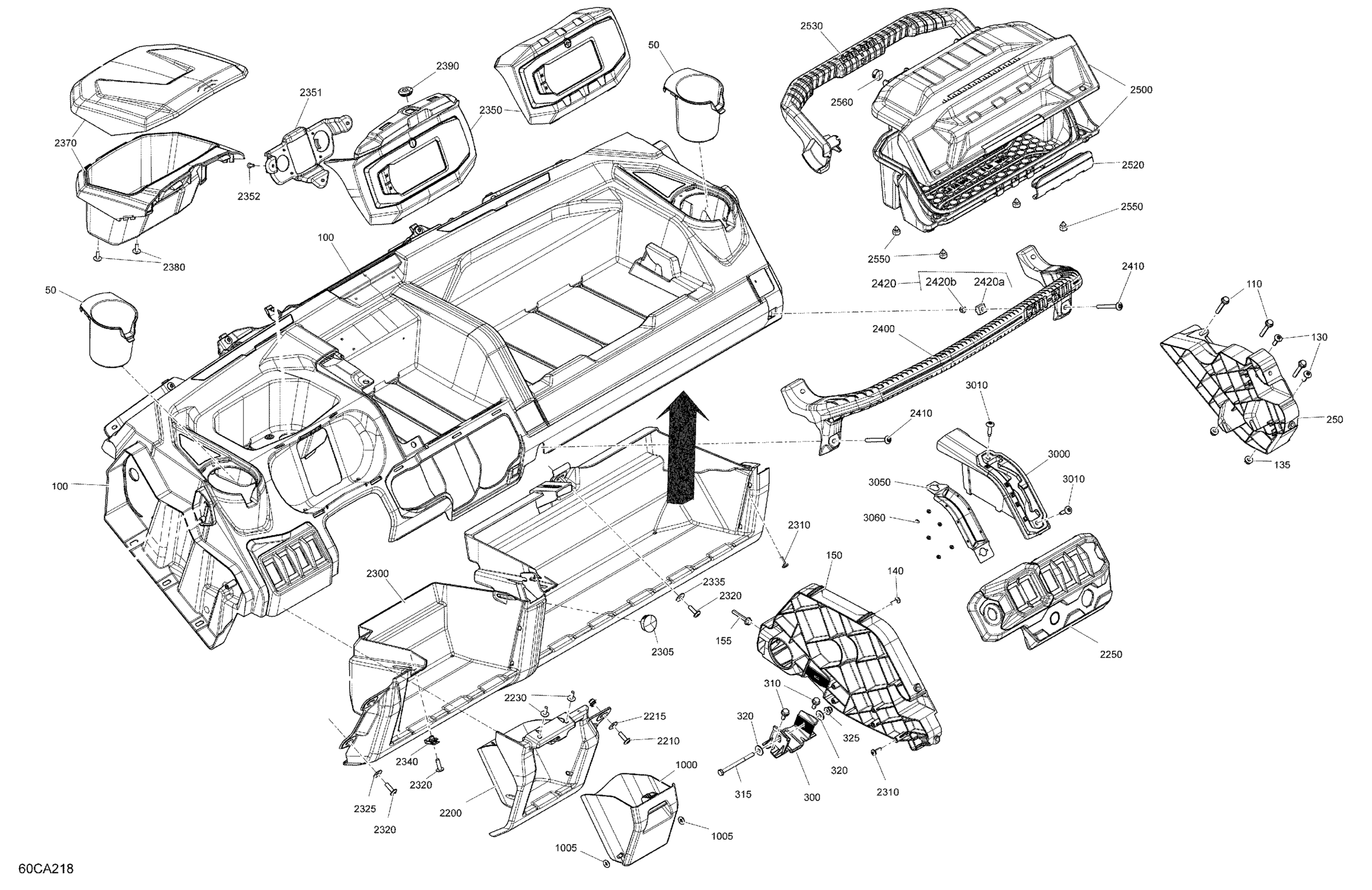

Can-Am Traxter HD10 - XT - CE, 2021 Cab Interior - Dashboard Diagram

#

Description
Price

50

Cup Holder

707900288

$16.99

100

Upper Dashboard Ass'y

715007223

$194.99

110

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

130

Torx Screw M6 X 20

250000722

$1.68

135

Hex. Elastic Flange Nut M6

233161464

$1.01

140

Torx Screw K50 X 16

250000720

$1.69

150

Dash Support

707900249

$65.99

155

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

250

RH Support

707900367

$38.99

300

Plier

707900940

$5.39

310

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

315

Hex. Screw M6 X 80

207068044

$4.12

320

Stainless Steel Flat Washer

234062670

$2.11

325

Hex. Flange Elastic Nut M6

233261494

$1.58

1000

Drawer

707900252

$20.99

1005

O-Ring

293300194

$1.25

2200

LH Lower Dash | Except Base Package

707900251

Unavailable

2210

Torx Screw M6 X 20

250000722

$1.68

2215

Stainless Steel Flat Washer

234062670

$2.11

2230

Screw PT Type K-50 X 16

250000959

$2.11

2250

Switch Support | XTP

707900705

$18.54

2300

RH Lower Dash | Except Base, Cab Package

707900250

$66.99

2305

Cap

710004993

$7.69

2310

Torx Screw K50 X 16

250000720

$1.69

2320

Torx Screw M6 X 20

250000722

$1.68

2325

Stainless Steel Flat Washer

234062670

$2.11

2335

Stainless Steel Flat Washer

234062670

$2.11

2340

Panel Nut M6 X 1.0

250100198

$2.11

2350

Gauge Support

707900891

$22.99

2351

Rear Gauge Support

707900922

$22.49

2352

Torx Truss Screw K40 X 12

250000577

$2.11

2370

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$43.99

2380

Screw PT Type K-50 X 16

250000959

$2.11

2390

Grommet

705003264

$4.09

2400

Passenger Handhold

707900248

$49.99

2410

Torx Screw M6 X 60

250000648

$7.51

2420

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

2420a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

2420b

Hex. Elastic Stop Nut M6

232561600

$1.15

2500

Removable Storage Bin

715004344

$88.99

2520

Clip | Outlander Max

269501945

$15.89

2530

Handle | DPS Package

707900567

$19.99

2550

Rubber Bumper

293830005

$8.09

2560

Cap

293000120

$2.89

3000

Shifter Gate

707900608

$8.99

3010

Torx Screw M6 X 25 | XT Models

250000728

$4.44

3050

Shifter Gate Deflector

707900506

$5.69

3060

Push Nut

250100178

$0.63
