Partiron

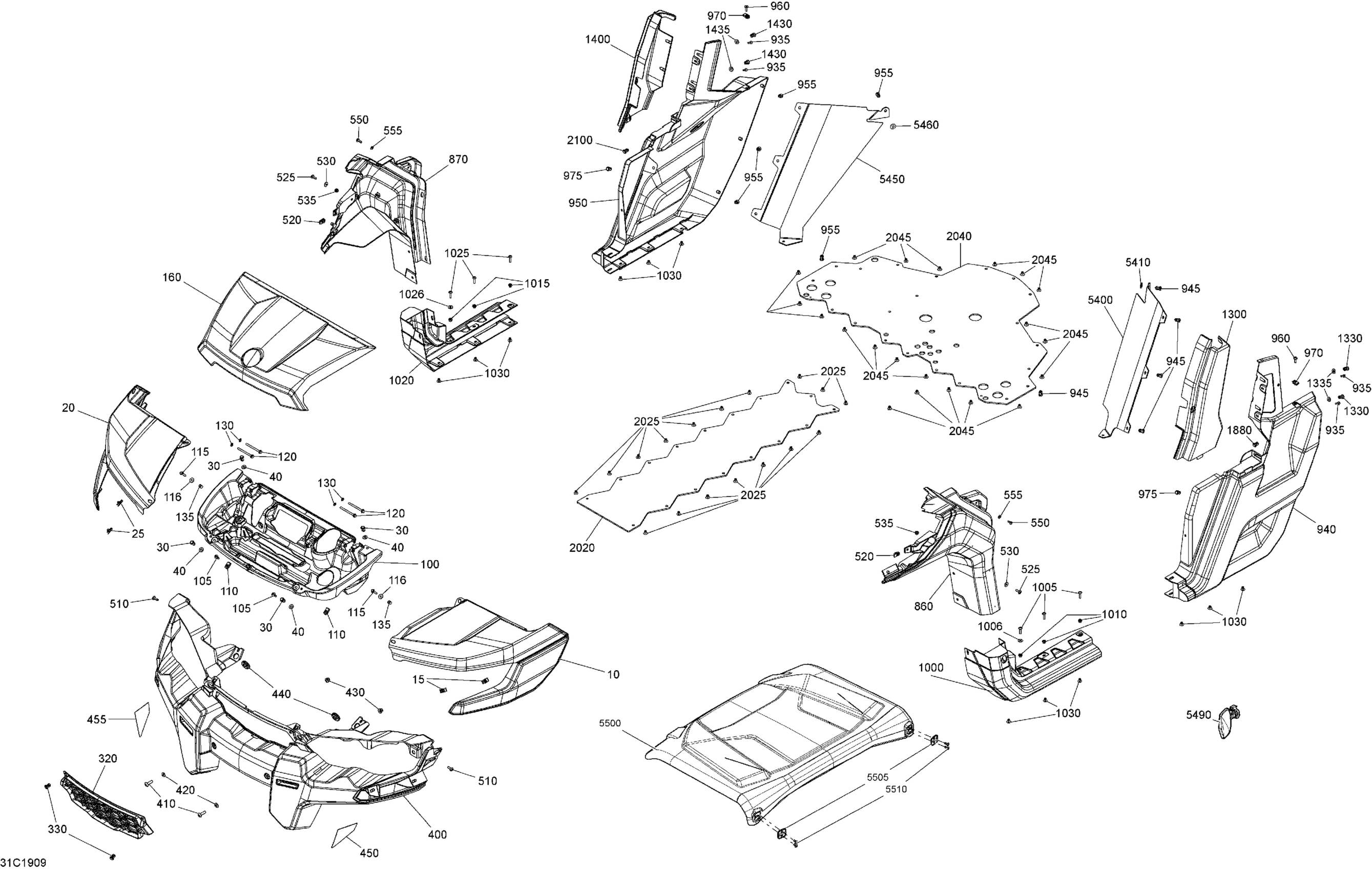

Can-Am Defender HD8 - 2019 Body - Hyper Silver Diagram

#

Description
Price

10

Hyper Silver, LH Front Fender

705015671

$204.99

15

Panel Nut M6 X 1.0

250100198

$2.11

20

Hyper Silver, RH Front Fender

705015672

$204.99

25

Panel Nut M6 X 1.0

250100198

$2.11

30

Tuflok Plastic Rivet

293150230

$1.47

40

Washer

503192494

$3.17

100

Service Center

705011391

$64.99

105

Torx Screw M6 X 20

250000722

$1.68

110

Panel Nut M6 X 1.0

250100198

$2.11

115

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

116

Stainless Steel Flat Washer

234062670

$2.11

120

Hex. Flange Screw M6 X 75

207667554

$4.44

130

Push Nut

732610072

$2.19

135

Bushing

293900125

$2.69

160

Hyper Silver, Hood

705013158

$389.99

320

Grid Front Fascia

705009364

$28.99

330

Tuflok Plastic Rivet

293150230

$1.47

400

Front Facia

705011392

$254.99

410

Torx Screw M8 X 30

250000886

$2.11

420

Washer

503192494

$3.17

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$13.49

455

RH Front Reflector

704905073

$13.49

510

Torx Screw M6 X 20

250000722

$1.68

520

Panel Nut M6 X 1.0

250100198

$2.11

525

Torx Screw M6 X 20

250000722

$1.68

530

Stainless Steel Flat Washer

234062670

$2.11

550

Torx Screw K50 X 16

250000720

$1.69

555

Flat Washer M5

234051670

$2.11

860

LH Front Lateral Panel

705008152

$62.99

870

RH Front Lateral Panel

705008153

$62.99

935

Torx Screw K50 X 16

250000720

$1.69

940

Rear LH Side Panel | Order 705012704 panel + 414916600 Nylon Cap

705012704

$93.99

941

Black, Nylon Cap

414916600

$4.69

945

Tuflok Plastic Rivet

293150230

$1.47

950

RH Rear Side Panel

705012705

$114.99

955

Tuflok Plastic Rivet

293150230

$1.47

960

Torx Screw M6 X 20

250000722

$1.68

970

Panel Nut M6 X 1.0

250100198

$2.11

975

Tuflok Plastic Rivet

293150230

$1.47

1000

Deep Black, LH Central Panel

705019037

$71.99

1005

Torx Truss Screw M6 X 25

250000807

$2.11

1006

Stainless Steel Flat Washer

234062670

$2.11

1020

Deep Black, RH Central Panel

705019038

$74.99

1025

Torx Truss Screw M6 X 25

250000807

$2.11

1026

Stainless Steel Flat Washer

234062670

$2.11

1030

Pop Rivet 3/16”

293150108

$1.19

1035

Pop Rivet 3/16”

293150108

$1.19

1300

LH Rear Cage Cover Kit

715003564

$82.99

1330

Tuflok Plastic Rivet

293150230

$1.47

1335

Washer

503192494

$3.17

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

1430

Tuflok Plastic Rivet

293150230

$1.47

1435

Washer

503192494

$3.17

1880

Tuflok Plastic Rivet

293150230

$1.47

2020

Central Skid Plate

705009151

$62.49

2025

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2040

Rear Skid Plate

705011292

$88.99

2045

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2050

Lateral Skid Plate

705010422

$86.99

2055

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2100

Tuflok Plastic Rivet

293150230

$1.47

3000

Panoramic Center Mirror Kit | Package XTP

715003638

$104.99

5400

LH Rear Deflector

705010426

$53.99

5410

Flat Washer 8 mm, Nylon

292001663

$1.47

5450

RH Rear Deflector

705010427

$53.99

5460

Flat Washer 8 mm, Nylon

292001663

$1.47

5490

Side Mirror | Package Hunter

715002459

$127.99

5490a

Plate

705010469

$16.37

5500

Sport Roof Kit

715002430

$549.99

5505

Roof Cap

705800058

$3.99

5510

Torx Truss M8 X 25

250000874

$2.11

6010

Hex. Nut M8

232081414

$0.72

6015

Flat Washer 8 mm

234082410

$1.47

6020

Torx Truss M8 X 25

250000874

$2.11

6025

Torx Screw Truss Head K50X20 T20

250000760

$2.11

6030

Flat Washer M6.6 X 22

250200162

$2.32

6035

Torx Truss M8 X 25

250000874

$2.11

6040

Roof Anchor

705800131

$9.29

6055

Roof Cap

705800058

$3.99

6060

Torx Truss Screw M6 X 25

250000807

$2.11

6065

Torx Truss Screw M6 X 25

250000807

$2.11

6070

Torx Truss Screw M6 X 25

250000807

$2.11

6075

Stainless Steel Flat Washer

234062670

$2.11

6080

Torx Truss Screw M6 X 25

250000807

$2.11

6085

Stainless Steel Flat Washer

234062670

$2.11
