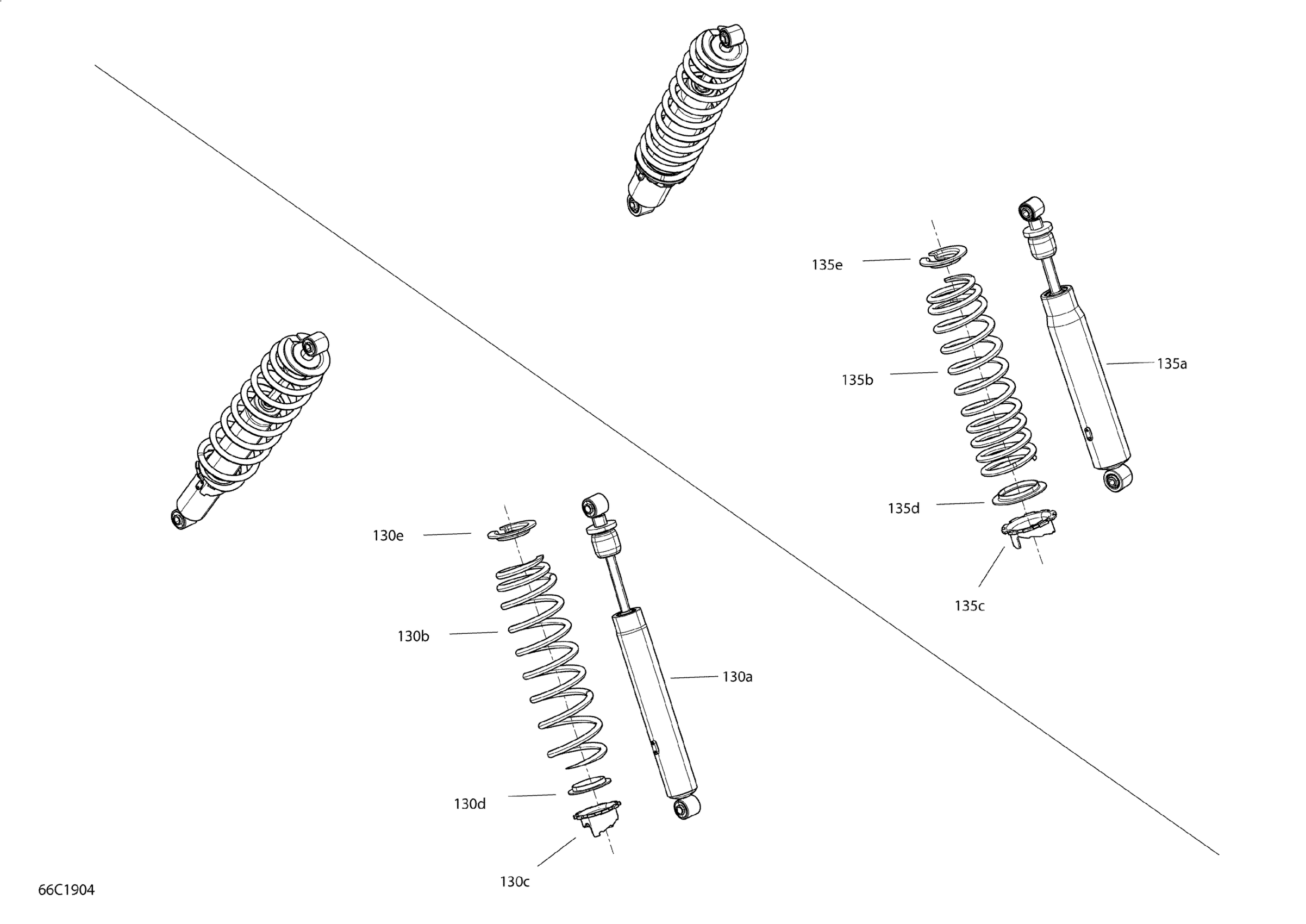

Can-Am Defender HD10 - 2019 Shocks - XMR Diagram

Description

Price

130a

Front Shock Absorber

706203374

$194.58

130b

Sunburst Yellow, Front Spring | Sunburst Yellow

706203448

$119.97

130b

Deep Black, Spring | Camo

706203450

$119.97

130c

Adjustment Ring

706000910

$14.37

130d

Protector Ring | STD, XT

706000911

$7.60

130e

Spring Cup

706001894

$14.75

135a

Rear Shock Absorber

706002853

$151.04

135b

SPRING COMPRESSION R B-354 - Call your local BRP dealership | Sunburst Yellow

706003391

$108.43

135b

Deep Black, Rear Compression Spring | Camo

706003197

$119.97

135c

Adjustment Ring

706000910

$14.37

135d

Protector Ring | STD, XT

706000911

$7.60

135e

Spring Cup

706001894

$14.75
