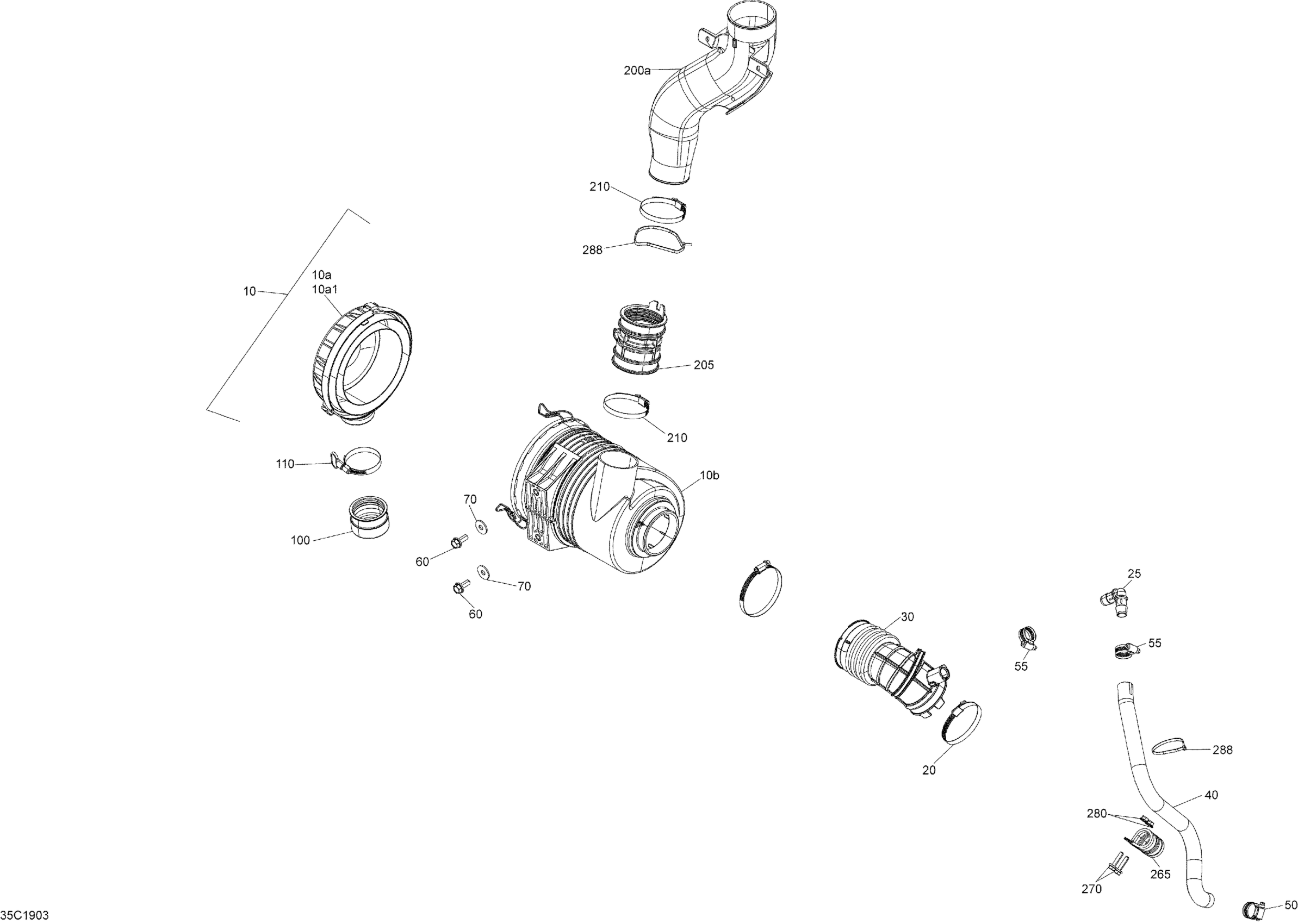

Can-Am Defender HD10 - 2019 Air Intake - HD10 - XMR Diagram

#

Description
Price

10

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$175.35

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$87.66

10a1

O-Ring

715900514

$17.66

10b

Air Filter

715900394

$50.34

20

Norma Clamp

293650091

$4.60

25

Elbow Fitting 90

293710155

$8.45

30

Air Intake Adaptor

707800759

$27.66

40

Blow-By Hose | Engine HD8

707800716

$27.66

50

Tridon Gear Clamp

293650173

$2.46

55

Tridon Gear Clamp

293650173

$2.46

60

Hex. Flange Screw M8 X 20

207682044

$0.92

70

Flat Washer 8 mm

234082410

$1.11

100

Vacuator Cap

707800769

$36.89

110

Turn Key Clamp

293650269

$7.37

200a

Air Inlet Tube | Includes 600 to 600b

706600280

$50.74

200b

Cap

293000123

$7.69

205

Flexible Joint

706600203

$27.66

210

Norma Clamp

293650091

$4.60

210

Norma Clamp

293650096

$3.09

210

Norma Clamp

293650091

$4.60

265

Hose Anchor

709200036

$10.83

270

Hex. Flange Screw M6 X 25

207662544

$0.53

280

Hex. Flange Nut M6

233061414

$1.34

288

Tie Wrap 368 mm

293750008

$0.85
