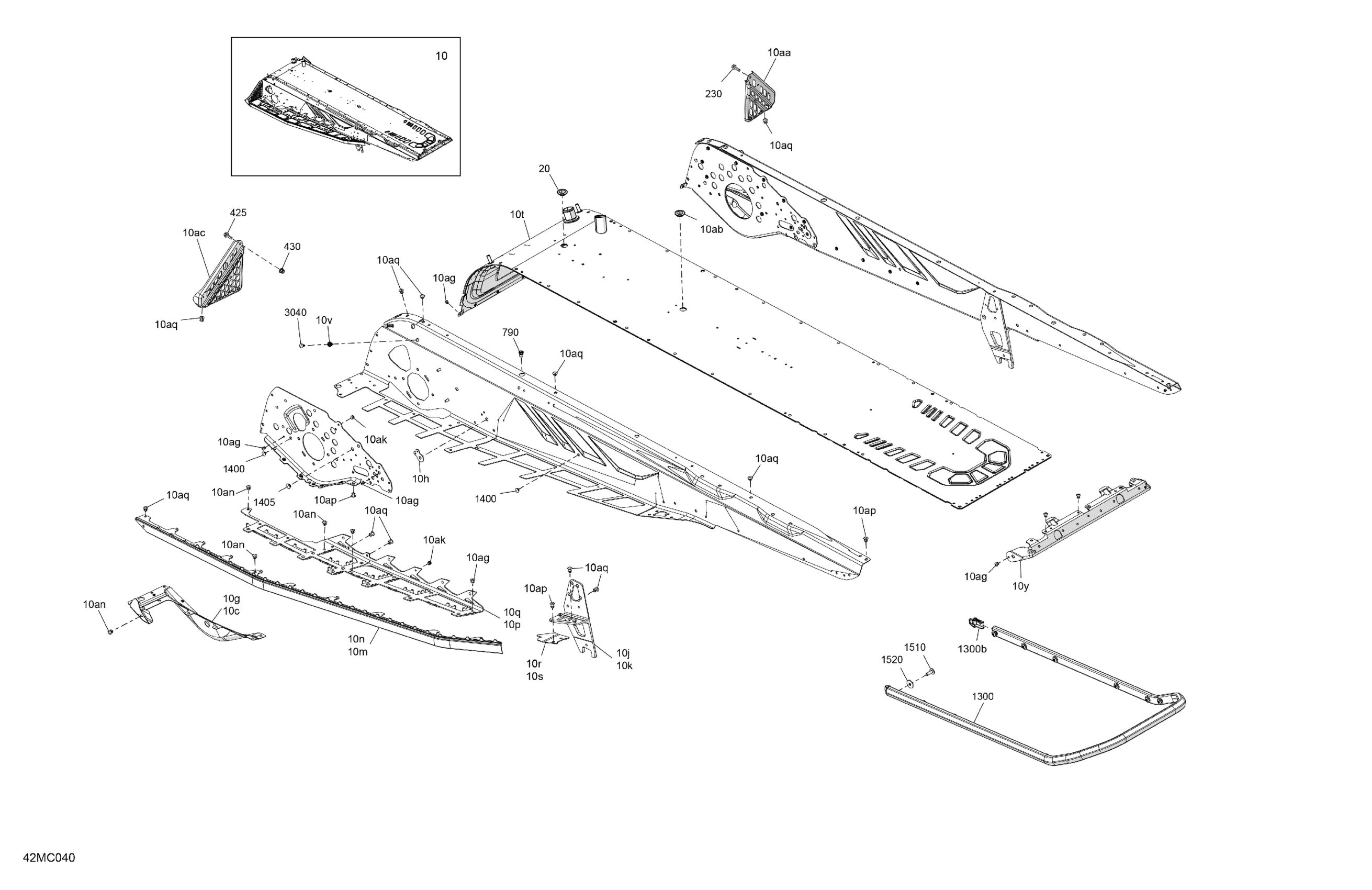

Ski-Doo 002 - SUMMIT 850 E-TEC - SP - Package 154" North America, 2023 06- Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10aq

415130608

$3.00

10c

RH Footrest Reinforcement

518332455

$88.99

10g

LH Footrest Reinforcement

518332456

$88.99

10h

Front Suspension Arm Reinforcement

518335959

$4.19

10j

LH Rear Suspension Support

518332875

$94.99

10k

RH Rear Suspension Support

518332876

$45.99

10m

Formed Boarding Step Rg

518332841

$194.99

10n

Formed Boarding Step

518332842

$194.99

10p

RH Tunnel Liner

518332854

$65.99

10q

LH Tunnel Liner

518332855

$65.99

10r

LH Rear Footrest Reinforcement

518333048

$19.99

10s

RH Rear Footrest Reinforcement

518333049

$19.99

10t

Radiator Tunnel 154 Ass'y

518334492

$739.99

10v

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10y

Rear Cap

518328990

$22.49

10aa

RH Footrest

518332462

$44.99

10ab

Black, Plug

293730052

$9.19

10ac

LH Footrest

518332463

$44.99

10ag

Rivet Avibulb 3/16

293150203

$2.09

10ak

Henrob Rivet

293150245

$1.69

10an

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10ap

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10aq

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$154.49

1300b

Cap

520001612

$10.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

3040

Dart

293730079

$2.09
