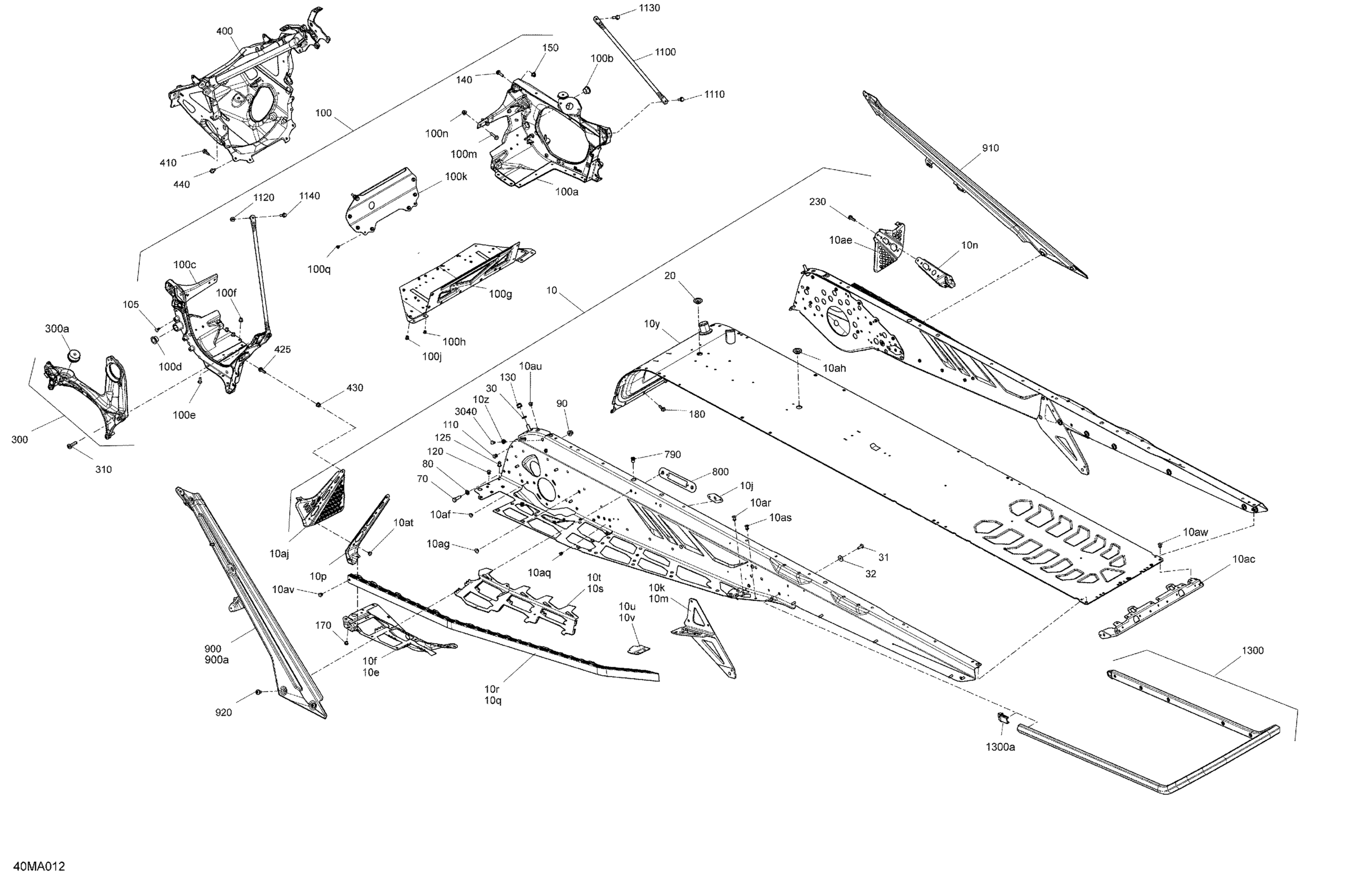

Ski-Doo SUMMIT 850 E-TEC - SP - 2021 Frame - System - SP - 175 Diagram

MODULE_CHASSIS TUNNEL 175 B-160 - Call your local BRP dealership | Model with 175" rear suspension

415130398

Unavailable

RH Footrest Reinforcement

518332578

$79.07

LH Footrest Reinforcement

518332577

$79.07

Reinforcement Plate

518326647

$4.21

LH Suspension Bracket

518329061

$41.76

RH Suspension Bracket

518329062

$41.76

Stirrup Reinforcement

518331253

$17.88

Deep Black, LH Chasssis Reinforcement

518331560

$17.88

RH Roller

518328451

$175.34

LH Roller

518328452

$175.34

RH Tunnel Liner

518329646

$32.06

LH Tunnel Liner

518329647

$32.06

LH Reinforcement Plate

518329088

$2.99

RH Reinforcement Plate

518329089

$4.09

Radiator Tunnel 175 Ass'y | Model with 175" rear suspension

518332556

$672.36

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Rear Cap

518328990

$20.12

RH Footrest

518328460

$37.28

Black, Dart 8 mm

293730047

$2.07

Black, Dart 10 mm

293730060

$4.28

Black, Plug

293730052

$6.18

LH Footrest

518333007

$37.28

Rivet Avibulb 3/16

293150203

$0.28

Rivet

293150183

$2.00

Hemlock Rivet 6.5 mm

293150120

$7.01

Hemlock Rivet, 6.5 mm

293150096

$3.07

Hemlock Rivet, 6.5 mm

293150119

$3.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Black, Plug

293730052

$6.18

Flat Washer 8 mm

234081410

$0.79

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27

Hex Screw M8 X 30

250000942

$1.06

Flat Washer 8 mm

234081410

$0.79

Hex. Flange Elastic Nut M8

233281414

$1.31

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

RH Member Ass'y | Includes 100a to 100a3

518332687

$202.21

Leg Bushing

505072690

$5.75

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$181.31

Leg Bushing

505072690

$5.75

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

Collar Huck Magna-Grip 6.4

293150149

$0.36

Bottom Plate

518332716

$33.55

Rivet Avibulb 3/16

293150203

$0.28

Insert M5 X 0.8

293450268

$1.90

Front Member

518330100

$54.45

Hex. Flange Screw M6 X 25

250000945

$4.15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Rivet Avibulb 3/16

293150203

$0.28

Dart

293730079

$1.87

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Hemlock Rivet 6.5 mm

293150120

$7.01

Hex. Flange Elastic Nut M8

233281414

$1.31

Hex. Flange Screw M6 X 20

207662046

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Insert M5 - 0.8

293450267

$4.09

Hex. Flange Screw M6 X 16

207661646

$1.15

Hex. Flange Screw M6 X 20

207562056

$2.00

LH Side Member Ass'y | Includes 300 to 300a

518333692

$262.66

Vibration Damper

512061516

$55.94

Screw-Pan HD.Torx M8X30

250001060

$0.75

Chassis Suspension Module

518334459

$633.55

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

Hex. Flange Screw M6 X 20

207562056

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Hex. Flange Screw M6 X 16

207661636

$1.03

Insert

293450278

$3.97

Member Fixation Plate

518329480

$9.73

Can-Am Red, LH Rear Diag Cross Member | Model Deep Black

518331052

$105.19

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

RH Rear Diagonal Cross Member

518330885

Unavailable

Can-Am Red, RH Rear Diag Cross Member | Red

518331053

$105.19

Black, RH Member Ass'y | Black

518330880

$105.19

Pan Head Torx Screw M8 X 12

250000887

$1.79

Upper Colomn Support

518329974

$20.12

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.79

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Hex. Flange Screw M6 X 25

207662556

$4.15

Hex. Flange Screw M6 X 20

207662046

$2.00

Rear Bumper 175 | Model with 175" rear suspension

518328834

$127.58

Cap

520001612

$8.36

Dart

293730079

$1.87
