Description

Price

10a

Rail_Suspension 154 Ecoat | Model Deep Black

503195480

$309.99

10b

Slider 154

503194251

$34.99

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561434

$1.99

10e

Rail Protector

503196874

$24.49

10f

Washer

250200140

$1.01

10g

Hex. Flange Screw M5 X 25

207652544

$0.50

10h

Flange Elastic Nut M5

233251434

$2.00

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rubber Stopper Ass'y

503195523

$5.59

315

Washer

503191273

$1.35

316

Pop Rivet 3/16

293150224

$1.01

610

Rear Axle

503194261

$70.99

620

Spacer

503194280

$17.99

630

Bushing

503194286

$17.49

660

End Piece

503195678

$19.99

670

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$51.99

670a

Ball Bearing | Package-STD

503190396

$14.30

670b

Retaining Ring

415129371

$12.01

690

Labyrinth Seal

503190434

$6.09

710

Washer

503195752

$10.38

730

Bolt M10

503195748

$27.49

735

Flange Elastic Nut M10

233201466

$3.17

800

Spring Support Kit

861805547

$10.49

810

Bushing

503196210

$12.64

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

900

Tensioner

503194266

$9.39

920

Hex. Cap Screw M8 X 95

503194267

$7.97

930

Hex. Elastic Stop Nut M8

232581414

$0.56

1000

Axle Stopper Strap

503196476

$11.49

1010

Spacer

503195825

$1.69

1020

Washer

503192494

$3.17

1030

Bolt M8 X 248mm

503192440

$30.49

1040

Elastic Flange Nut M8

233281466

$1.01

1090

Pivot Axle

503195954

$9.74

1095

Black, Wheel Ass'y

503195125

$33.99

1095a

Ball Bearing

503194917

$14.23

1095b

Retaining Ring

415130193

$8.68

1100

Spacer

503194864

$10.49

1110

Washer

503192494

$3.17

1120

Bolt M8 X 248mm

503192440

$30.49

1130

Elastic Flange Nut M8

233281466

$1.01

1140

Axle Strap

503191260

$30.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1400

LH Spring

503194900

$67.99

1410

RH Spring

503194901

$67.99

1420

LH Support

503194294

$42.99

1430

RH Support

503194295

$42.99

1440

Hex. Flange Screw M8 X 30

207683054

$2.11

1445

Washer

503192494

$3.17

1450

Elastic Flange Nut M8

233281466

$1.01

1470

Hook Ass'y

503196336

$9.39

1480

Hex. Cap Screw M6 X 70

207167054

$4.44

1485

Flat Washer

250200039

$0.74

1490

Hex. Flange Elastic Nut M6

233261466

$2.00

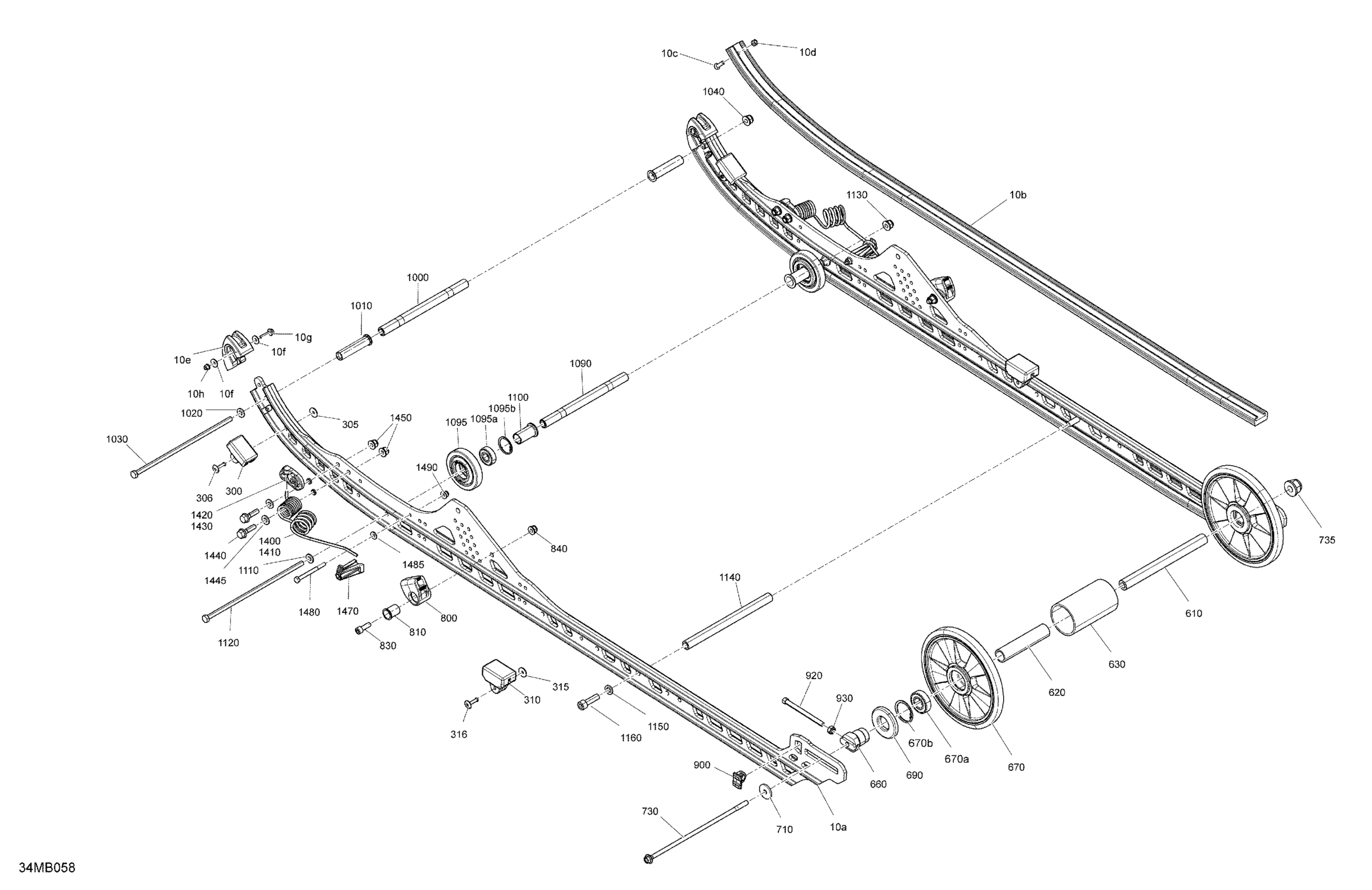

Ski-Doo SUMMIT 600R E-TEC - SP - Package 154" Europe, 2022 Suspension - Rear - Lower Section Diagram

Rail_Suspension 154 Ecoat | Model Deep Black

Slider 154

Phillips Screw M6 X 25

Elastic Stop Nut M6

Rail Protector

Washer

Hex. Flange Screw M5 X 25

Flange Elastic Nut M5

Rubber Stopper

Washer

Pop Rivet 3/16

Rubber Stopper Ass'y

Washer

Pop Rivet 3/16

Rear Axle

Spacer

Bushing

End Piece

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

Ball Bearing | Package-STD

Retaining Ring

Labyrinth Seal

Washer

Bolt M10

Flange Elastic Nut M10

Spring Support Kit

Bushing

Socket Screw M8 X 25

Elastic Flange Nut M8

Tensioner

Hex. Cap Screw M8 X 95

Hex. Elastic Stop Nut M8

Axle Stopper Strap

Spacer

Washer

Bolt M8 X 248mm

Elastic Flange Nut M8

Pivot Axle

Black, Wheel Ass'y

Ball Bearing

Retaining Ring

Spacer

Washer

Bolt M8 X 248mm

Elastic Flange Nut M8

Axle Strap

Washer

Socket Head Screw M10 X 35

LH Spring

RH Spring

LH Support

RH Support

Hex. Flange Screw M8 X 30

Washer

Elastic Flange Nut M8

Hook Ass'y

Hex. Cap Screw M6 X 70

Flat Washer

Hex. Flange Elastic Nut M6
