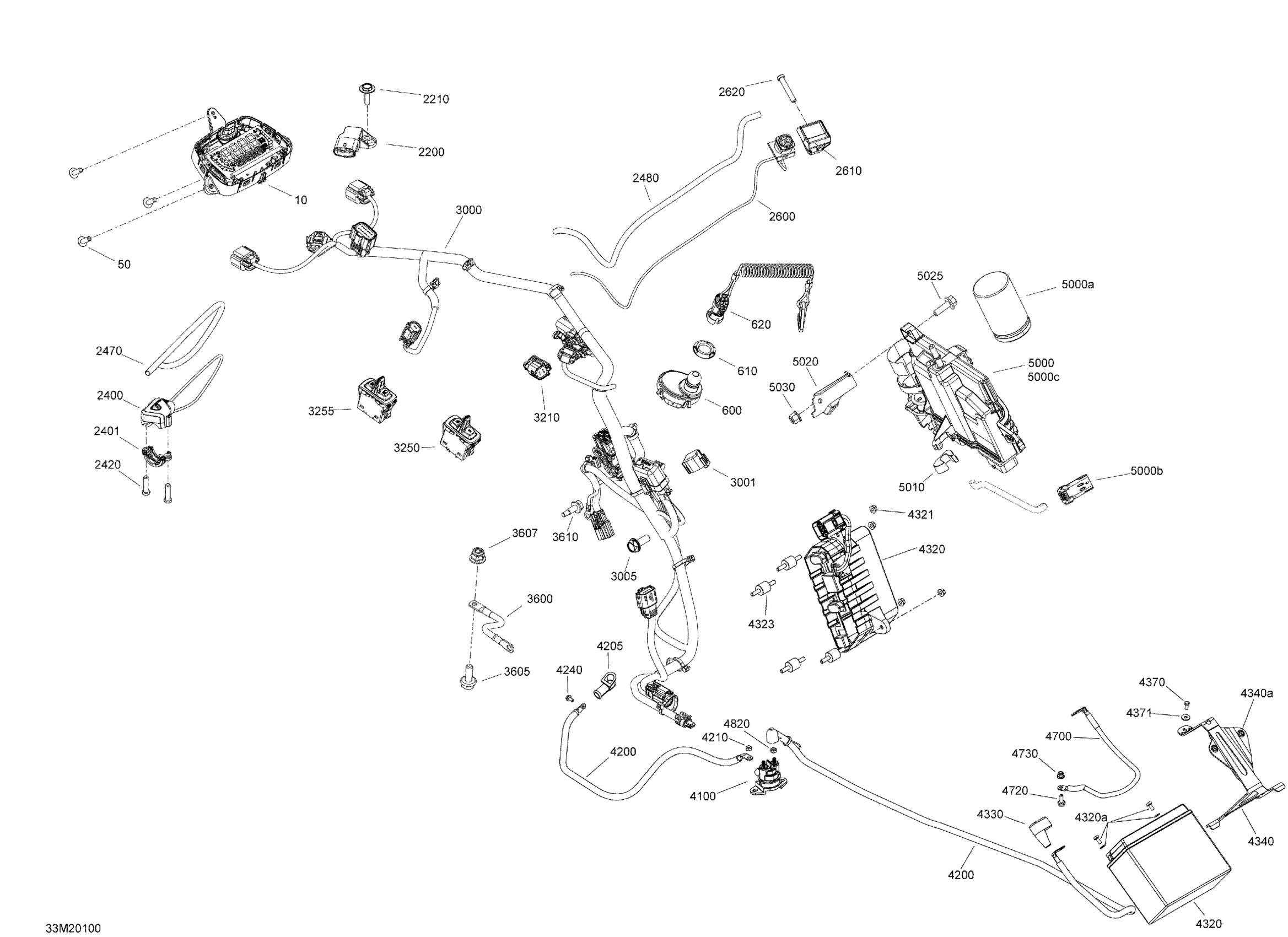

Ski-Doo 002 - SUMMIT 600R E-TEC - North America, 2020 10- Electric - System Diagram

Multifunction Gauge Compact Mono

515178810

$569.99

Torx Truss Screw K40 X 12

250000577

$2.11

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Safety Nut (DESS Switch)

278002963

$3.28

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

Pressure And Temperature Sensor

707000995

$88.99

Screw M4 X 16

250000725

$3.49

Ignition Switch

515178857

$69.99

Clamp

515177952

$8.79

Torx Screw

250000671

$1.01

Braided Sleeve

415130141

$55.99

Braided Sleeve

415130141

$55.99

Emergency Stop Switch

515177931

$76.49

Emergency Stop Switch Support

515177310

$9.19

Torx Screw #8-18

250000263

$1.04

Chassis Wiring Harness

515178550

$309.99

Chassis Wiring Harness

515178550

$309.99

Chassis Wiring Harness | Electric Start

515178551

$309.99

Diagnostic Cap

515178435

$8.79

Hex. Flange Screw M6 X 16

250001062

$1.57

4 Circuits Female Housing

515178177

$12.18

Switch Rocker Hand Warmer

515178462

$20.49

Switch Rocker Headlignt

515178463

$20.49

Ground Wire

515178248

$24.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M5 X 16

250000911

$0.85

Starter Relay

278003012

$42.49

Positive Wire

515178553

$29.99

Protector Cap

710000495

$10.99

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M5 X 10

207551044

$4.12

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

Battery Bolt Kit

250000282

$7.29

Ultracapacitor Module | E-TEC SHOT engine starter

515178479

$509.99

Hex. Flange Nut M5

233151414

$0.55

Rubber Mount

707000746

$9.19

Protector Cap | STD

710001817

$11.12

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

Insert

293450275

$12.99

Hex. Screw M5 X 12

207151244

$0.90

Washer | DS 650 X

391301600

$0.48

Ground Wire

515178155

$26.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Elastic Stop Nut M6

232561414

$0.55

Ignition Module | Includes 5000 to 5000a

512061191

$589.99

Capacitor

515177272

$90.99

Igniton Module | E-TEC SHOT engine starter

512061190

$589.99

Capacitor

515177272

$90.99

Housing 6 circuits | E-TEC SHOT engine starter

515178385

$13.24

Male FCI Terminal | E-TEC SHOT engine starter

278003871

$6.29

Rubber Stopper

515178430

$2.11

Module Support

515178159

$4.44

Hex. Flange Screw M5 X 16

207651646

$2.11

Flange Elastic Nut M5

233251434

$2.00
