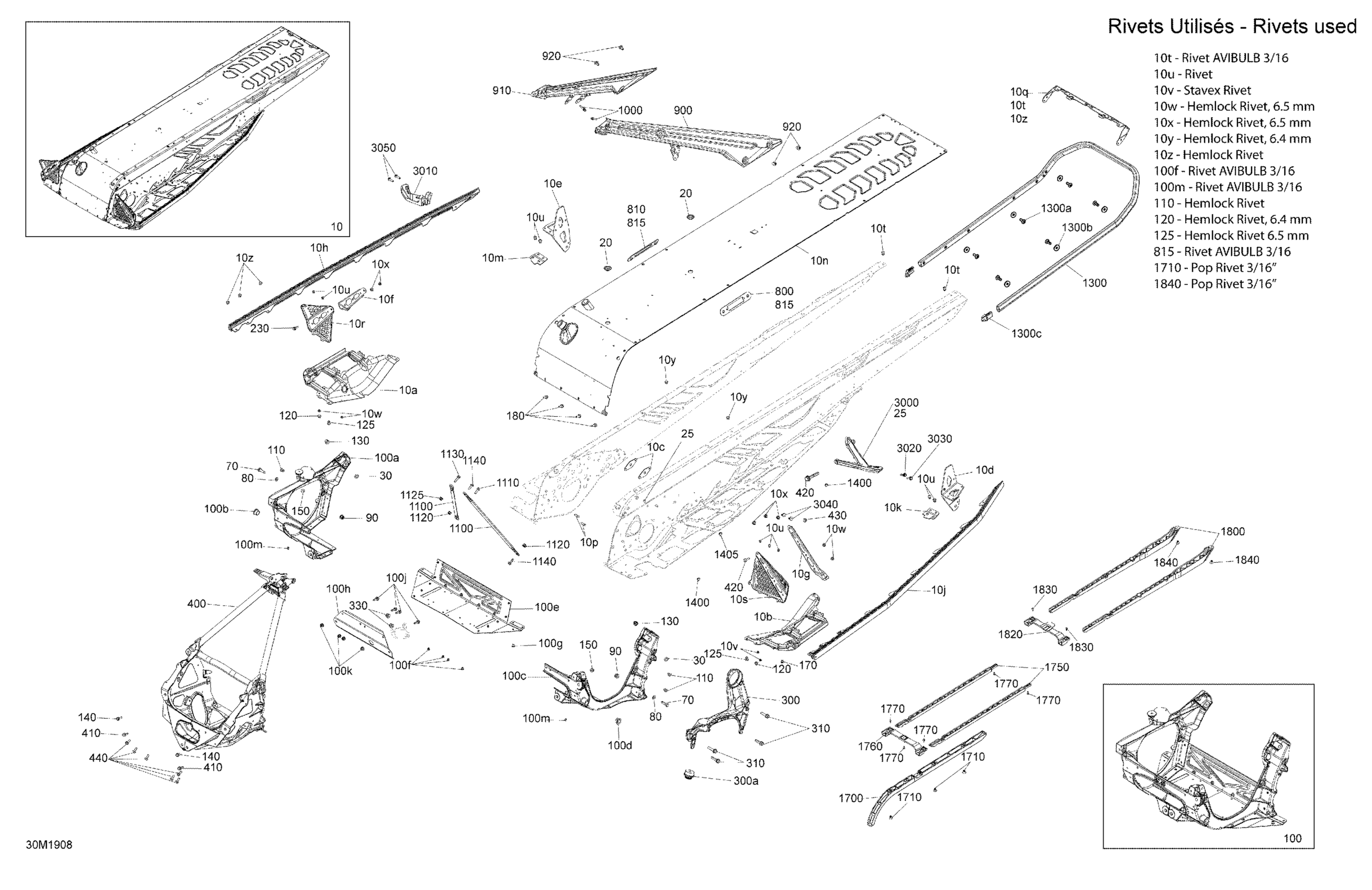

Ski-Doo 002 - SUMMIT 600R E-TEC, 2019 09- Frame - 154 - Package SP Diagram

Deep Black, Tunnel Chassis Module 154 | Includes 10 to 10aw

415130466

$2.00

Deep Black, RH Footrest Reinforcement

518332803

$86.99

Deep Black, LH Footrest Reinforcement

518332802

$18.49

Reinforcement Plate

518326647

$4.69

LH Suspension Bracket

518328467

$45.99

RH Rear Suspension Support

518334391

$94.99

RH Footrest Reinforcement

518330072

$19.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

LH Reinforcement Plate

518329088

$3.39

RH Reinforcement Plate

518329089

$4.59

Radiator Tunnel 154 Ass'y

518334491

$709.99

Clinch Stud M6 X 20

250300027

$2.09

Rear Cap

518328990

$22.49

RH Footrest

518328460

$44.99

LH Footrest

518333007

$40.99

Rivet Avibulb 3/16

293150203

$2.09

Rivet

293150183

$2.11

Stavex Rivet

293150144

$0.82

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Washer

506151252

$3.17

Hex Screw M8 X 30

250000942

$1.15

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100m

518330635

$619.99

RH Member Ass'y | Includes 100a to 100b

518330545

$229.99

Leg Cushion

505073317

$8.66

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Cushion

505073317

$8.66

Bottom Plate

518331661

$36.99

Rivet Avibulb 3/16

293150203

$2.09

Insert M5 X 0.8

293450268

$2.09

Front Member

518330100

$60.99

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rivet Avibulb 3/16

293150203

$2.09

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hemlock Rivet, 6.4 mm

293150174

$7.86

Hemlock Rivet 6.5 mm

293150120

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

Chassis Suspension Module

518334459

$709.99

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 16

207661646

$1.36

Member Fixation Plate

518329480

$12.99

LH Member Fixation Plate

518330299

$18.99

RH Under Chassis Reinforcement

518331745

$19.99

Rivet Avibulb 3/16

293150203

$2.09

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

Blue, LH Member | Gulfstream Blue

518330136

$119.99

Can-Am Red, LH Rear Diag Cross Member | Model Deep Black

518331052

$119.99

Black, RH Member Ass'y | Black

518330880

$119.99

Can-Am Red, RH Rear Diag Cross Member | Red

518331053

$119.99

Gulfstream Blue, RH Rear Diag Cross Memb

518331055

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Stud M5 X 20

250300629

$2.09

Upper Colomn Support

518329974

$22.49

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 20

207662044

$2.00

Rear Bumper | Includes 1300 to 1300b

518328501

$154.49

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Cap

520001612

$10.99

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Dart

293730079

$2.09
