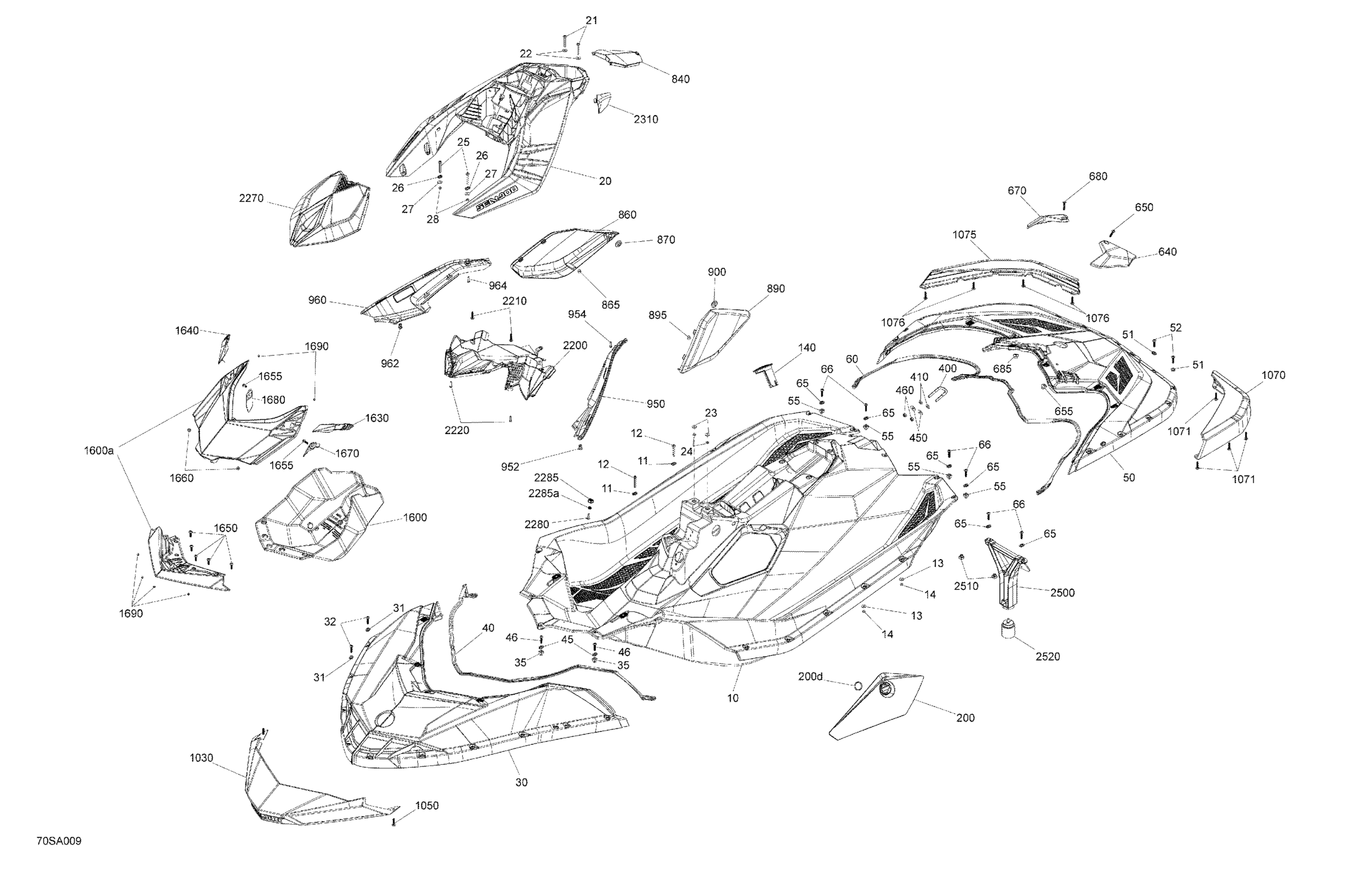

Sea-doo SPARK 900 HO ACE, 2021 Body - System Diagram

Deep Black, Mid Deck

291004646

$1,374.60

Oval Washer

291003880

$1.18

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Console Front | Includes 20 to 20a

291005057

$141.67

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

Flat Washer M6, Stainless

250200150

$2.87

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

Oval Washer

291003880

$1.18

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Dazzling Blue, Front Deck | Model Manta Green

291005190

$231.31

Deep Black, Front Deck

291004727

$207.32

Oval Washer

291003880

$1.18

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Insert

291003793

$2.44

Seal Joint

293250341

$33.77

Oval Washer

291003880

$1.18

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Dazzling Blue, Rear Deck | Model Manta Green

291005191

$238.03

Deep Black, Rear Deck

291004730

$201.47

Oval Washer

291003880

$1.18

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Insert

291003793

$2.44

Seal Joint

293250340

$33.77

Oval Washer

291003880

$1.18

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Deep Black, Rear Access Cover

291003390

$33.12

Deep Black, Front Access Cover | Includes 200 to 200d

291004155

$37.02

O-Ring

293300121

$6.18

U-Clamp

292000933

$32.47

Flat Washer M8.5 x 18

293050001

$1.29

Flat Washer 8 mm, Stainless

234082600

$1.98

Hex. Elastic Nut M8 Brass

232581200

$1.29

Deep Black, LH Rear Panel Trim

291003883

$22.07

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Insert

291003793

$2.44

Deep Black, RH Rear Panel Trim

291003884

$22.07

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Insert

291003793

$2.44

Deep Black, Glove Box Cover

291003378

$51.32

Manta Green, RH Knee Pads | Model Manta Green

291004732

$90.32

RH Molded Knee Pad

291005094

$102.02

Rubber Bumper

293830005

$5.33

Oval Washer

705000321

$4.64

Manta Green, LH Knee Pads | Model Manta Green

291004736

$88.37

LH Molded Knee Pad

291005093

$102.02

Rubber Bumper

293830005

$5.33

Oval Washer

705000321

$4.64

Bright White, LH Panel Trim

291004524

$25.34

Tuflok Plastic Rivet

293150230

$1.21

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Bright White, RH Panel Trim

291004525

$22.07

Tuflok Plastic Rivet

293150230

$1.21

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Front Bumper

291004567

$94.87

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Black, LH Rear Bumper

291004568

$29.22

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Black, RH Rear Bumper

291004569

$29.22

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Storage Bin Kit

295100864

$208.62

Black, Front Deflector Kit

295100865

Unavailable

Black, Front Deflector Kit

295100865

Unavailable

LH Retaining Strap

269800472

$20.77

RH Retaining Strap

269800498

$20.77

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Rubber Bumper

293830005

$5.33

LH Hook

269800541

$3.24

RH Hook

269800542

$3.24

Rubber Bumper

269800662

$0.74

Black, Inferior Cover

291004575

$73.42

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Manta Green, Frontal Trim | Model Manta Green

291004981

$22.07

Orange Mango, Frontal Trim

291004741

$52.62

Torx-Truss M/S Stlss M6 X 20

250000829

$2.30

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

Elastic Stop Nut M6, Brass

232561200

$3.51

Cap

291003702

$13.62

Rear Support

291003440

$20.77

Insert

291003793

$2.44

Rear Support Mount

291003694

$16.22
