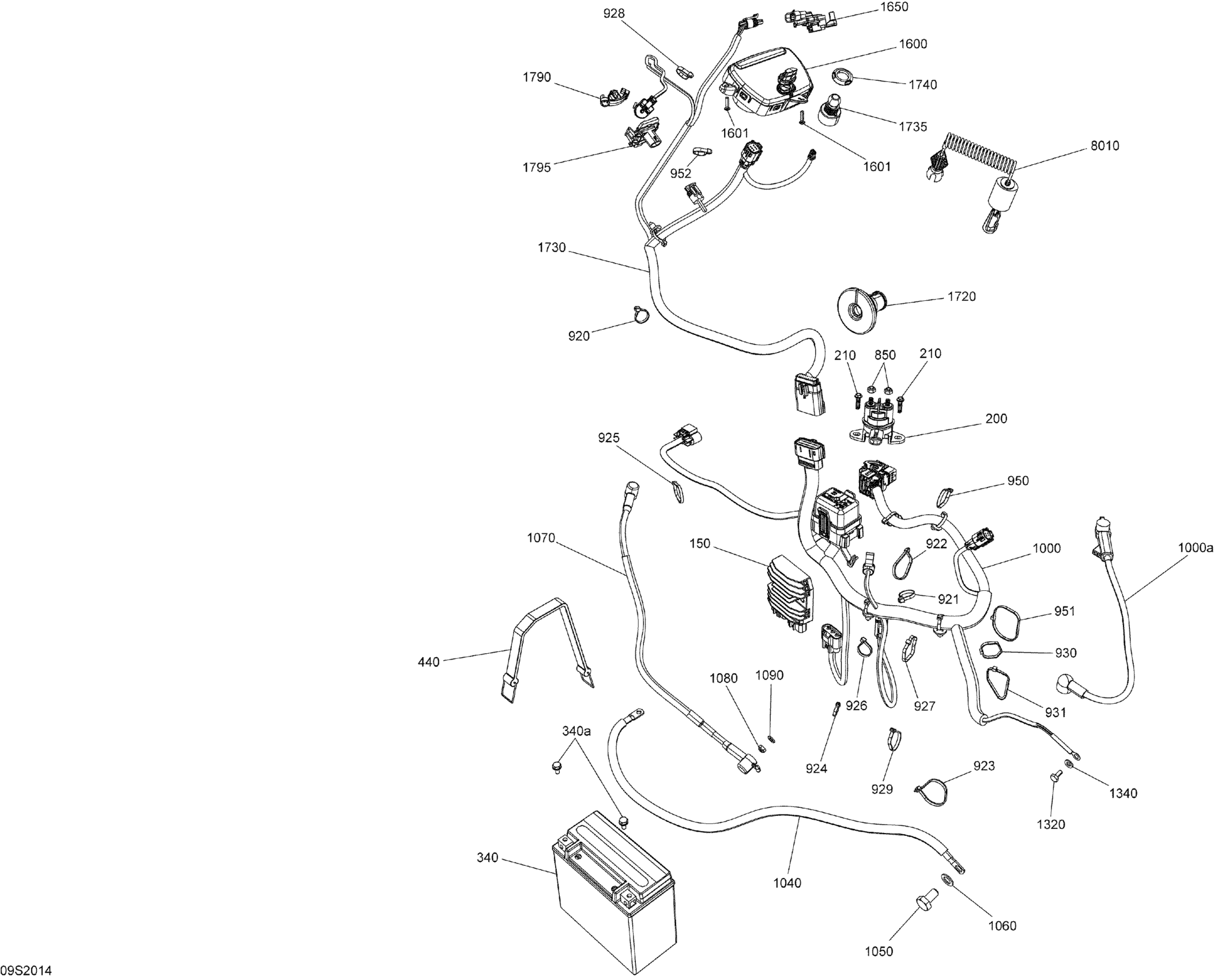

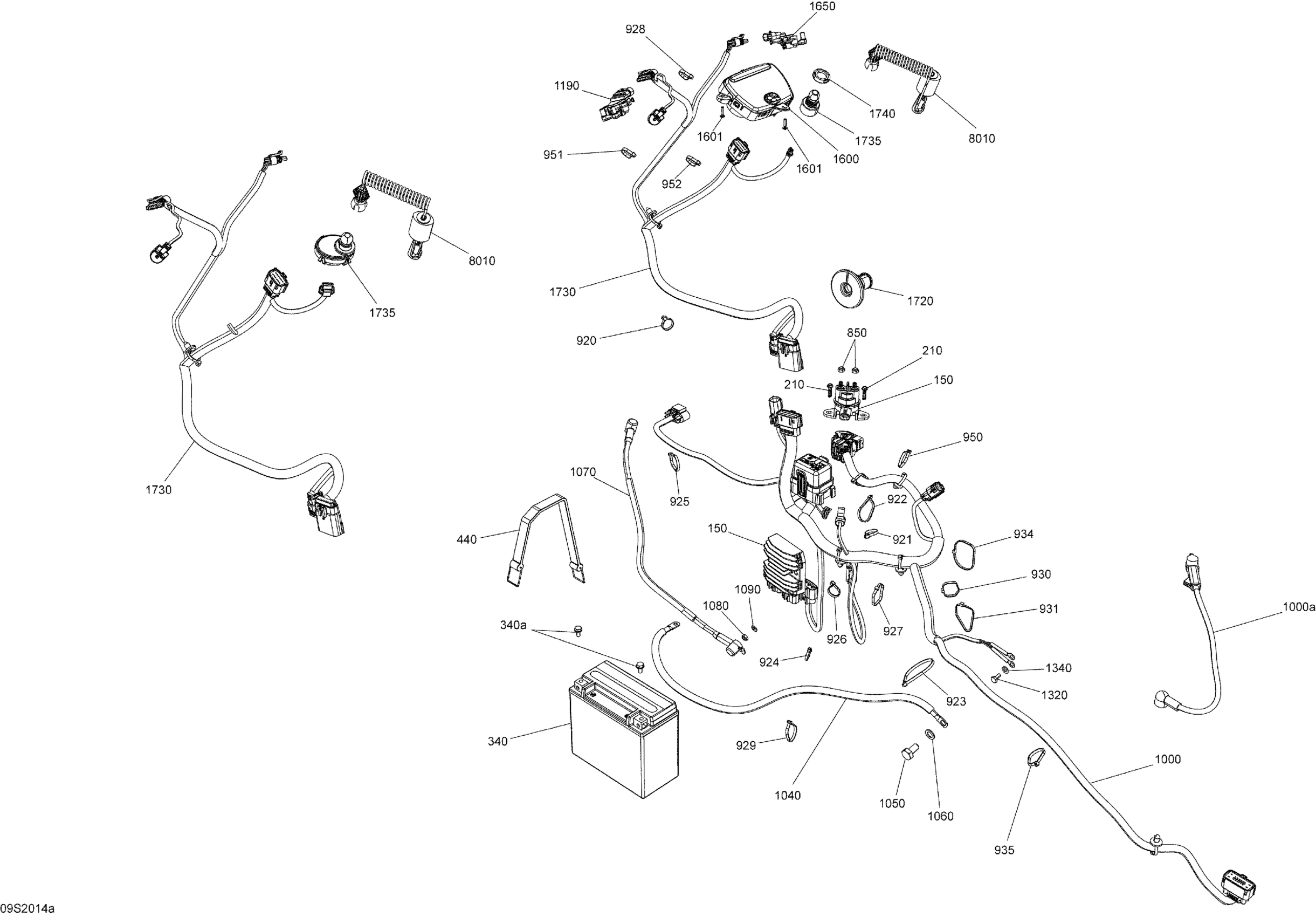

Sea-doo Spark 900 HO ACE, 2020 Electrical System With IBR Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

200

Starter Relay

278003012

$42.49

210

Hex. Flange Screw K50 X 20

241152060

$1.99

340<340a

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

340a

Battery Bolt Kit

250000282

$7.29

440

Fuel Tank Strap

293850093

$21.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

920

Tie-Rap 180 mm

414115200

$0.11

921

Tie-Rap 180 mm

414115200

$0.11

922

Tie-Rap 180 mm

414115200

$0.11

923

Tie-Rap 180 mm

414115200

$0.11

924

Tie-Rap 180 mm

414115200

$0.11

925

Tie-Rap 180 mm

414115200

$0.11

926

Tie-Rap 180 mm

414115200

$0.11

927

Tie-Rap 180 mm

414115200

$0.11

928

Tie-Rap 180 mm

414115200

$0.11

929

Tie-Rap 180 mm

414115200

$0.11

930

Tie-Rap 180 mm

414115200

$0.11

931

Tie-Rap 180 mm

414115200

$0.11

934

Tie-Rap 180 mm

414115200

$0.11

935

Tie-Rap 180 mm

414115200

$0.11

950

Tie-Rap 180 mm

414115200

$0.11

951

Tie-Rap 180 mm

414115200

$0.11

952

Tie-Rap 180 mm

414115200

$0.11

1000<1000a

Wiring Harness Main

278003701

$649.99

1000a

Fuse Box Battery Cable

278003714

$71.99

1040

Ground Cable

278003271

$39.99

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

1060

Flat Washer 10 mm, Stainless

234000600

$1.46

1070

Starter Cable

278003268

$62.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1600

LCD Gauge

278003864

$639.99

1601

Flange Torx Screw K40 X 16

250000287

$2.11

1650

Throttle Position Sensor

278002283

$119.99

1720

Cable Grommet

293720092

$13.49

1730

Steering Harness Ass'y

278003594

Unavailable

1730

Steering Harness Ass'y

278003595

Unavailable

1735

Emergency Switch Ass'y, NOT RFID

278002677

$52.99

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

1740

Safety Nut (DESS Switch)

278002963

$3.28

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

8010

Safety Lanyard Ass'y, NOT RFID

278003410

$72.99
