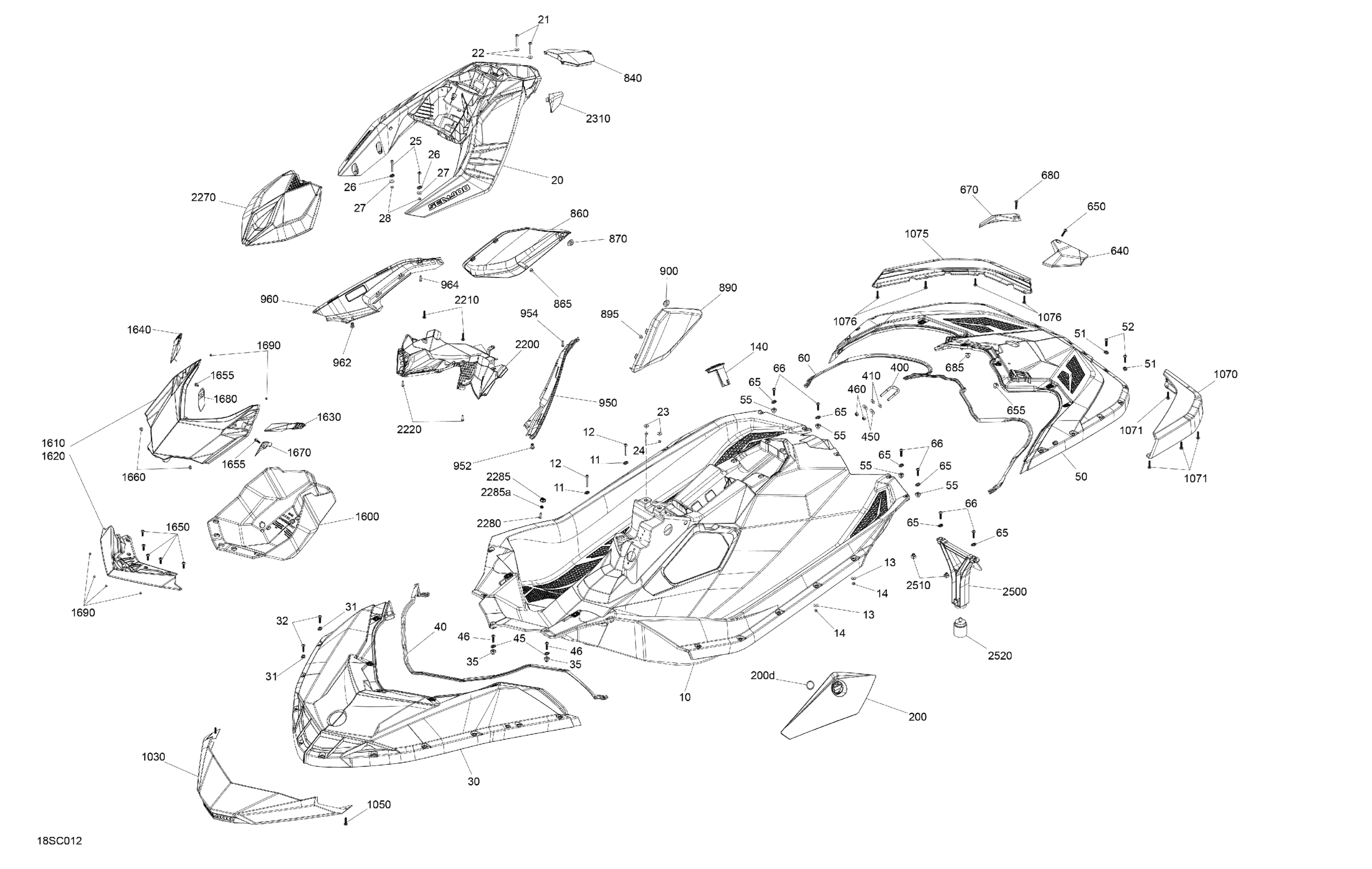

Sea-doo 002 - SPARK 90 - 2UP, 2023 07- Body - System Diagram
#
10
Central Body
291006043
$1.00
11
Oval Washer
291003880
$1.77
12
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
13
Flat Washer M6, Stainless
234062600
$0.77
14
Elastic Stop Nut M6, Brass
232561200
$4.23
20
Manta Green, Console
291005485
$139.99
21
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
22
Flat Washer M6, Stainless
250200150
$3.49
23
Flat Washer M6, Stainless
234062600
$0.77
24
Elastic Stop Nut M6, Brass
232561200
$4.23
25
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
26
Oval Washer
291003880
$1.77
27
Flat Washer M6, Stainless
234062600
$0.77
28
Elastic Stop Nut M6, Brass
232561200
$4.23
30
Bright White, Front Deck
291004581
$264.99
31
Oval Washer
291003880
$1.77
32
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
35
Insert
291003793
$3.56
40
Gasket
293250599
$41.49
45
Oval Washer
291003880
$1.77
46
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
50
Bright White, Rear Deck
291004586
$264.99
51
Oval Washer
291003880
$1.77
52
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
55
Insert
291003793
$3.56
60
Gasket
293250598
$41.49
65
Oval Washer
291003880
$1.77
66
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
140
Deep Black, Rear Access Cover
291003390
$42.99
200
Deep Black, Front Access Cover | Includes 200 to 200d
291004155
$47.99
200d
O-Ring
293300121
$8.32
400
U-Clamp
292000933
$59.49
410
Flat Washer M8.5 x 18
293050001
$3.07
450
Flat Washer 8 mm, Stainless
234082600
$2.43
460
Hex. Elastic Nut M8 Brass
232581200
$2.22
640
Deep Black, LH Rear Panel Trim
291003883
$28.99
650
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
655
Insert
291003793
$3.56
670
Deep Black, RH Rear Panel Trim
291003884
$28.99
680
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
685
Insert
291003793
$3.56
840
Deep Black, Glove Box Cover
291003378
$65.99
860
Knee Pads RH
291004571
$78.49
865
Rubber Bumper
293830005
$8.09
870
Oval Washer
705000321
$5.61
890
Knee Pads LH
291004570
$111.49
895
Rubber Bumper
293830005
$8.09
900
Oval Washer
705000321
$5.61
950
LH Panel Trim This part replaces 291003696.
291004576
$28.99
952
Tuflok Plastic Rivet
293150230
$1.47
954
Hex. Screw 10-14 X 7/8”
211000023
$3.59
960
Deep Black, RH Panel Trim
291004577
$28.99
962
Tuflok Plastic Rivet
293150230
$1.47
964
Hex. Screw 10-14 X 7/8”
211000023
$3.59
1030
Front Bumper
291004567
$116.49
1050
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
1070
Black, LH Rear Bumper
291004568
$37.99
1071
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
1075
Black, RH Rear Bumper
291004569
$37.99
1076
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
1600
Storage Bin Kit
295100864
$239.49
1610
Black, Front Deflector Kit
295100865
$138.49
1620
Black, Front Deflector Kit
295100865
$138.49
1630
LH Retaining Strap
269800472
$26.99
1640
RH Retaining Strap
269800498
$26.99
1650
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1655
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1660
Rubber Bumper
293830005
$8.09
1670
LH Hook
269800541
$4.02
1680
RH Hook
269800542
$4.02
1690
Rubber Bumper
269800662
$1.09
2200
Black, Inferior Cover
291004575
$93.99
2210
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
2220
Hex. Screw 10-14 X 7/8”
211000023
$3.59
2270
Front Trim Bright White
291004590
$67.99
2280
Torx-Truss M/S Stlss M6 X 20
250000829
$3.35
2285
M6 Nut Housing | Includes 550f to 550f2
269502497
$6.53
2285a
Elastic Stop Nut M6, Brass
232561200
$4.23
2310
Manta Green, Cap
291005557
$15.49
2500
Rear Support
291003440
$25.99
2510
Insert
291003793
$3.56
2520
Rear Support Mount
291003694
$20.99
