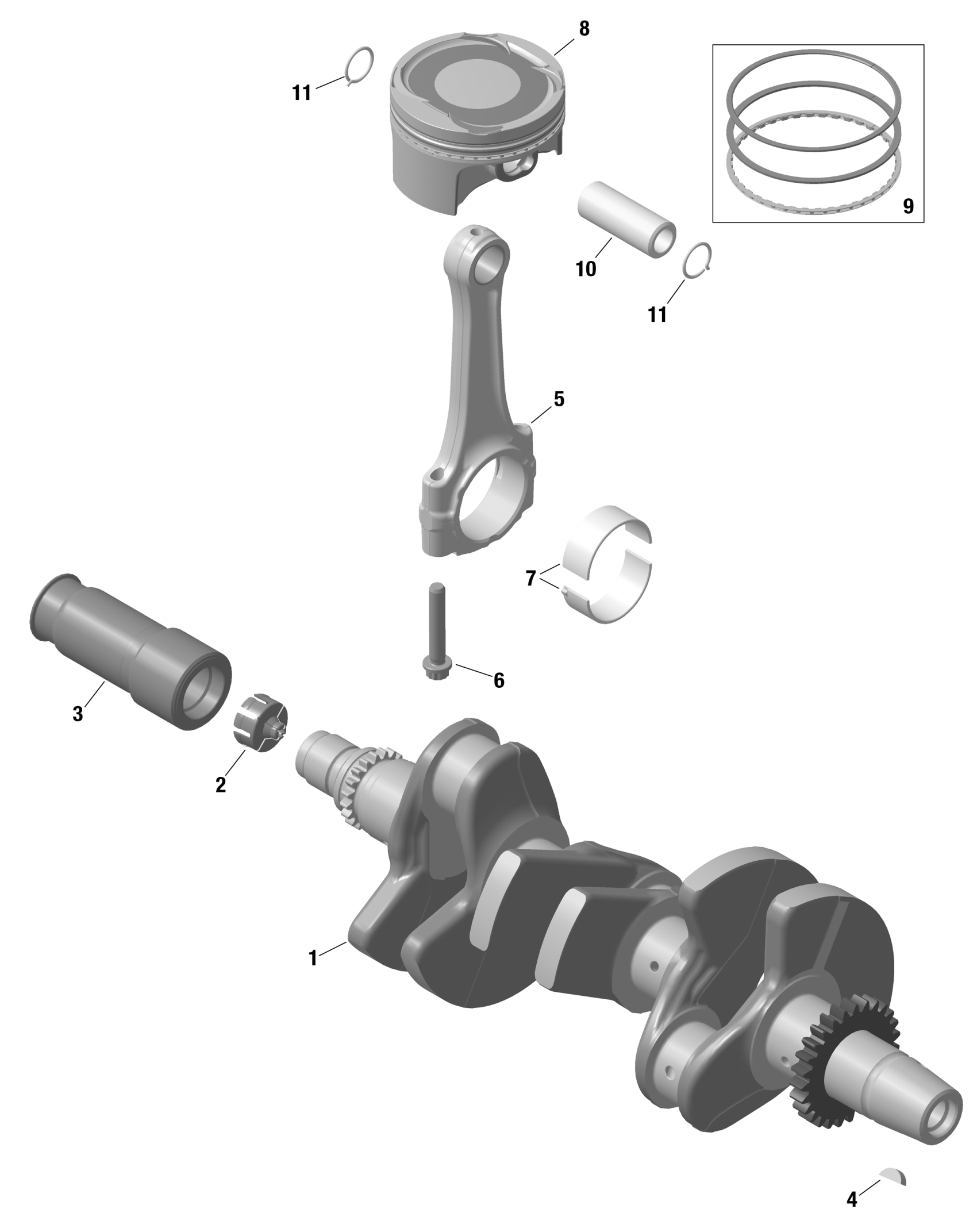

Sea-doo SPARK 90 - 2UP, 2023 ROTAX - Crankshaft and Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y

420819789

$1.00

2

Stop Sleeve

420660283

$3.17

3

Output Sleeve

420947574

$254.99

4

Woodruff Key

420246571

$4.44

5

Connecting Rod Ass'y

420917703

$229.99

6

Connecting rod Screw M7 X 1

420641794

$15.89

7

Plain Bearing

420933191

$13.16

8

Piston Ass'y, 73.958 mm

420892821

$191.49

9

Piston Ring Set

420892824

$58.49

10

Piston Pin

420916510

$23.99

11

Piston Circlip

420845810

$4.89
