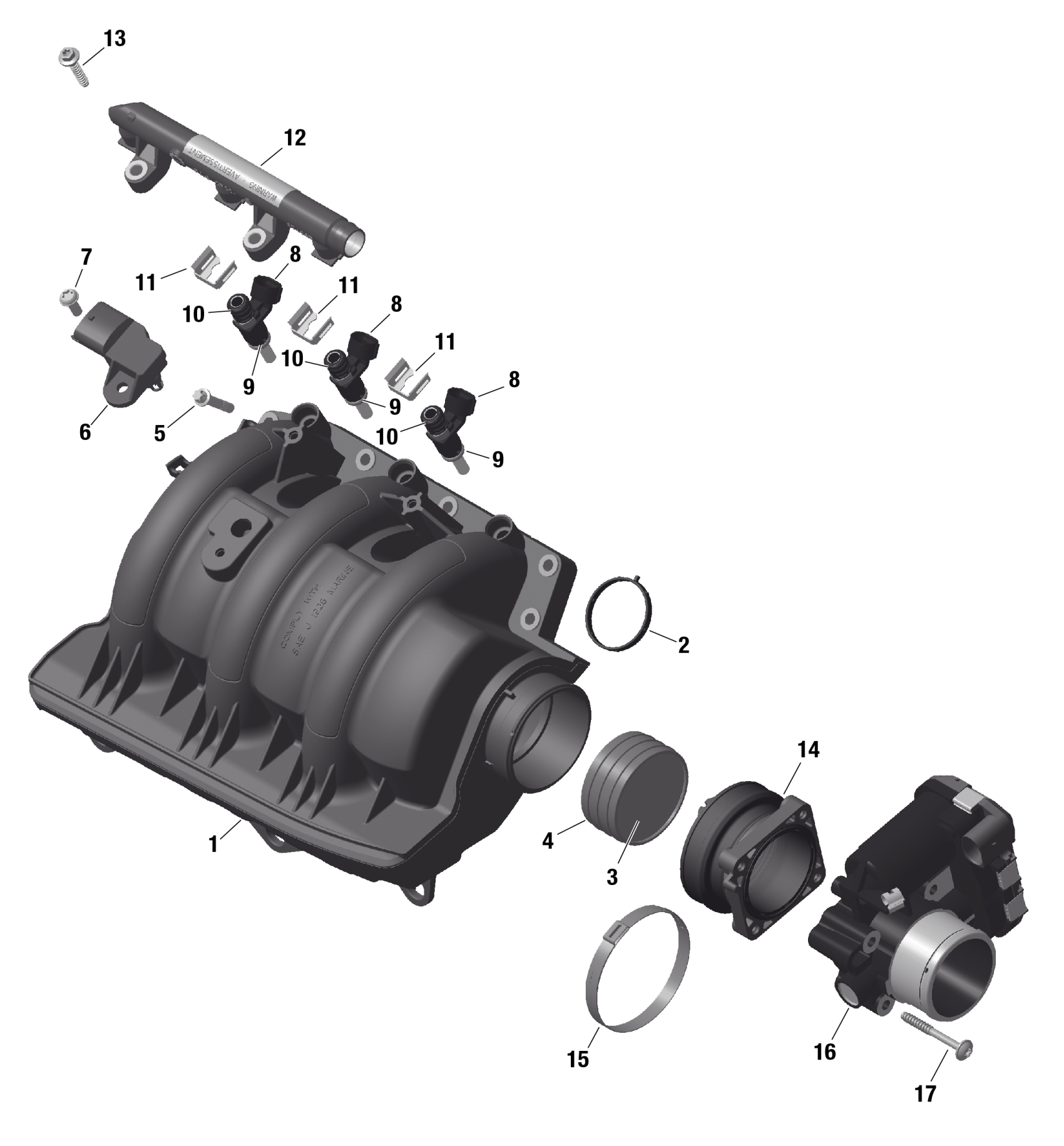

Sea-doo SPARK 90 - 2UP, 2023 ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Airbox Ass'y | Includes no. 1-4

420867368

$379.99

2

Gasket | Included in gasket kit

420431662

$10.33

3

Flame Arrester

420667710

$264.99

4

Profile Ring

420201210

$19.99

5

Torx Flange Screw M6 X 30

420840663

$5.82

6

Pressure And Temperature Sensor

420874658

$119.99

7

Torx Flange Screw M6 X 16

420641588

$2.11

8

Injection Valve

420874855

$169.49

9

O-Ring

420831050

$20.49

10

O-Ring

420430775

$4.29

11

Injector Clip

420853030

$3.09

12

Fuel Rail

420874966

$14.49

13

Torx Screw 6X30

420441575

$3.06

14

Intake Neck

420867092

$42.99

15

Hose Clamp

420251483

$17.05

16

Throttle Body

420893144

$409.99

17

Torx Flange Screw M6 X 50

420441588

$4.44
