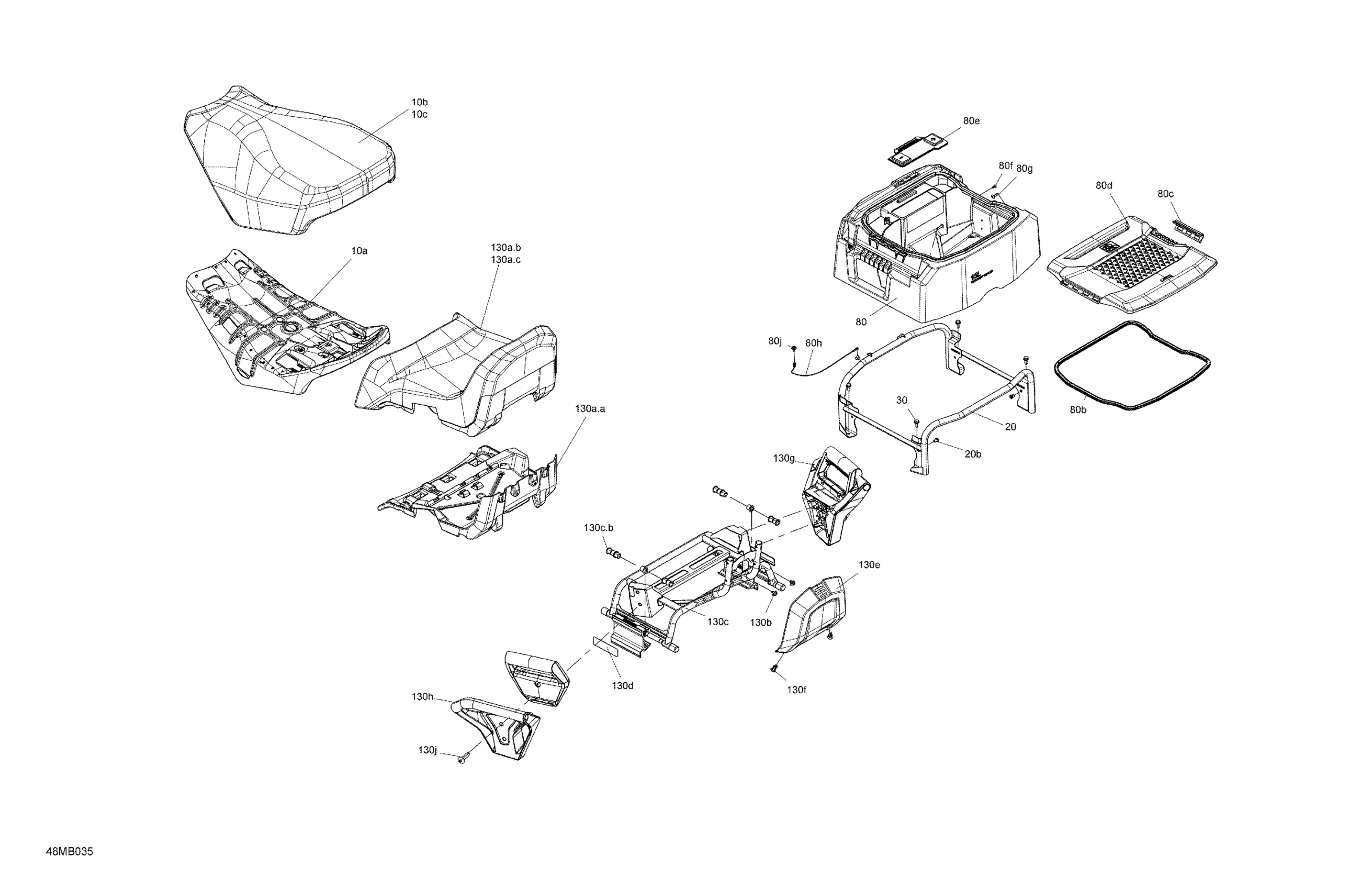

Ski-Doo 002 - SKANDIC WT 900 ACE - Europe, 2022 07- Body - Seat Diagram

Description

Price

10a

Driver Seat Base

510007355

$72.99

10b

Driver Seat Foam

510007168

$329.99

10c

Driver Seat Cover

510007169

Unavailable

Seat Support Ass'y | Includes 20 to 20b

510007010

$86.99

20b

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Storage Box Ass'y | Includes 80 to 80k

510007166

$329.99

80b

Seal, 1PC = 3M

293830188

$39.99

80c

Latch

269502449

$4.39

80d

Box Cover

511001274

$39.99

80e

Access Cover

510006789

$8.74

80f

Torx-Truss Screw K40 X 10

250001034

$0.98

80g

Torx Screw M5 X 20

250000724

$1.69

80h

Retaining Cable

293750092

$12.99

80j

Plastite Screw M4 X 10

250000805

$2.11

130a.a

Passender Seat Base

510006885

$72.99

130a.b

Passenger Seat Foam

510007172

Unavailable

130a.c

Passenger Seat Cover

510007173

Unavailable

130b

Avdel Rivet

293150027

$2.49

130c

Passenger Chassis Module Ass'y | Includes 130c to 130c8

510007155

$429.99

130c.b

Cushion

506152520

$15.72

130d

Warning Label

516009941

$0.01

130e

Seat Trim

510006695

$12.99

130f

Tuflok Plastic Rivet

293150230

$1.47

130g

RH Handle

510006797

$13.70

130h

LH Handle

510006798

$13.70

130j

Torx Truss M/S M8 x 35

250000753

$1.15
