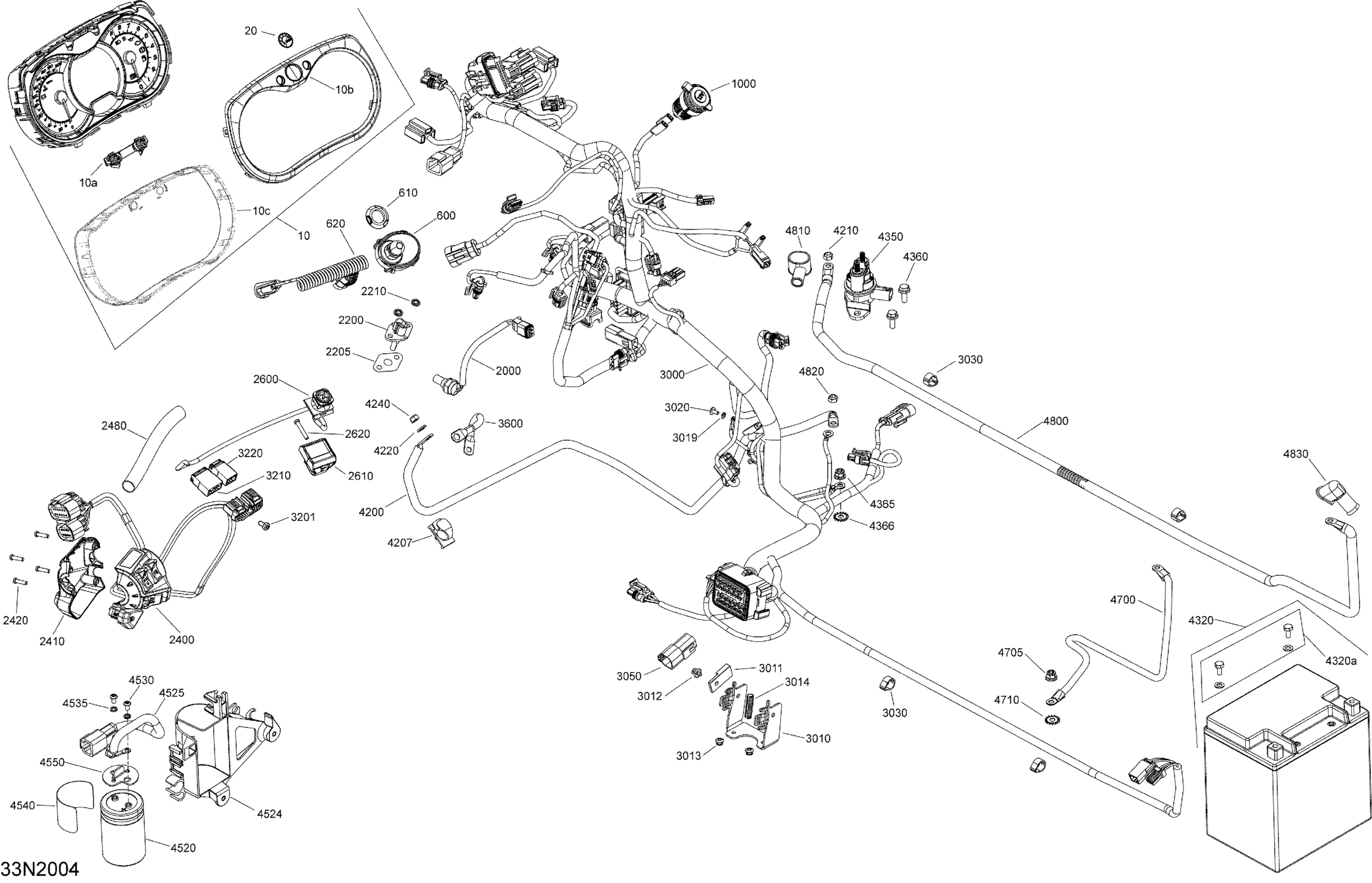

Ski-Doo SKANDIC WT 600HO E-TEC - 2020 Electric - System Diagram

Speedometer | Includes 10 to 10c

515177914

$576.09

Speedometer Button | XTP

415129355

$13.52

Gauge Ring

415129370

$10.34

Lens | XTP

415129349

$22.36

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

Safety Nut (DESS Switch)

278002963

$3.12

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

DC Outlet

710001248

$35.79

Temperature Sensor This part replaces 420664508.

420664509

$138.03

Air Temperature Sensor

515176366

$17.88

Seal

508000769

$5.06

Push Nut

389804300

$0.49

LH Housing

515178198

$258.93

Housing Plate

515177147

$17.13

Torx Screw

250000671

$0.96

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

Emergency Stop Switch Support

515177310

$8.34

Torx Screw #8-18

250000263

$0.99

WIRING HARNESS MAIN - Call your local BRP dealership

515178129

Unavailable

Fusebox Support

515177925

$10.99

Clip

270000141

$9.57

Avdel Rivet 3/16"

293150037

$0.54

Pop Rivet 3/16"

390402200

$0.30

Tubing 6 Mm 3000Mm Long

219704425

$12.75

Lock Washer 4 mm

234141601

$1.06

Screw-Torx Button Head M4 X 8

250000741

$1.06

Velcro

293740059

Unavailable

Housing

710003006

$8.31

Pan Screw Forming, 7500C

250000690

$2.00

Male Terminal Housing, 6 Circuits

515175662

$8.31

Male Terminal Housing, 4 Circuits

515175846

$8.31

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

Ground Wire

515177289

$24.60

Start Cable

515176806

$34.30

Tie Rap Mount (screwable)

515176795

$4.96

Elastic Stop Nut M6

232561414

$1.78

Flat Washer 6 mm

234061410

$1.19

Elastic Stop Nut M6

232561414

$1.78

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Bolt Kit

250000282

$3.39

Starter Relay

278003012

$40.27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Lock Washer Serrated M6

250200041

$1.06

Capacitor

515177272

$82.81

Capacitor Support

515176607

$17.13

Capacitor Harness

515176605

$30.57

Socket Head Screw M10 X 32

250000462

$2.00

Lock washer | Quest XT 650.

250200026

$1.78

Capacitor Decal

516006206

$8.24

Cap

515177193

$4.30

Ground Wire

515176780

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Lock Washer Serrated M6

250200041

$1.06

Battery Cable

515176805

Unavailable

Protection Cap

570151000

$17.88

Elastic Stop Nut M6

232561414

$1.78

Protector Cap

710000495

$9.84
