Description

Price

10a

Module E | Includes 10a to 10n

518329691

$959.99

10c

RH Member

518326795

$284.99

10d

LH Member

518326796

$229.99

10e

Front Member

518326198

$64.99

10g

Avex Rivet

390909100

$0.30

10h

Hemlock Rivet 6.5 mm

293150120

$7.41

10j

Hemlock Rivet, 6.5 mm

293150119

$4.29

10k

Leg Bushing

505072690

$12.49

10m

Muffler Support

518328194

$19.99

10n

Rivet Hucklok

293150163

$2.99

10ae

LH Support Tube Bracket

518329109

$44.99

10af

RH Support Tube Bracket

518329110

$44.99

60

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

65

Hemlock Rivet, 6.5 mm

293150119

$4.29

131

Avex Rivet

390909200

$0.30

300

S Module | Includes 300 to 300a

518326213

$839.99

300a

Avex Rivet

390909200

$0.30

320

Hexagonal Head Screw

210262050

$2.11

330

Hex. Flange Screw M6 X 25

207662544

$0.64

335

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

360

Hemlock Rivet, 6.5 mm

293150119

$4.29

370

Hex. Flange Screw M6 X 16

207661644

$0.74

380

SUPPORT PLATE - Call your local BRP dealership

518325620

$114.99

390

Avex Rivet

390909100

$0.30

390

Avex Rivet

390909100

$0.30

400

Rivet Hucklok

293150163

$2.99

410

Hemlock Rivet, 6.5 mm

293150119

$4.29

415

Rivet

293150183

$2.11

420

Avex Rivet

390909200

$0.30

500

Pulley Support

518328434

$144.99

510

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

511

Hex. Flange Screw M8 X 30 Scotch Grip

250001073

$4.34

700

Front Member Ass'y | Includes 700 to 700d

518326754

$729.99

700a

Front Member, S Module

518326558

$254.99

700b

LH Bumper Fastener

502007077

$54.99

700c

RH Bumper Fastener

502007078

$54.99

700d

Avex Rivet

390909200

$0.30

710

Hex. Flange Screw M6 X 20

207662044

$2.00

720

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

740

Flat Washer

224061201

$1.37

760

Hex. Flange Screw M6 X 20

207662044

$2.00

770

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

780

Hex. Flange Screw M6 X 20

207662044

$2.00

785

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

790

Avex Rivet

390909200

$0.30

900

Upper Support Tube

518329105

$204.99

910

Hex. Screw M8 X 20

207182044

$0.74

920

Hex. Elastic Stop Nut M8

232581414

$0.56

1100

Upper Lateral Column Support

518325114

$22.49

1110

Hex. Flange Screw M6 x 20

207662056

$1.01

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1200

Center Column Support

518325115

$22.49

1210

Hex. Flange Screw M6 X 25

207662556

$4.44

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

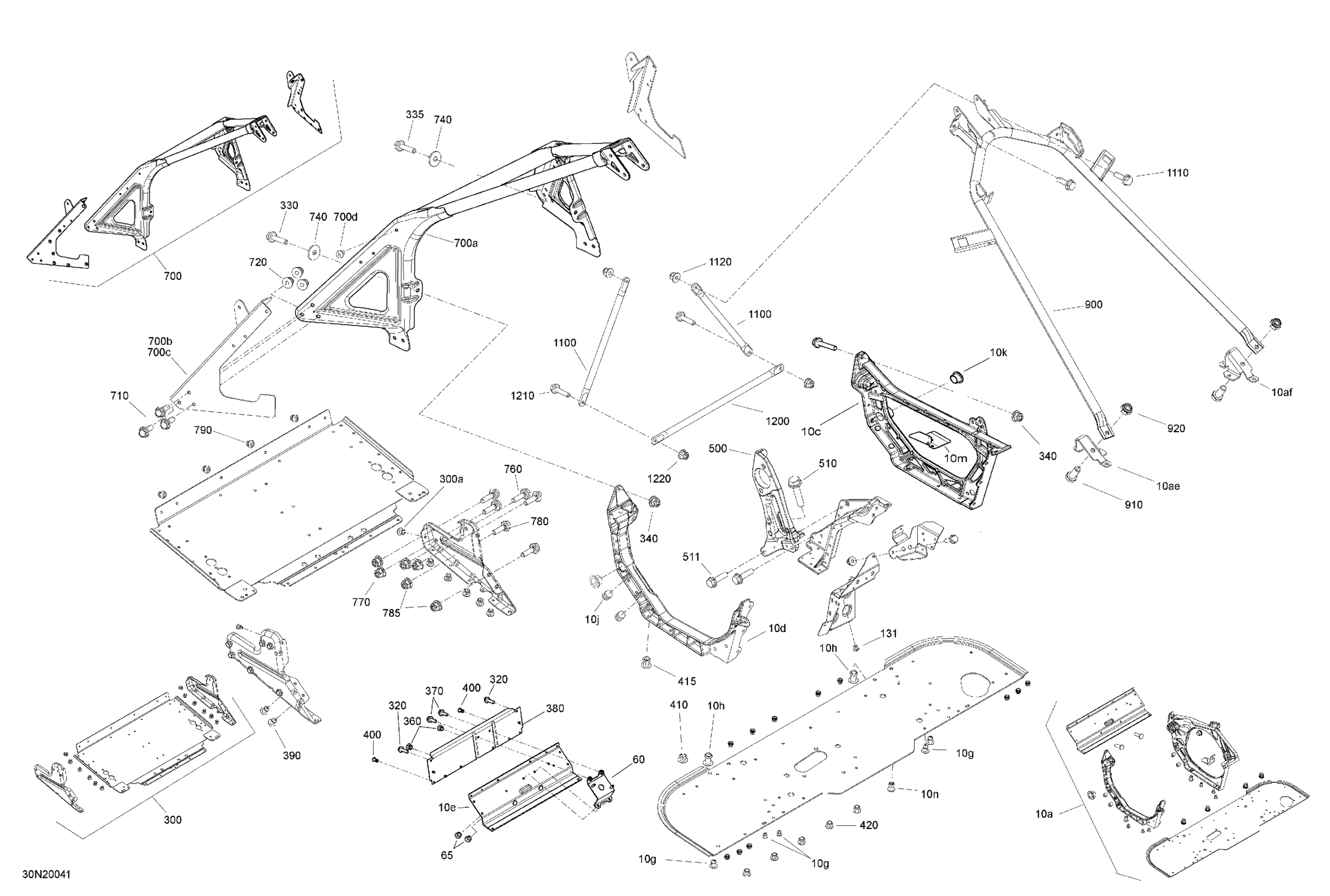

Ski-Doo 002 - SKANDIC WT 600HO E-TEC - North America, 2020 09- Frame - System - Front Section Diagram

Module E | Includes 10a to 10n

RH Member

LH Member

Front Member

Avex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Bushing

Muffler Support

Rivet Hucklok

LH Support Tube Bracket

RH Support Tube Bracket

MAG Engine Support | Includes 10a to 10a1

Hemlock Rivet, 6.5 mm

Avex Rivet

S Module | Includes 300 to 300a

Avex Rivet

Hexagonal Head Screw

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Flange Elastic Nut M6 x 1.0

Hemlock Rivet, 6.5 mm

Hex. Flange Screw M6 X 16

SUPPORT PLATE - Call your local BRP dealership

Avex Rivet

Avex Rivet

Rivet Hucklok

Hemlock Rivet, 6.5 mm

Rivet

Avex Rivet

Pulley Support

Hex Flange Screw M8 X 25 S.Grip

Hex. Flange Screw M8 X 30 Scotch Grip

Front Member Ass'y | Includes 700 to 700d

Front Member, S Module

LH Bumper Fastener

RH Bumper Fastener

Avex Rivet

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Avex Rivet

Upper Support Tube

Hex. Screw M8 X 20

Hex. Elastic Stop Nut M8

Upper Lateral Column Support

Hex. Flange Screw M6 x 20

Elastic Flange Nut M6 X 1.0

Center Column Support

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0
