Description

Price

10

Exhaust Manifold This part replaces 420673420.

420673421

$289.99

20

Gasket

420850552

$8.85

30

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

50

Washer

605620001

$2.51

150

Exhaust Gasket

514053487

$26.49

200

Tuned Pipe Ass'y

514055027

$985.49

250

Bumper

514054275

$16.34

260

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

300

Exhaust Gasket

514054174

$28.49

400

Muffler Ass'y | Includes 400 to 400f

514055025

$858.49

400a

RH DEFLECTOR - Call your local BRP dealership

514054986

$53.99

400b

LH DEFLECTOR - Call your local BRP dealership

514055029

Unavailable

400c

RH Insulating Wool

514054711

$21.99

400d

LH Insulating Wool

514054299

$20.99

400e

Pop Rivet 3/16”

390910000

$0.57

400f

Lower Stopper

514054529

$18.49

410

Upper Stopper

514054606

$19.99

420

Rubber Bumber

514055070

$17.98

500

Spring

415107100

$6.35

510

Spring Bracket, 5mm hole

514054974

$8.45

520

Pop Rivet 3/16"

390402200

$0.35

570

Exhaust Muffler Support

514054767

$20.49

575

Riser Shim

514054806

$11.60

580

Hemlock Rivet, 6.5 mm

293150096

$3.27

590

Spring Bracket

514053393

$14.16

595

Pop Rivet 3/16"

390402200

$0.35

700

Temperature Sensor

514054870

$149.99

720

Tubing 6 Mm 3000Mm Long

219704425

$13.75

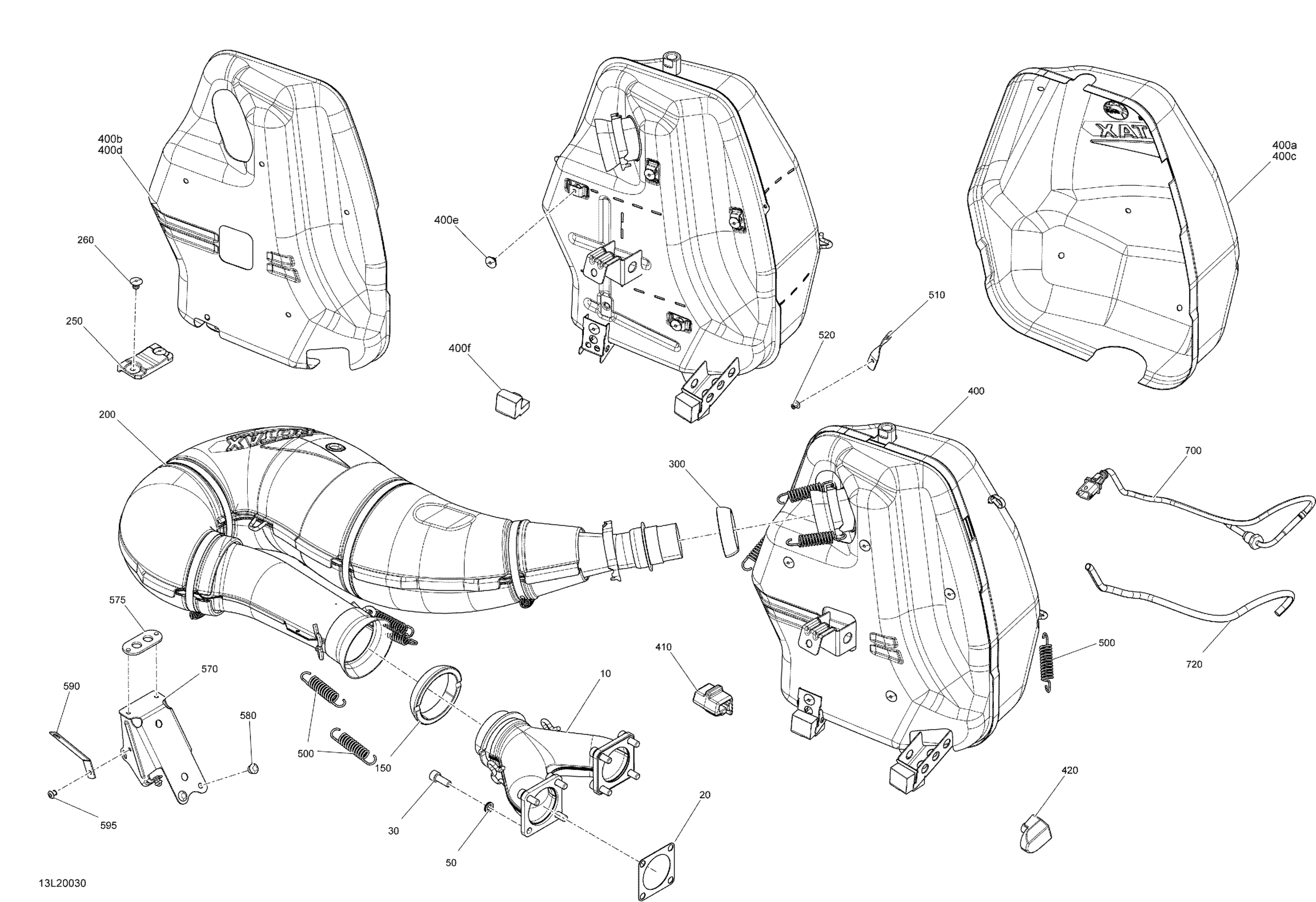

Ski-Doo SKANDIC WT 600HO E-TEC - 2020 Engine - Exhaust Diagram

Exhaust Manifold This part replaces 420673420.

Gasket

Socket Head Screw Scotch Grip M6 X 20

Washer

Exhaust Gasket

Tuned Pipe Ass'y

Bumper

Pop Rivet 3/16" | DS 650 X

Exhaust Gasket

Muffler Ass'y | Includes 400 to 400f

RH DEFLECTOR - Call your local BRP dealership

LH DEFLECTOR - Call your local BRP dealership

RH Insulating Wool

LH Insulating Wool

Pop Rivet 3/16”

Lower Stopper

Upper Stopper

Rubber Bumber

Spring

Spring Bracket, 5mm hole

Pop Rivet 3/16"

Exhaust Muffler Support

Riser Shim

Hemlock Rivet, 6.5 mm

Spring Bracket

Pop Rivet 3/16"

Temperature Sensor

Tubing 6 Mm 3000Mm Long
