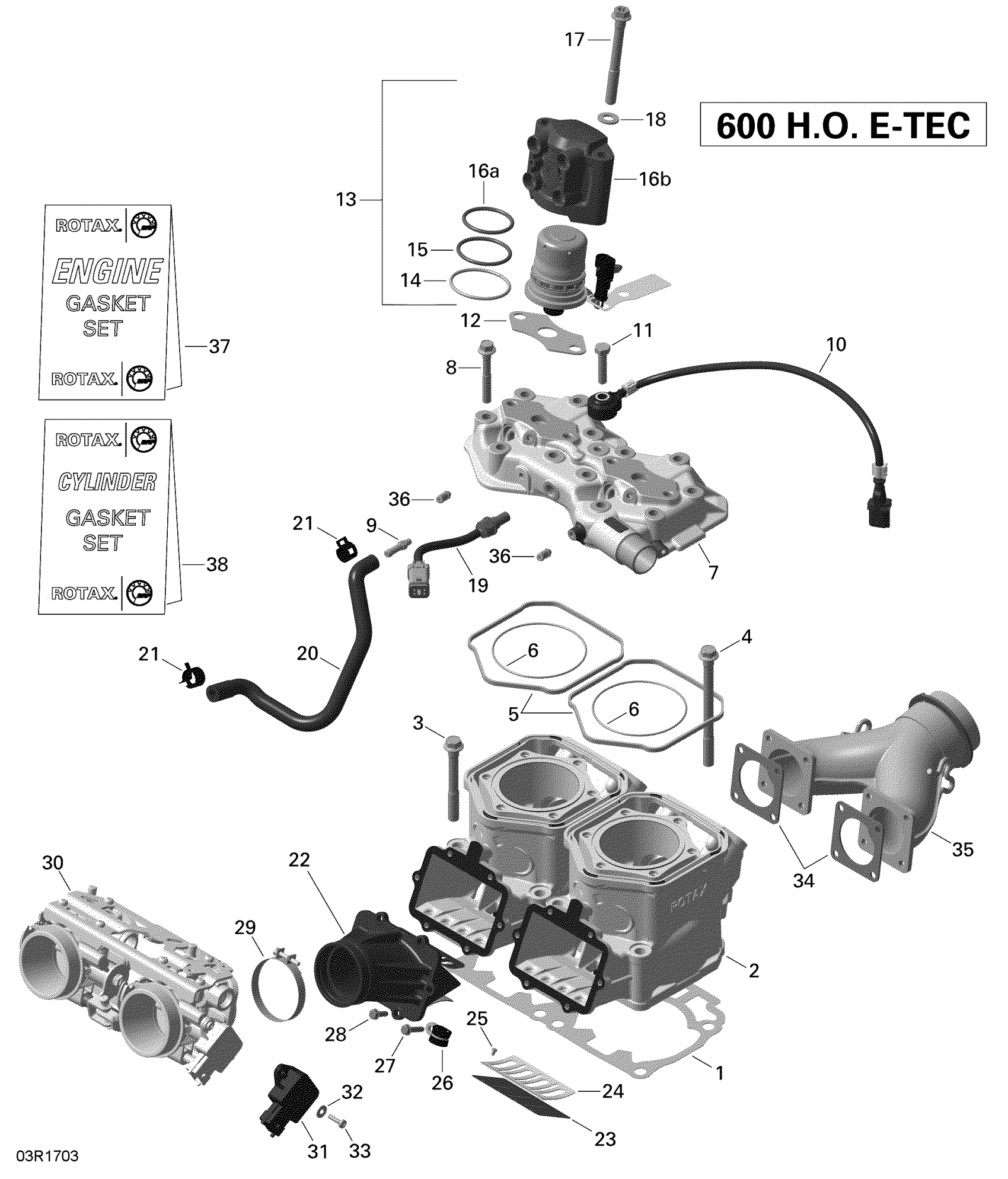

Ski-Doo SKANDIC WT 600HO E-TEC - 2020 Engine - Cylinder and Injection System - 600HO E-TEC Diagram

#

Description
Price

1

Gasket 0.5 mm

420431160

$17.53

1

Gasket 0.6 mm

420431161

$23.49

1

Gasket 0.7 mm

420431162

$23.49

1

Double Gasket 0.8 mm

420431163

$23.49

2

Cylinder

420623263

$457.99

2

Cylinder

420623263

$457.99

3

Hex. Collar Screw

420640524

$13.16

4

Hex. Collar Screw

420640534

$14.28

5

Rubber Ring

420931590

$6.19

6

O-Ring This part replaces 420850540.

293300026

$3.39

7

Head Cylinder Cover

420623299

$265.99

8

Hex. Screw M8 X 56.5

420941627

$8.57

9

Hose Nipple

420924724

$14.83

10

Noise Sensor

270000484

$82.99

11

Hex. Screw M8 X 35

207083544

$1.15

12

Gasket

420430930

$4.99

13

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

14

Crush Ring

415129497

$7.99

15

O-Ring

415129498

$13.49

16a

O-Ring

415129499

$7.39

16b

Fuel Injector Cover

415129942

$38.99

17

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

18

Flat Washer M10 This part replaces 420927410.

420927411

$2.11

19

Temperature Sensor This part replaces 420664508.

420664509

$149.99

20

Molded Hose

420460867

$19.99

21

Clamp

420853511

$7.51

22

Intake Socket With Reed Valve | Includes 22 to 25 This part replaces 420667532.

420667533

$232.99

23

Reed Pedal

420924680

$38.99

24

Reed Pedal Stop

420924695

$15.28

25

Phillips Screw M3 X 5

420941215

$1.69

26

Clamp

420851250

$10.33

27

Tapping Screw M5 X 22

420841550

$1.69

28

Taptite Screw M5 X 16

420941928

Unavailable

29

Clamp

420851065

$14.28

30

Throttle Body

420889201

$1.00

31

Position Sensor

420866120

$98.99

32

Flat Washer 4 mm, Stainless

234041600

$1.15

33

Phillips Screw M4 X 16

208641660

$0.90

34

Gasket

420850552

$8.85

35

Exhaust Manifold This part replaces 420673420.

420673421

$289.99

36

Hose Nipple

420924724

$14.83

37

Gasket Set, Engine

420889924

$190.49

38

Gasket Set, Cylinder

420889928

$163.99
