Description

Price

1

Black, Snow Guard Short

520001405

$79.99

1

Black, Snow Guard long

520001409

$79.99

2

Plate

520001021

$37.99

2

Plate

520001022

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Wiring Harness Ass'y | Not Shown

520000677

$38.99

9

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

15

Yellow, RH Reflector

520001600

$33.99

16

Yellow, LH Reflector

520001601

$33.99

17

Red, Lateral Reflector

705003412

$15.49

20

Tools Kit | Includes 1400 to 1400e

520001670

$49.49

28

Tool Kit Rack

520000894

$14.99

29

Latch

520000528

$7.69

38

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

42

Cotter Pin

41031

$7.65

43

Plate

520000727

$36.99

44

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

45

Bolt Carriage M8 X 40

207784044

$1.15

46

Hex. Flange Elastic Nut M8

233281414

$1.47

47

Cover | Model-T3

28056

$5.89

60

Support Tape

520001766

Unavailable

70

Guide Skandic WT/SWT EN | Not Shown

619900949

Unavailable

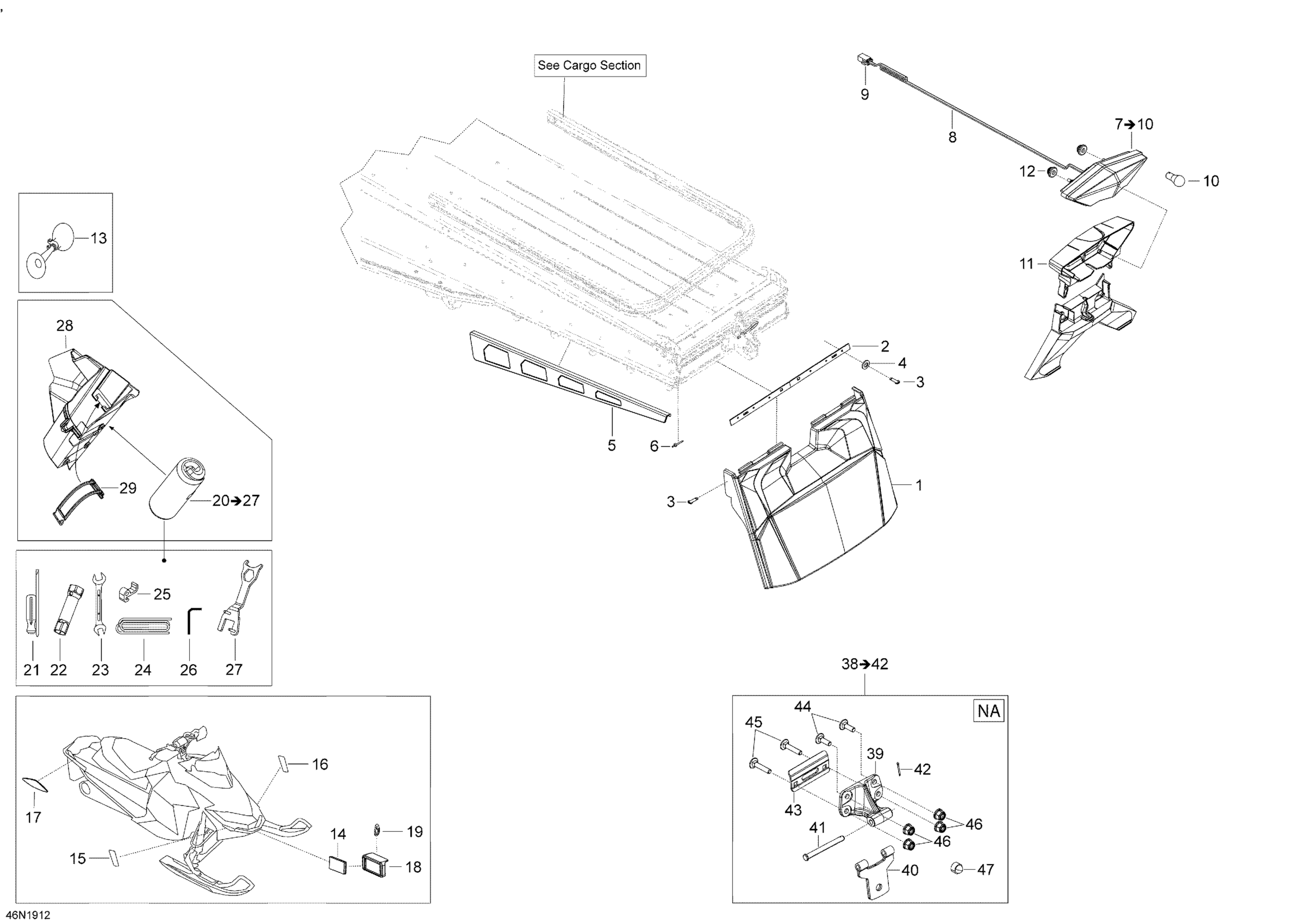

Ski-Doo 002 - Skandic WT 600HO E-TEC, 2019 09- Utilities - 600HO E-TEC Diagram

Black, Snow Guard Short

Black, Snow Guard long

Plate

Plate

Forming Screw M5 x 16

Washer M5

RH Protector

LH Protector

Rivet Hucklok

Rear Light | Includes 200 to 200a

Wiring Harness Ass'y | Not Shown

Bulb

Rear Light Cover

Stopper Rubber

Yellow, RH Reflector

Yellow, LH Reflector

Red, Lateral Reflector

Tools Kit | Includes 1400 to 1400e

Tool Kit Rack

Latch

Hitch Ass'y | Includes 3600 to 3600a

Cotter Pin

Plate

Carriage Bolt, M8 X 25 | XXC

Bolt Carriage M8 X 40

Hex. Flange Elastic Nut M8

Cover | Model-T3

Support Tape

Guide Skandic WT/SWT EN | Not Shown
