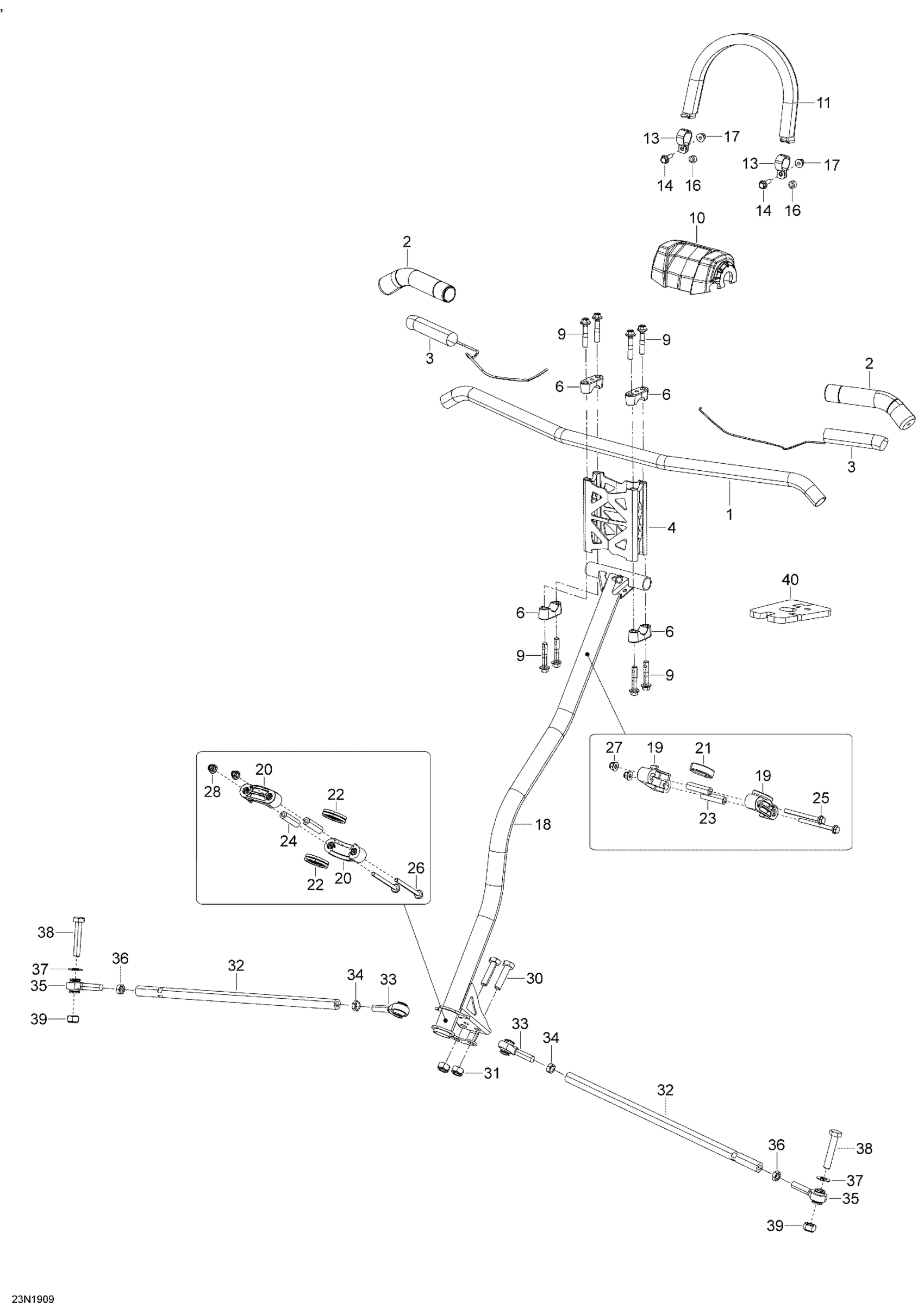

Ski-Doo Skandic WT 600HO E-TEC, 2019 Steering - 600HO E-TEC Diagram

#

Description
Price

1

Handle Bar

506152722

$148.49

1

Handle Bar

506152722

$148.49

2

Grip | WAKE This part replaces M5340464.

506152483

$12.17

2

Grip | WAKE This part replaces M5340464.

506152483

$12.17

3

Heated Film, 25W

506152428

$39.99

3

Heated Film, 25W

506152428

$39.99

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

6

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Steering Support | Includes 40 to 40a

506152751

$13.99

9

Hex. Flange Screw M8 x 40

250000285

$0.82

9

Hex. Flange Screw M8 x 40

250000285

$0.82

10

Deep Black, Steering Pad

506152541

$41.99

10

Deep Black, Steering Pad

506152541

$41.99

11

Strap Ass'y | Package XMR

506152115

$44.49

11

Strap Ass'y | Package XMR

506152115

$44.49

13

Black Support Plate

506152536

$9.19

13

Black Support Plate

506152536

$9.19

14

Hex. Flange Screw M6 X 20

207662054

$1.01

14

Hex. Flange Screw M6 X 20

207662054

$1.01

16

Bushing | Package XMR

506152156

$5.61

16

Bushing | Package XMR

506152156

$5.61

17

Hex. Flange Elastic Nut M6

233261494

$1.58

17

Hex. Flange Elastic Nut M6

233261494

$1.58

18

Steering Column

506152962

$199.99

18

Steering Column

506152962

$199.99

19

Upper Half-Housing

506152508

$9.23

19

Upper Half-Housing

506152508

$9.23

20

Lower Half-Housing

506152217

$7.62

20

Lower Half-Housing

506152217

$7.62

21

Upper Anti-Vibration Gasket

506152509

$4.79

21

Upper Anti-Vibration Gasket

506152509

$4.79

22

Lower Vibration Ring

506152518

$4.79

22

Lower Vibration Ring

506152518

$4.79

23

Housing Bushing

506152297

$12.99

23

Housing Bushing

506152297

$12.99

24

Lower Housing Bushing

506152388

$17.39

24

Lower Housing Bushing

506152388

$17.39

24a

Stopper Plate

506152389

$12.99

24a

Stopper Plate

506152389

$12.99

25

Hex. Flange Screw M6 X 70

207667056

$4.44

25

Hex. Flange Screw M6 X 70

207667056

$4.44

26

Hex. Flange Screw, M8 X 65

207686544

$13.16

26

Hex. Flange Screw, M8 X 65

207686544

$13.16

27

Elastic Flange Nut M6 X 1.0

233261416

$2.11

27

Elastic Flange Nut M6 X 1.0

233261416

$2.11

28

Hex. Flange Elastic Nut M8

233281414

$1.47

28

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Hex. Screw M10 X 40

207004044

$4.76

30

Hex. Screw M10 X 40

207004044

$4.76

31

Elastic Stop Nut M10

232500416

$1.90

31

Elastic Stop Nut M10

232500416

$1.90

32

Tie Rod

506152436

$62.49

32

Tie Rod

506152436

$62.49

33

LH Thread Ball Joint

506152081

$41.49

33

LH Thread Ball Joint

506152081

$41.49

34

LH Threaded Hex. Jam Nut M10

250100016

$0.74

34

LH Threaded Hex. Jam Nut M10

250100016

$0.74

35

RH Threaded Ball Joint

506152019

$41.49

35

RH Threaded Ball Joint

506152019

$41.49

36

RH Threaded Hex. Jam Nut M10

732610010

$0.74

36

RH Threaded Hex. Jam Nut M10

732610010

$0.74

37

Washer

506152582

$4.55

37

Washer

506152582

$4.55

38

Hex. Screw M10 X 45

207004544

$1.69

38

Hex. Screw M10 X 45

207004544

$1.69

39

Hex. Flange Elastic Nut M10

233201414

$1.58

39

Hex. Flange Elastic Nut M10

233201414

$1.58

40

Cushion

506152404

$26.49

40

Cushion

506152404

$26.49
