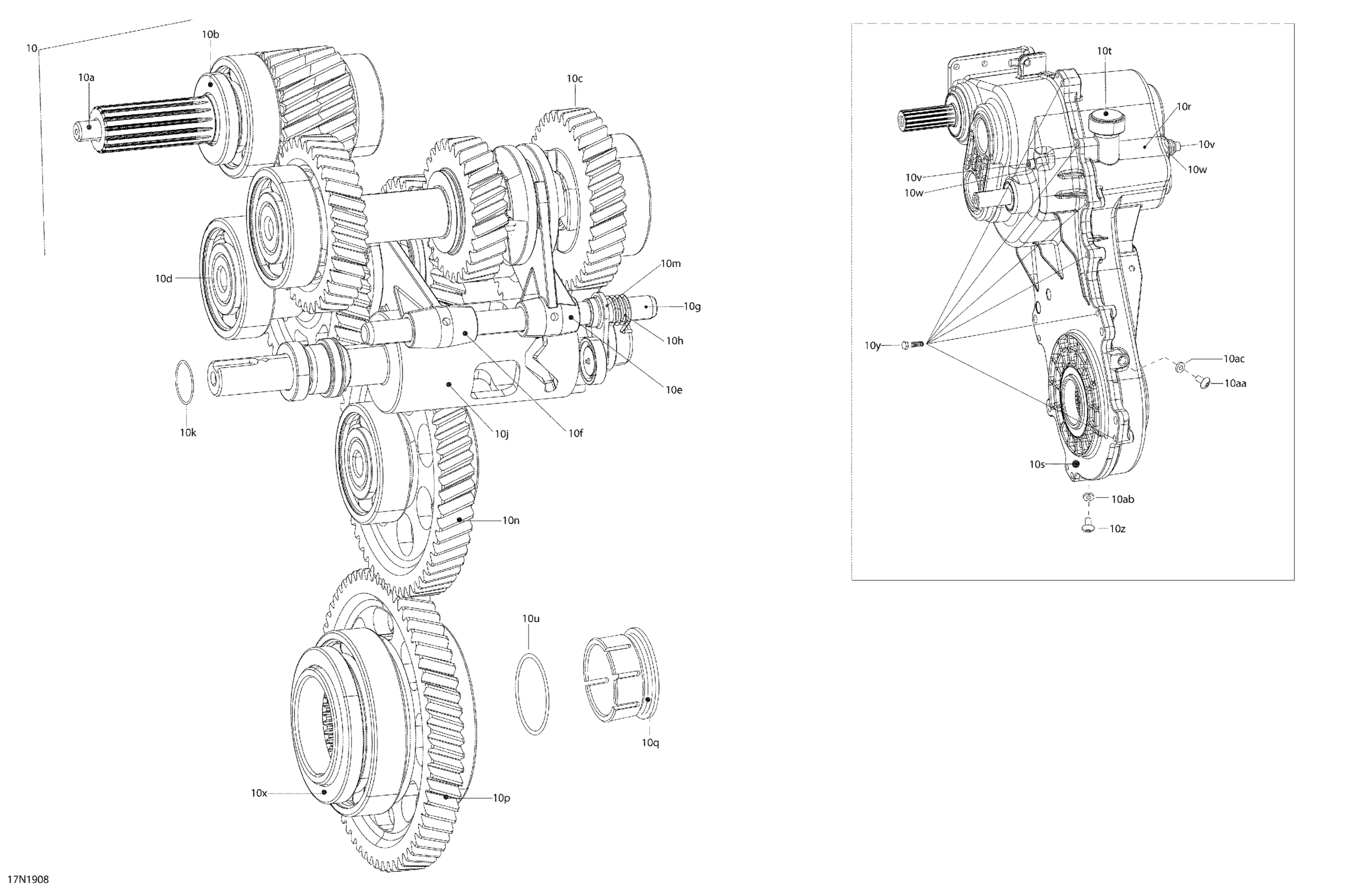

Ski-Doo Skandic WT 600HO E-TEC, 2019 Transmission Slow Ratio - 600HO E-TEC Diagram

Description

Price

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2,089.99

10a

Counter Shaft Ass'y | Gear Box 2.30

619230044

$575.34

10b

Oil seal

619230010

$17.13

10c

Main Shaft Ass'y | Gear Box 2.30

619230054

$546.99

10d

Reverse Shaft Ass'y (Slow Ratio) | Gear Box 2.30

619230073

$575.34

10e

Fork, Forwards

619230055

$136.54

10f

Fork, reverse

619230015

$191.01

10g

Shaft

619230016

Unavailable

10h

Spring

619230017

$13.91

10j

Shifting Drum

619230056

$204.45

10k

O-Ring

619230079

$22.36

10m

Locking lever

619230021

$55.94

10n

Middle gear

619230022

$212.66

10p

Lower gear

619230023

$394.75

10q

Magnetic Plug

619230070

$23.85

10r

Outside Cover

619230060

Unavailable

10s

Inside Cover

504153243

Unavailable

10t

Oil Plug

619230027

$39.52

10u

O-Ring

619230069

$7.79

10v

Screw

619230029

Unavailable

10w

Washer

619230030

$7.58

10x

Oil seal

619230031

$18.63

10y

FLANGED SCREW 10.9 DTM M6X20 GRIP - Call your local BRP dealership

619230076

Unavailable

10z

Allen Screw M8 x 10

619230037

$5.72

10aa

Allen Screw M10 x 16

619230038

$3.81

10ab

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

10ac

Seal Ring

619230047

$3.81
