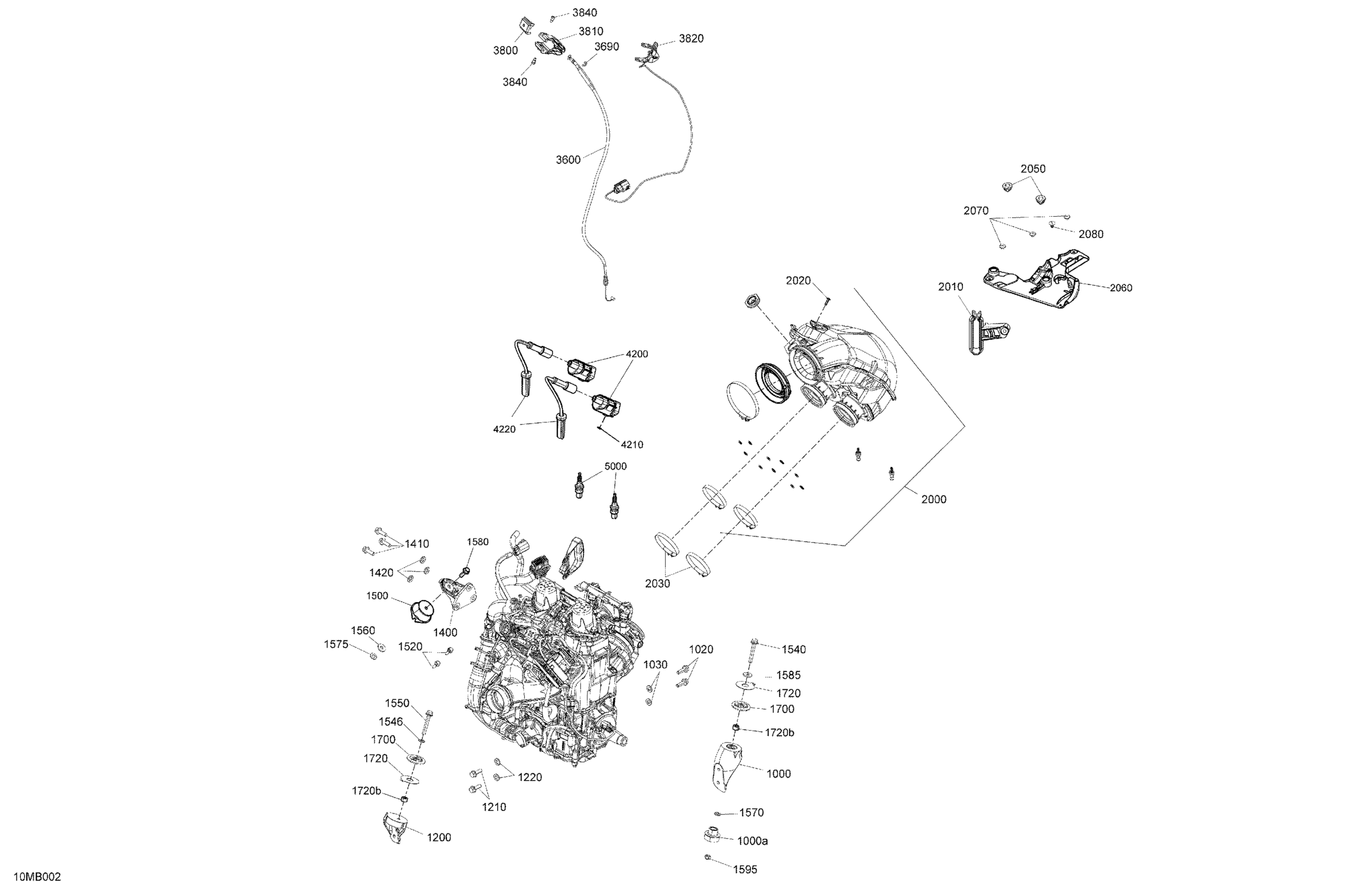

Ski-Doo SKANDIC WT 600 EFI - 2022 Engine - System Diagram

#

Description
Price

1000

Rear PTO Support Ass'y | Includes 1000 to 1000b

512061517

$76.49

1000a

Vibration Damper

512061516

$61.99

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1030

Conical Spring Washer M8

250200146

$1.01

1200

Front PTO Support

512061025

$31.99

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1220

Conical Spring Washer M8

250200146

$1.01

1400

MAG Support

512061027

$38.99

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1420

Conical Spring Washer M8

250200146

$1.01

1500

Rubber Mount

512060729

$65.99

1520

Hex. Flange Screw M6 X 16

250001062

$1.57

1540

Hex. Flange Screw M8 X 55

207585544

$1.69

1546

Conical Spring Washer M8

250200146

$1.01

1550

Hex. Flange Screw M8 X 55

207585544

$1.69

1560

Yellow, Washer

503183200

$3.19

1570

Flat Washer With Teflon 8 mm

250200008

$3.80

1575

Conical Spring Washer M8

250200146

$1.01

1580

Hex. Flange Screw M8 X 25

207682544

$1.35

1585

Yellow, Washer

503183200

$3.19

1595

Hex. Elastic Stop Nut M8

232581414

$0.56

1700

Engine Stopper

512061137

$8.57

1720

Spacer | Includes 1720 to 1720b

512061300

$10.27

1720b

Spacer

512061198

$2.11

2000

Primary Chamber Ass'y | Includes 2000 to 2000h

508001255

$95.99

2010

Cable Guide

512061325

$0.99

2020

Torx-Truss Pt K40 X 16

250000759

$2.11

2030

GEMI Clamp

293650212

$7.65

2050

Rubber Cap

420201630

$4.44

2060

Airbox Support

512061357

$4.19

2070

Pop Rivet 3/16"

293150103

$0.55

2080

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3600

Throttle Cable

512061442

$65.49

3690

Circlip

414274500

$0.90

3800

Upper Housing

512060859

$8.89

3810

Lower Housing

512060860

$17.53

3820

Throttle Ass'y

512061266

$124.99

3840

Flange Screw M5x12

250000991

$7.51

4200

Ignition Coil

512061358

$104.99

4210

Push Nut

389804300

$0.53

4220

Spark Plug Cable Ass'y

512061631

$27.49

5000

Spark Plug NGK BPR8ES

415130429

$4.23
