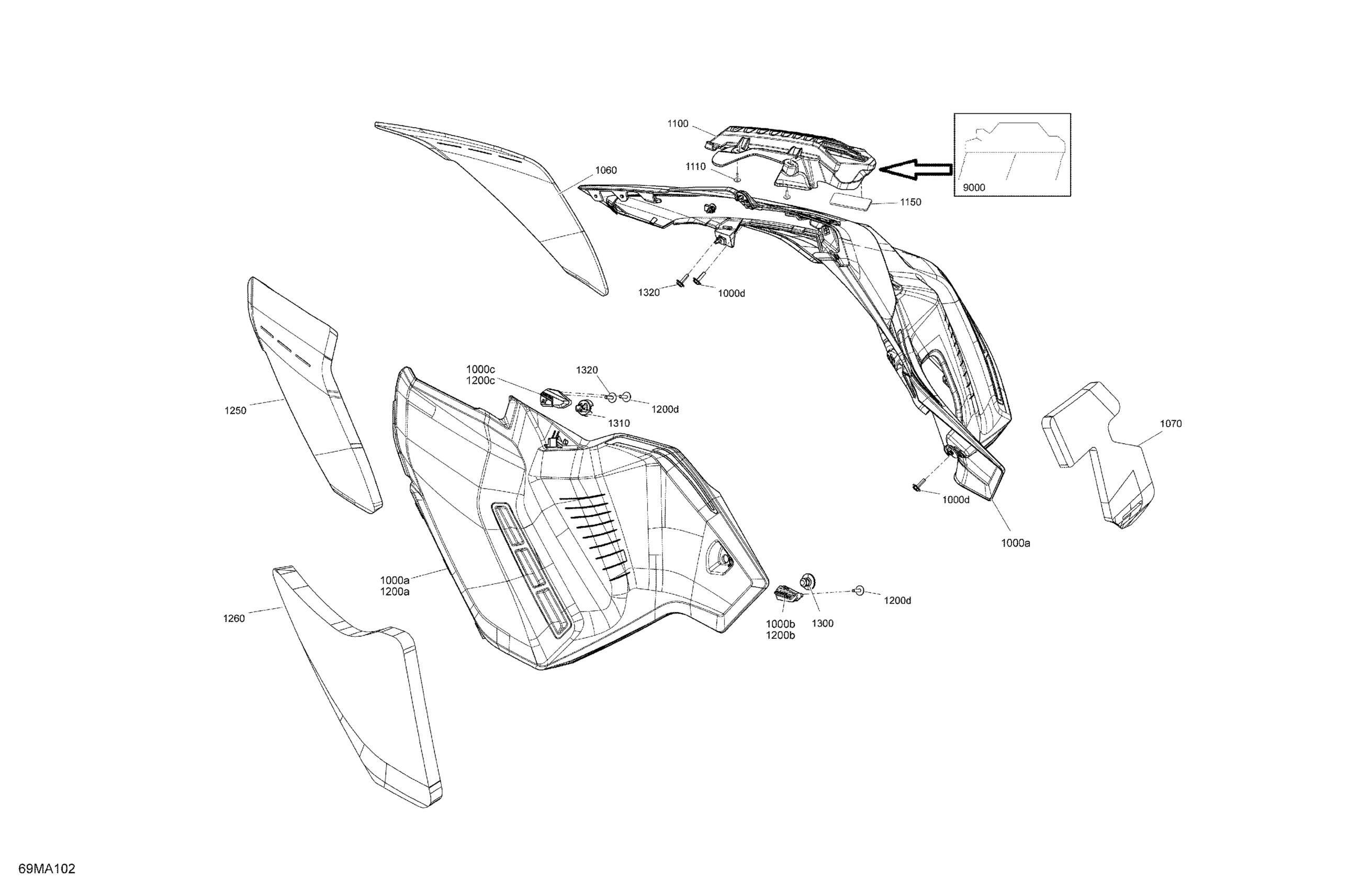

Ski-Doo 002 - SKANDIC WT 600 EFI - North America, 2021 07- Body - Side Panels Diagram

Description

Price

1000a

Deep Black, RH Panel

517306298

$184.99

1000b

RH Rear Latch

517305773

$18.49

1000c

RH Front Latch

517305979

$16.79

1000d

Screw M4 X 16

250000725

$3.49

1060

RH Front Panel Foam

517306497

$14.49

1070

RH Rear Panel Foam

517306501

$14.49

1100

RH Hood Grille Ass'y

517308292

$81.99

1110

Screw M4 X 16

250000725

$3.49

1150

Rubber Sheet

517307700

$19.49

1200a

Deep Black, LH Panel

517307021

$184.99

1200b

LH Rear Latch

517305774

$18.49

1200c

LH Front Latch

517305980

$18.49

1200d

Screw M4 X 16

250000725

$3.49

1250

LH Front Panel Foam

517306498

$14.49

1260

LH Central Panel Foam

517306562

$14.49

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49

9000

Foil Kit | Not Shown

517308274

$4.39
