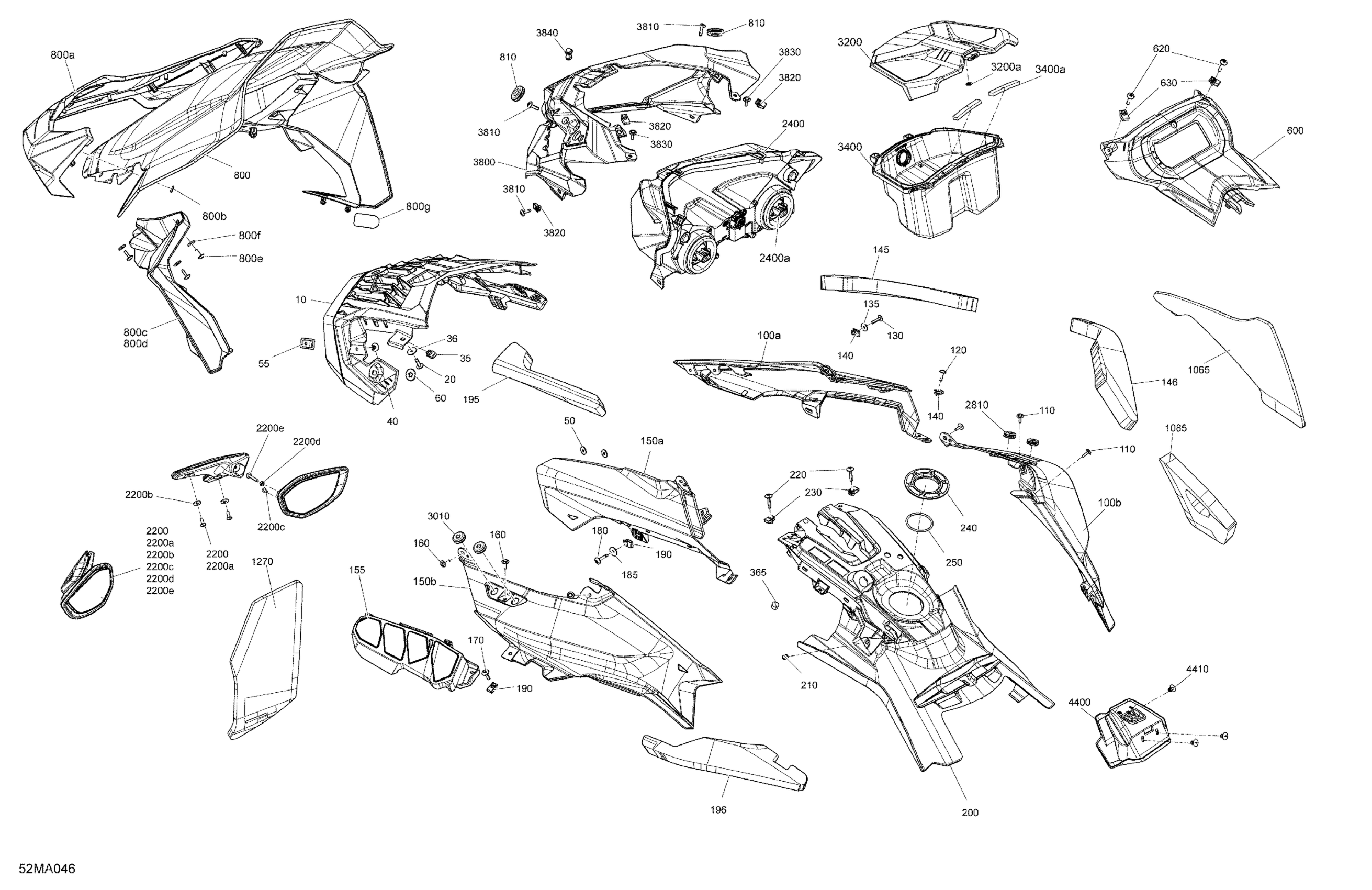

Ski-Doo SKANDIC WT 600 EFI - 2021 Body - Hood Diagram

#

Description
Price

10

Deep Black, Center Hood

517306523

$179.07

20

Torx Screw M5 X 20

250000528

$2.00

35

Panel Nut M5 X 0.8

250000958

$4.00

36

Washer

250200166

$2.00

40

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

50

Washer

517124300

$0.18

55

Rivet Plate

517305109

$4.52

60

Push Nut

508000853

$1.87

100a

RH Front Hood | Model Can-Am Red

517306777

$191.76

100b

RH Rear Hood | Model Can-Am Red

517306778

$191.76

110

Screw M4 X 16

250000725

$3.30

120

Torx Screw M5 X 20

250000528

$2.00

130

Torx Screw M5 X 26

250000587

$4.15

135

Washer

250200166

$2.00

140

Panel Nut M5 X 0.8

250000958

$4.00

145

RH Front Hood Foam

517305763

$11.19

146

RH Hood Foam

517306001

$11.19

150a

LH Front Hood | Model Can-Am Red

517306780

$191.76

150b

LH Rear Hood | Model Can-Am Red

517306781

$191.76

155

LH Hood Trim

517306690

$28.33

160

Screw M4 X 16

250000725

$3.30

170

Torx Screw M5 X 20

250000528

$2.00

180

Torx Screw M5 X 26

250000587

$4.15

185

Washer

250200166

$2.00

190

Panel Nut M5 X 0.8

250000958

$4.00

195

LH Front Hood Foam

517305764

$11.19

196

LH Hood Foam

517306002

$11.19

200

Deep Black, Rear Console

517307688

$176.09

210

Flange Elastic Nut M5

233251434

$1.91

220

Torx Screw M5 X 26

250000587

$4.15

230

Panel Nut M5 X 0.8

250000958

$4.00

240

Console Nut

517306602

$10.88

250

O-Ring

706002839

$0.96

365

Cap

572051500

$5.22

600

Gauge Support

517307675

$34.30

620

Torx Screw M5 X 26

250000587

$4.15

630

Panel Nut M5 X 0.8

250000958

$4.00

800

Windshield Ass'y 585MM | Includes 800 to 800j

517307327

$220.87

800a

Deep Black, Windshield Support

517306183

$42.99

800b

Push Nut

732610072

$1.97

800c

RH Air Deflector

517306184

$32.81

800d

LH Air Deflector

517306185

$32.81

800e

Screw M4 X 16

250000889

$2.82

800f

Rubber Washer 5 mm

250200024

$2.03

800g

Decal

516009227

Unavailable

810

Grommet

517303756

$3.61

1065

RH Central Panel Foam

517306561

$13.22

1085

RH Rear Panel Foam

517307293

$6.28

1270

LH Rear Panel Foam

517306499

$13.22

2200

Rear-View Mirror Kit | Includes 2200 to 2200u

517309198

$110.42

2200a

Torx Screw M5 X 14

250000742

$1.37

2200b

Rubber Washer 5 mm

250200024

$2.03

2200c

Torx Truss Screw K40 X 12

250000577

$2.00

2200d

Elastic Stop Nut M5

232551414

$0.82

2200e

Torx Screw Nylon

250000732

$2.00

2400

Headlamp | Includes 2400 to 2400a

517305752

$412.66

2400a

Bulb

415130081

$38.78

2810

Grommet

517307161

$2.55

3010

Grommet

517307161

$2.55

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$17.88

3200a

Push Nut

732610072

$1.97

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$17.88

3400a

Seal Joint

517305157

$2.21

3800

Headlamp Fairing

517306301

$71.61

3810

Torx Screw M5 X 20

250000528

$2.00

3820

Panel Nut M5 X 0.8

250000958

$4.00

3830

Screw M4 X 16

250000725

$3.30

3840

Tuflok Plastic Rivet

293150230

$1.39

4400

Shift Lever Grille

517306303

$12.31

4410

Pop Rivet 3/16" | DS 650 X

293150104

$0.99
