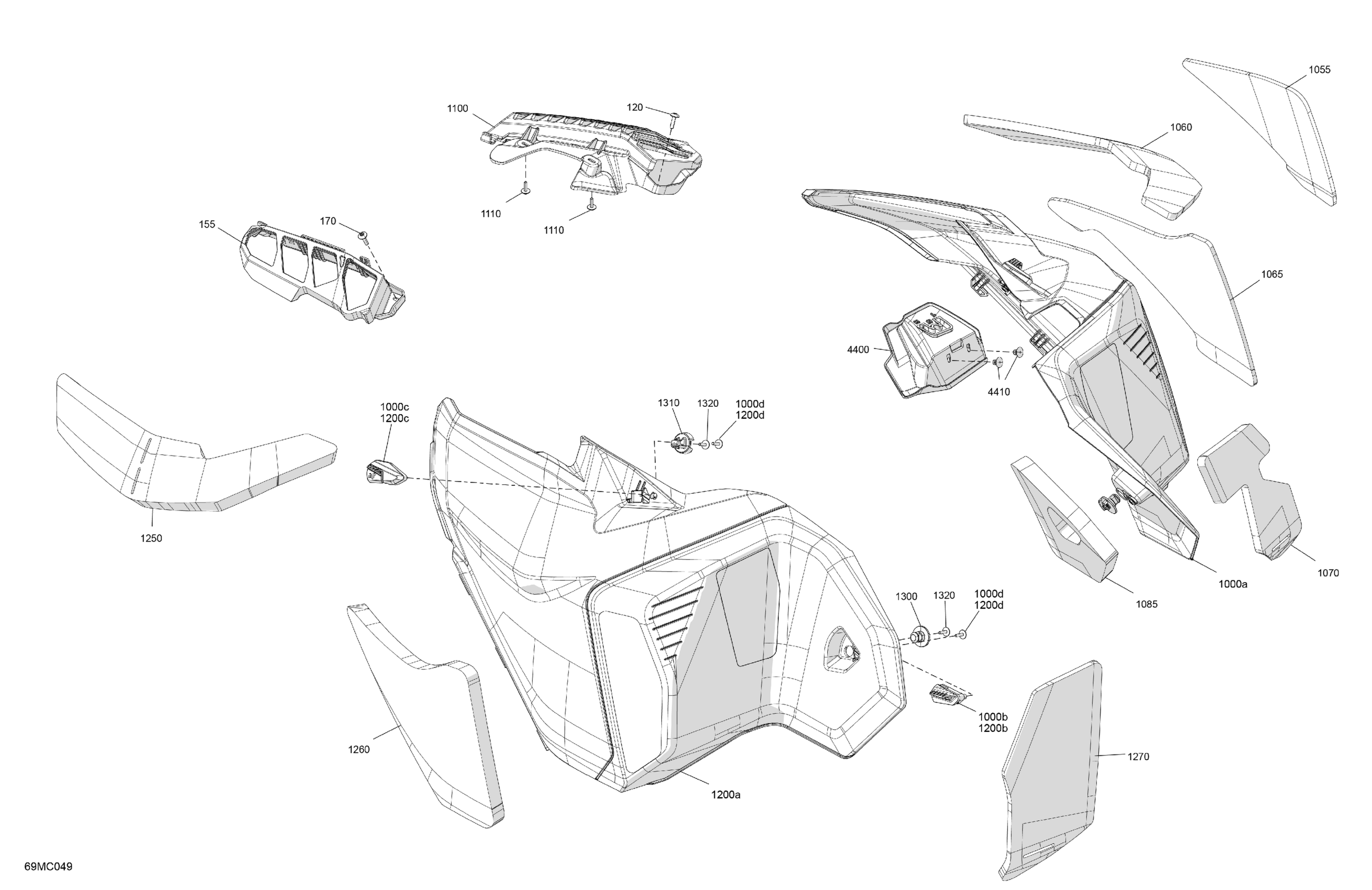

Ski-Doo SKANDIC LE 900 ACE - Europe, 2023 Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$2.11

155

LH Hood Trim

517306470

$26.49

170

Torx Screw M5 X 20

250000528

$2.11

1000a

Deep Black, RH Panel

517306298

$184.99

1000a

Deep Black, RH Panel

517306533

$184.99

1000b

RH Rear Latch

517305773

$18.49

1000c

RH Front Latch

517305979

$16.79

1000d

Screw M4 X 16

250000725

$3.49

1055

Foam

517306846

$4.69

1060

RH Front Panel Foam

517306497

$14.49

1065

RH Central Panel Foam

517306561

$14.49

1070

RH Rear Panel Foam

517306501

$14.49

1085

RH Rear Panel Foam

517307293

$8.29

1100

RH Hood Grille Ass'y

517308292

$81.99

1110

Screw M4 X 16

250000725

$3.49

1200a

Deep Black, LH Panel

517307021

$184.99

1200b

LH Rear Latch

517305774

$18.49

1200c

LH Front Latch

517305980

$18.49

1200d

Screw M4 X 16

250000725

$3.49

1250

LH Front Panel Foam

517306498

$14.49

1260

LH Central Panel Foam

517306562

$14.49

1270

LH Rear Panel Foam

517306499

$14.49

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49

4400

Shift Lever Grille

517306303

$14.99

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
