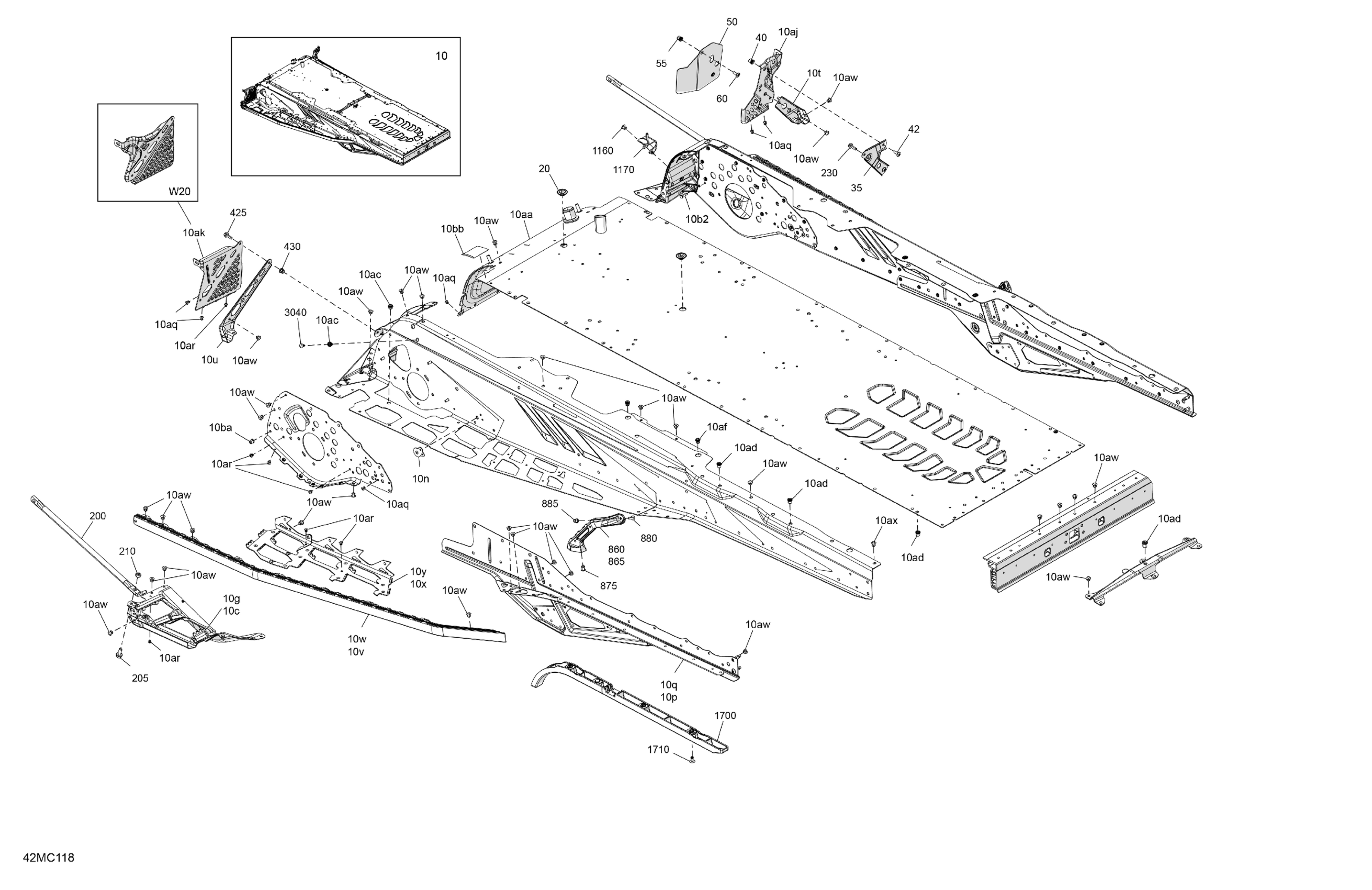

Ski-Doo SKANDIC LE 900 ACE - Europe, 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154" | Includes 10 to 10ax

518334282

Unavailable

10

Deep Black, Chassis Tunnel Module 154" | Includes 10 to 10bb

518334283

$2,911.16

10b2

Clinch Stud M6 X 20

250300027

$1.87

10c

Deep Black, RH Footrest Reinforcement

518332803

$77.58

10g

Deep Black, LH Footrest Reinforcement

518332802

$16.39

10n

Front Suspension Arm Reinforcement

518335959

$3.73

10p

RH Rear Suspension Support

518333792

$99.22

10q

LH Rear Suspension Support

518333791

$99.22

10t

RH Footrest Reinforcement

518329789

$17.88

10u

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10v

RH Roller

518329648

$175.34

10w

LH Roller

518328452

$175.34

10x

RH Tunnel Liner

518329646

$32.06

10y

LH Tunnel Liner

518329647

$32.06

10aa

Radiator Tunnel 154

518335121

$579.82

10aa

Radiator Tunnel Ass'y 154

518332622

$672.36

10ac

Clinch Nut M6 Hexsert

605636003

$4.00

10ad

Insert

293450275

$11.36

10af

Clinch Nut M6 Hexsert

605636003

$4.00

10aj

RH Footrest

518331822

$22.36

10ak

LH Footrest

518332977

$41.01

10ak

LH Footrest

518332978

$39.52

10aq

Avex Rivet

390909100

$0.28

10ar

Avex Rivet

390909200

$0.28

10aw

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10ax

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10ba

Collar Huck Magna-Grip 6.4

293150149

$0.36

10bb

Aluminum foil

44110

Unavailable

20

Black, Plug

293730052

$6.18

35

RH Stirrup Reinforcement

518331727

$17.88

40

Insert

293450275

$11.36

42

Torx Head Screw M6 X 16

250000717

$2.00

50

Heat Shield

518331823

$7.19

55

Insert

293450275

$11.36

60

Torx Head Screw M6 X 16

250000717

$2.00

200

Lateral Reinforcement

518332541

$17.88

205

Hex. Flange Screw M8 X 20

207682044

$1.06

210

Hex. Nut M8

232081414

$0.69

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 X 20

207562056

$2.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

860

Deep Black LH Rear Footrest Reinforcement

518330858

$16.39

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$16.39

875

Rivet Ornit 6,5 X 16.5

293150267

$1.88

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

885

Collar Huck Magna-Grip 6.4

293150149

$0.36

1160

Rivet Ornit 6,5 X 12.5

293150265

$1.88

1170

Muffler Support Ass'y

518334031

$19.37

1700

Front Protector

518329982

$17.13

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$1.87
