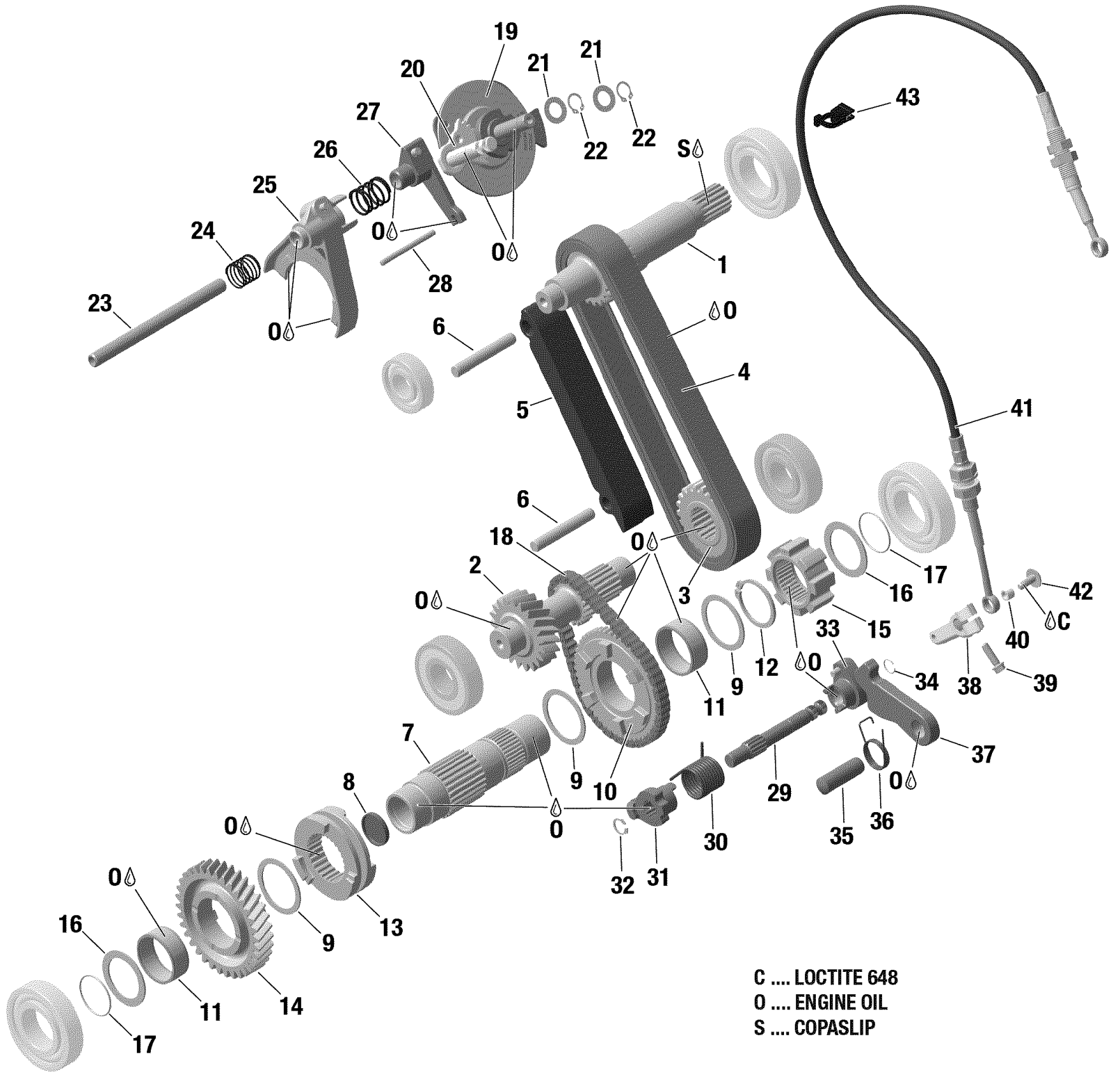

Can-Am On-Road 002 - RYKER STD 900 ACE, 2019 05- Gearbox - Components - 900 ACE Diagram

#

Description
Price

1

Counter Shaft

420637332

$206.49

2>3

Intermediate Shaft Ass'y

420637727

$206.49

4

Hyvo Chaine

420297087

$119.99

5

Chain Guide

420936030

$15.81

6

Needle Pin

420229475

$14.83

7>17

Main Shaft Ass'y

420637819

$989.99

8

Cover

420427150

$27.49

9

Thrust Washer

420244381

$7.09

10

Gear Pinion 49T

420637841

$85.99

11

Needle Cage

420632892

$19.49

12

Retaining Ring

420845656

$6.24

13

Main Shaft Ass'y

420637819

$989.99

14

Main Shaft Ass'y

420637819

$989.99

15

Gear

420634946

$51.99

16

Thrust Washer

420927407

$7.09

17

O-Ring

420950845

$0.76

18

Chain

420898532

$98.49

19

Shift Gate

420637939

$79.49

20

Shift shaft Ass'y

420637975

$98.99

21

Thrust Washer

420827261

$7.51

22

Retaining Ring

420945470

$5.50

23

Fork Spindle

420637920

$31.99

24

Spring

420638070

Unavailable

25

Gearshift Fork

420637906

$63.99

26

Spring

420638075

$3.98

27

Shifting Block

420637916

$26.49

28

Dowel Pin

420354435

$0.93

29

Shift Shaft

420637860

$41.49

30

Hairpin Spring

420638171

$13.24

31

Hub

420637880

$19.99

32

Retaining Ring

420945470

$5.50

33

Shift Cam Ass'y

420637875

$22.99

34

Snap Ring

420245440

$2.74

35

Dowel Pin

420220965

$6.99

36

Coil Spring

420638180

$7.83

37

Parking Lock Lever

420257635

$23.99

38

Shifting Lever

420848056

$42.99

39

Torx Flange Screw M6 X 20

420440207

$3.06

40

Sleeve

420647295

$7.93

41

Bowden Cable

420945895

$110.99

42

Torx Screw M6 X 16

420241529

$2.11

43

Cable Clamp 150mm

420951650

$4.44
