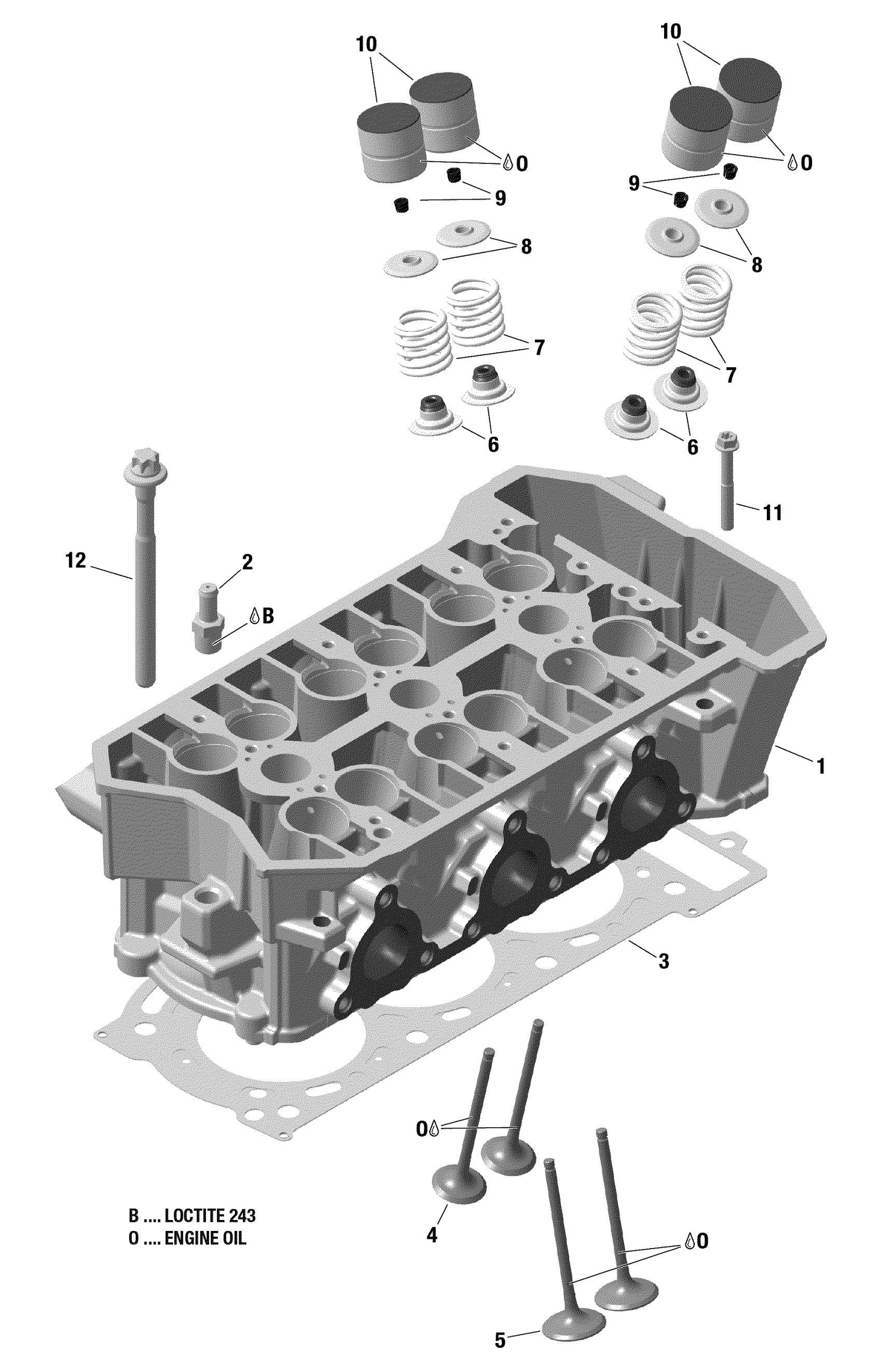

Can-Am RYKER STD 900 ACE, 2019 Engine - Cylinder Head - 900 ACE Diagram

#

Description
Price

1

Cylinder Head Ass'y

420213265

$830.49

2

Hose Nipple

420441420

$14.22

3

Cylinder Head Gasket

420431813

$45.49

4

Exhaust Valve 25MM This part replaces 420855141.

420855144

$41.49

5

Intake Valve 29MM

420855131

$22.49

6

Valve Stem Seal

420431671

$5.39

7

Valve Spring

420939540

$7.51

8

Valve Spring Retainer

420855150

$4.44

9

Cotter Valve

420254630

$1.01

10

Valve Lifter Bucket

420855165

$46.49

11

Torx Flange Screw M6 X 45

420440324

$0.98

12

Torx Flange Screw M9 X 113

420940945

$13.70
