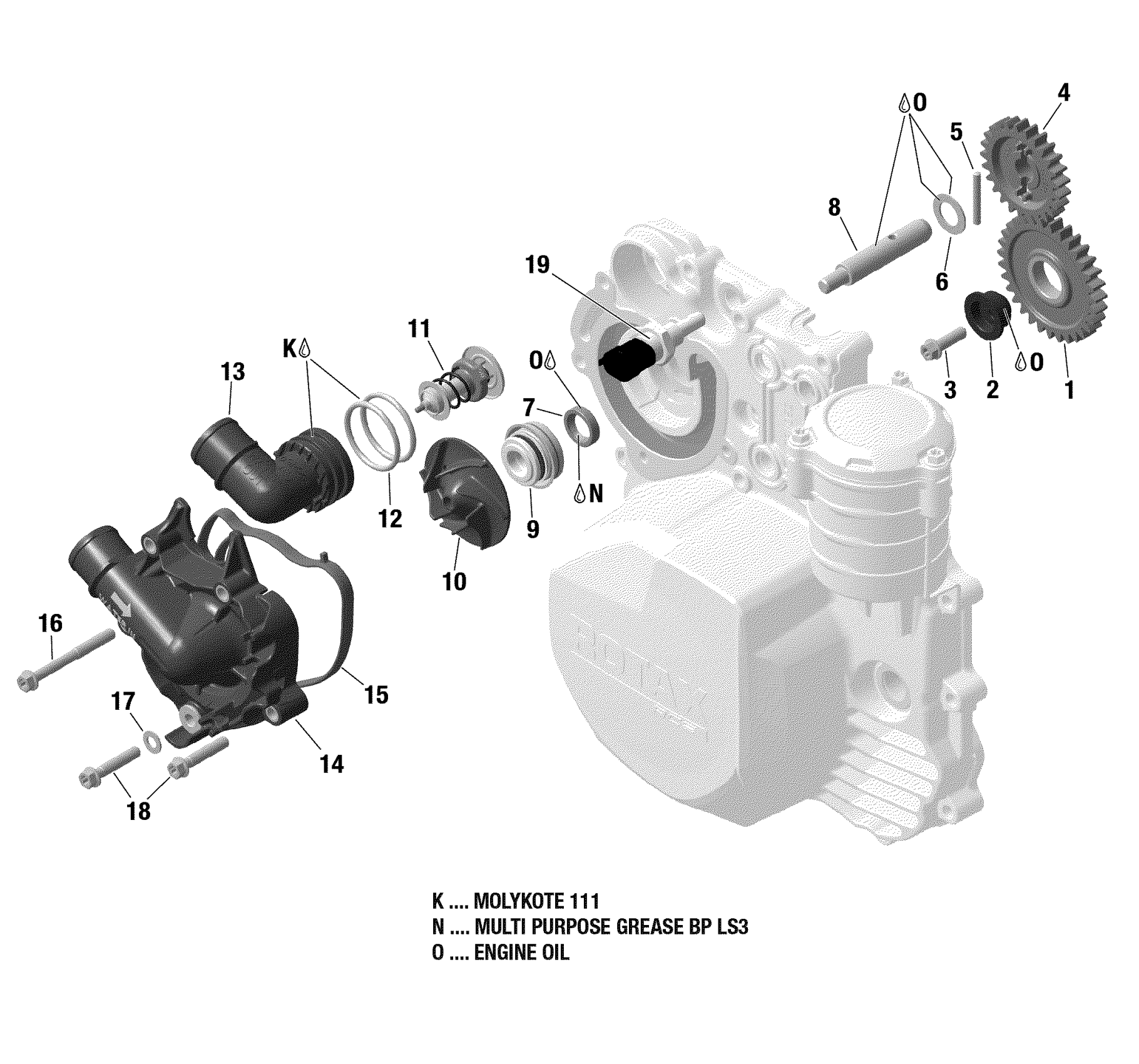

Can-Am RYKER STD 900 ACE, 2019 Cooling - Engine - 900 ACE Diagram

#

Description
Price

1

Idle Gear, 31 Teeth

420835067

$23.49

2

Spacer

420947394

$24.99

3

Torx Flange Screw M6 X 20

420440207

$3.06

4

Water Pump Gear

420835230

$7.65

5

Needle Pin

420232431

$4.39

6

Thrust Washer

420827261

$7.51

7

Oil Seal

420931802

$7.65

8

Waterpump Shaft

420820150

$25.99

9

Seal

420850946

$33.99

10

Water Impeller

420822750

$19.49

11

Thermostat 80°

420822651

$37.99

12

Water Pump Housing O-Ring

420950896

$11.59

13

Thermostat Cover

420922150

$8.57

14>15

Water Pump Housing

420922293

$71.99

15

Water Pump Housing Gasket

420431682

$19.49

16

Torx Flange Screw M6 X 55

420440702

$3.06

17

Sealing Washer

404146600

$2.97

18

Torx Flange Screw M6 X 30

420440647

$2.00

19

Temperature Sensor

278002895

$39.99
