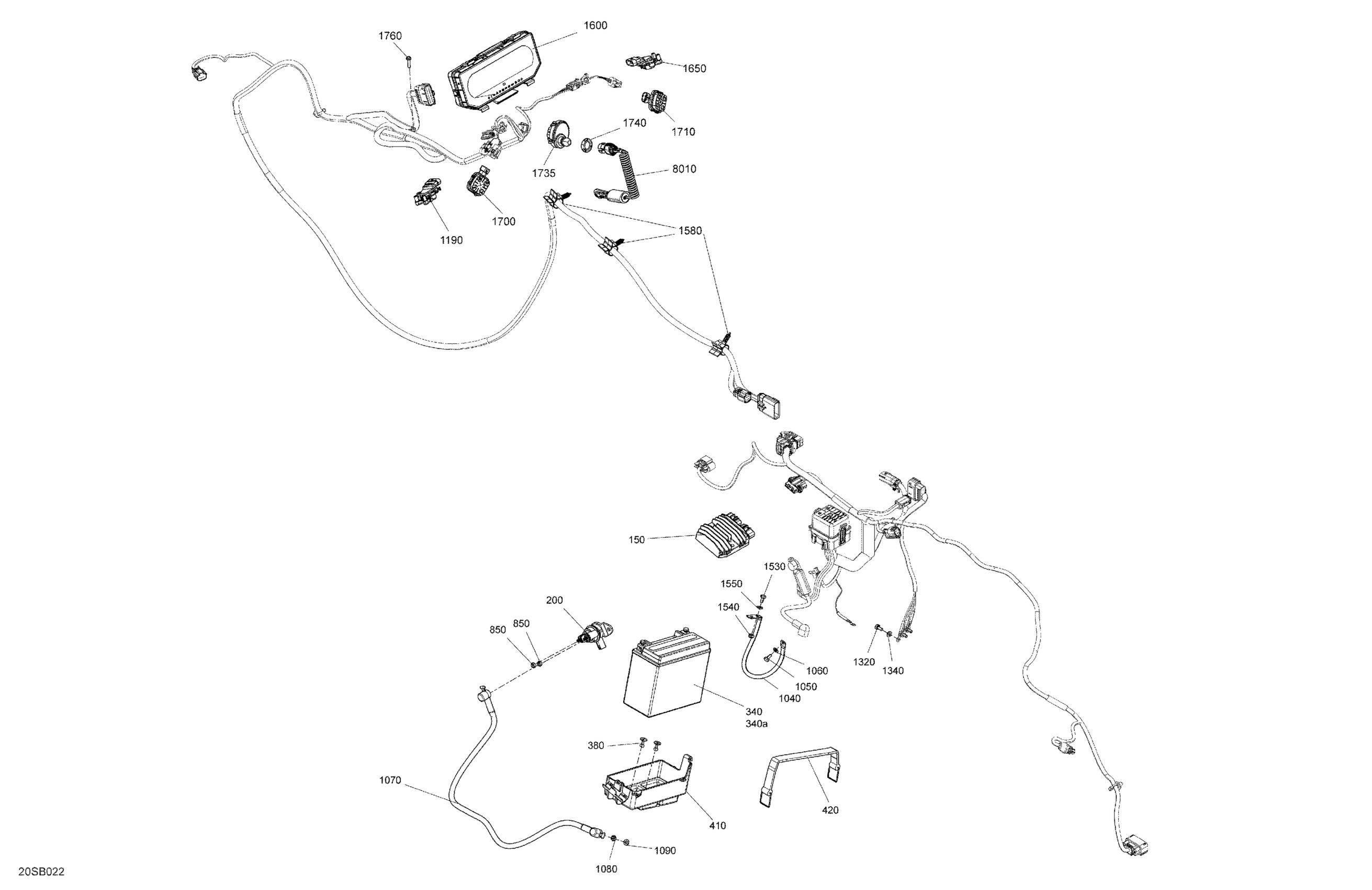

Sea-doo RXT XRS 300 - International, 2022 Electric - System - VIP Medium Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

340

Battery 12 Volt 18AH

296000449

$126.07

340a

Battery Bolt Kit

250000282

$2.95

380

Pop Rivet 3/16"

293150123

$3.43

410

Battery Support

278003473

$22.72

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$115.35

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1580

Retainer

278003564

$6.92

1600

Full Size Multifunction Mono Gauge

278003432

$766.12

1650

Throttle Position Sensor

278002283

$94.22

1700

LH Switch Keypad

278003726

$101.37

1710

RH Switch Keypad

278003474

$101.37

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

1740

Safety Nut (DESS Switch)

278002963

$2.72

1760

Hex. Screw 10-14 X 7/8”

211000023

$2.91

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
