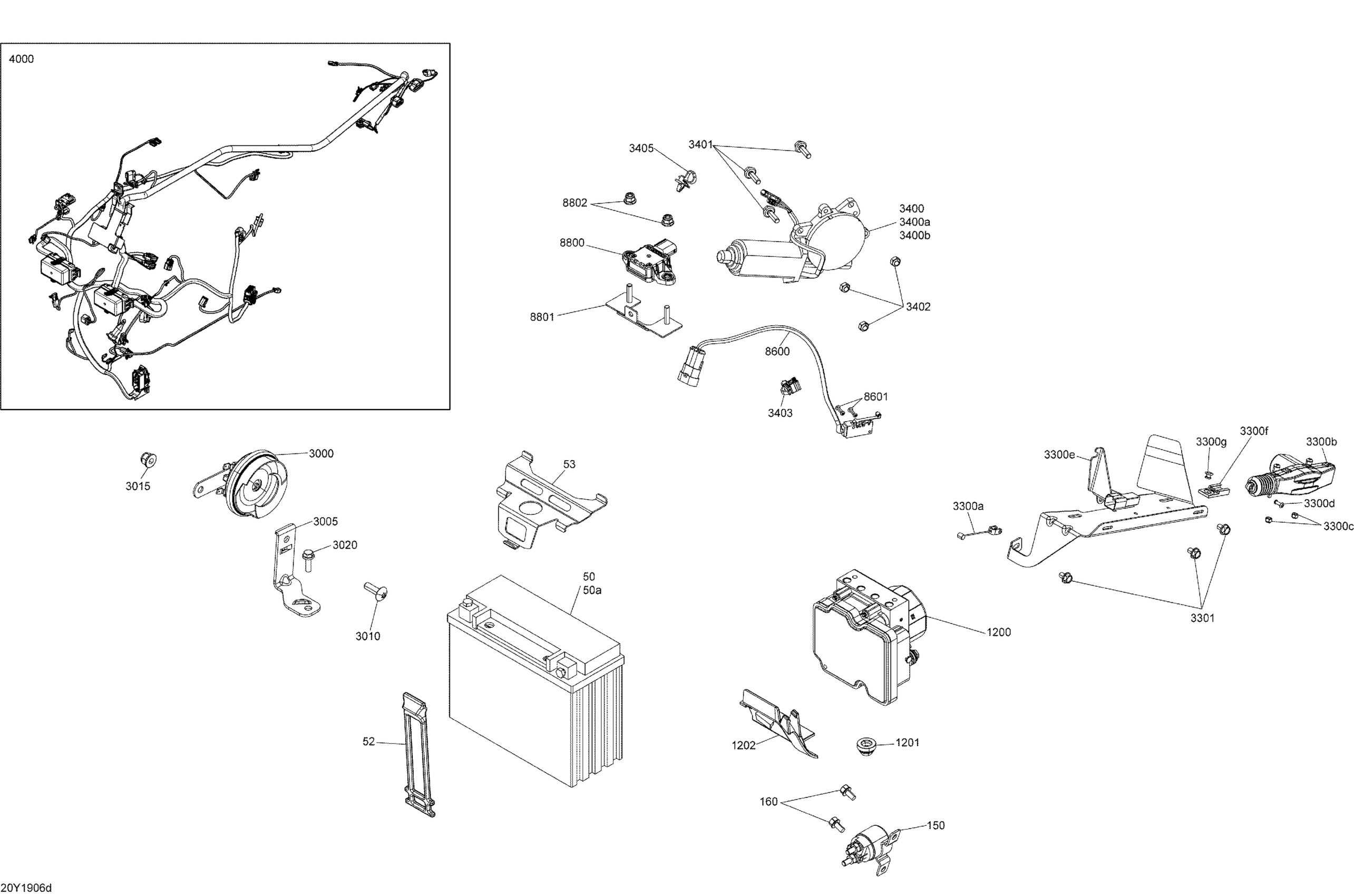

Can-Am RT STD SE6, 2019 Electrical System - Frame Diagram

#

Description
Price

50

Battery, 12 Volts, 21 Amperes

410922962

$194.99

50

Battery, 12 Volts, 21 Amperes

410922962

$194.99

50a

Battery Bolt Kit

250000282

$7.29

52

Latch

520000528

$7.69

53

Battery Holder

710002893

$17.49

150

Starter Relay

710007777

$48.49

160

Hex. Flange Screw M6 X 12

210261250

$1.90

1200

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

1201

Shock Damper

710003279

$10.49

1202

VCM Harness Protector

710003996

$2.79

3000

Horn

710004940

$29.49

3005

Horn Support

710005769

$15.99

3010

Torx Truss M8 X 25

250000874

$2.11

3015

Hex. Flange Elastic Nut M8

233281414

$1.47

3020

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

3300a

Reverse Cable

710002889

$31.99

3300b

Actuator

710011269

$64.99

3300c

Elastic Stop Nut M4

232541414

$0.58

3300d

Pop Rivet 5/32

390403000

$0.40

3300e

Reverse Actuator Support

710005642

$30.99

3300f

Clip

270000141

$11.49

3300g

Pop Rivet 3/16"

390402400

$0.35

3301

Hex. Forming Screw M6 X 10

210261050

$1.69

3400

Actuator Motor

710007256

$227.99

3400a

Insulation Sheath

278000231

$5.08

3400b

Male Terminal

278000230

$4.39

3401

Hex. Flange Screw M6 X 20

207662054

$1.01

3402

Elastic Stop Nut M6

232561434

$1.99

3403

Tie-Rap Clip

710002896

$4.39

3405

Tie-Rap 173 mm

293750009

$1.04

4000

Wiring Harness Main

710006041

$969.99

8600

Brake Pressure Switch Ass'y

710001379

$43.49

8601

Pop Rivet

293150150

$2.40

8800

Yaw Rate Sensor

710005658

$179.99

8801

YRS Holder

710003494

$15.99

8802

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
